Description:

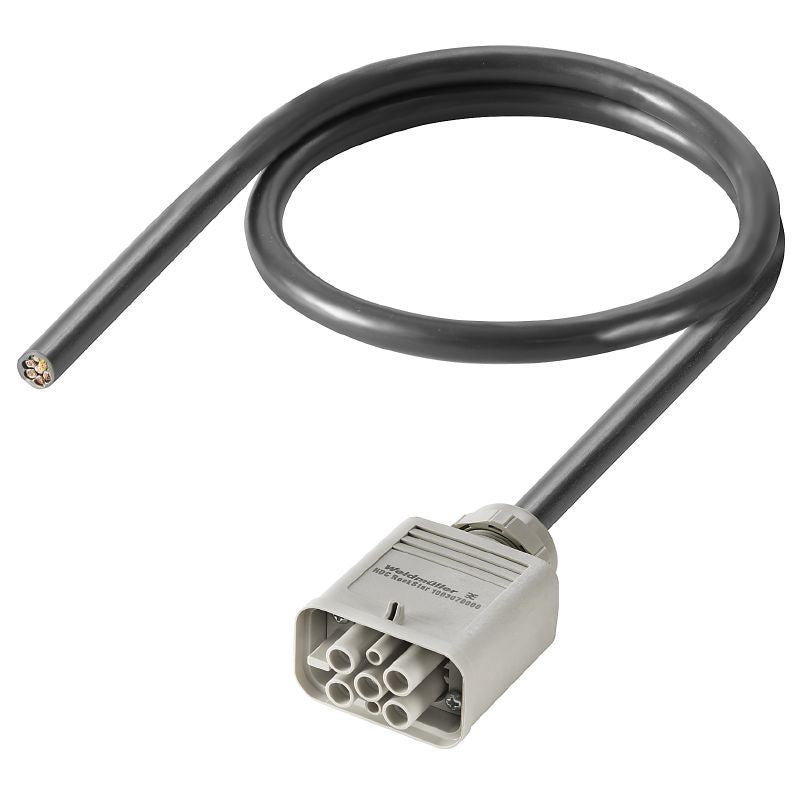

Introducing a robust connector assembly crafted for durability, featuring a socket connector type specifically designed for compatibility with the Lapp ÖLFLEX CLASSIC 110 BK 7G25 or similar versions This non-shielded connector boasts 6 poles and is made from high-quality plastic, rated for a nominal voltage of 500 V Environmentally conscious, it meets RoHS compliance standards, making it a reliable choice for various applications.
Features and Benefits:
•IP65 protection degree.
•Bending radius for moving is 10 times the cable diameter.
•Bending radius for stationary use is 4 times the cable diameter.
•Temperature range for moving is between -15 °C to 70 °C and for stationary between -40 °C to 80 °C.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Connector description | Connector 1 |
| Cable entry | straight |
| Number of poles | 6 |
| Size | HQ |
| Type | Female |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 2.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G2.5 or similar |
| Number of wires | 7 |
| Outside diameter | 11.1 mm |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
| Approvals | RoHS |
| RoHS Compliance Status | Compliant with exemption |
| REACH SVHC | Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3 |
