Description:

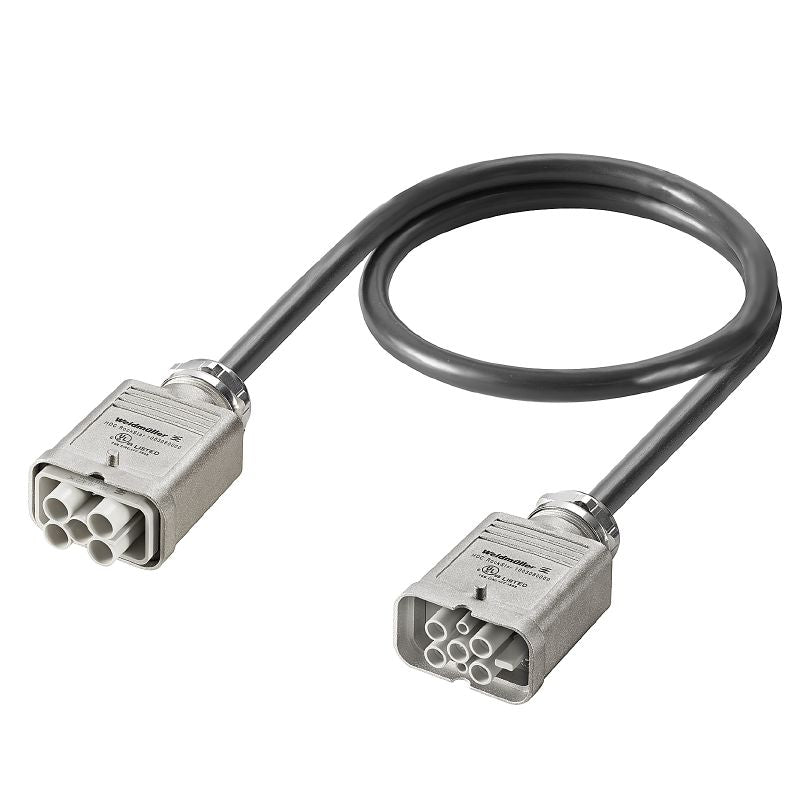

Discover the robust connector assembly designed for durability and performance This assembly comes with pin and socket connectors crafted from Helukabel JZ-500-C black 7G25 or equivalent materials It features a six-pole configuration and includes shielding for enhanced reliability Weighing in at 1,20031 grams, this assembly adheres to RoHS regulations, complete with applicable exemptions The connectors are engineered with straight cable entries and constructed from sturdy die-cast zinc, falling under the HQ series, size 6 category.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Max working temperature of 80 °C.
•IP65 protection degree.
•Halogen-free insulation.
•Straight cable entry for ease of installation.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 2.5 mm² |
| Insulation | PVC |
| Line type | Helukabel JZ-500-C black 7G2.5 or similar |
| Number of wires | 7 |
| Outside diameter | 12.1 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -10 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
