Description:

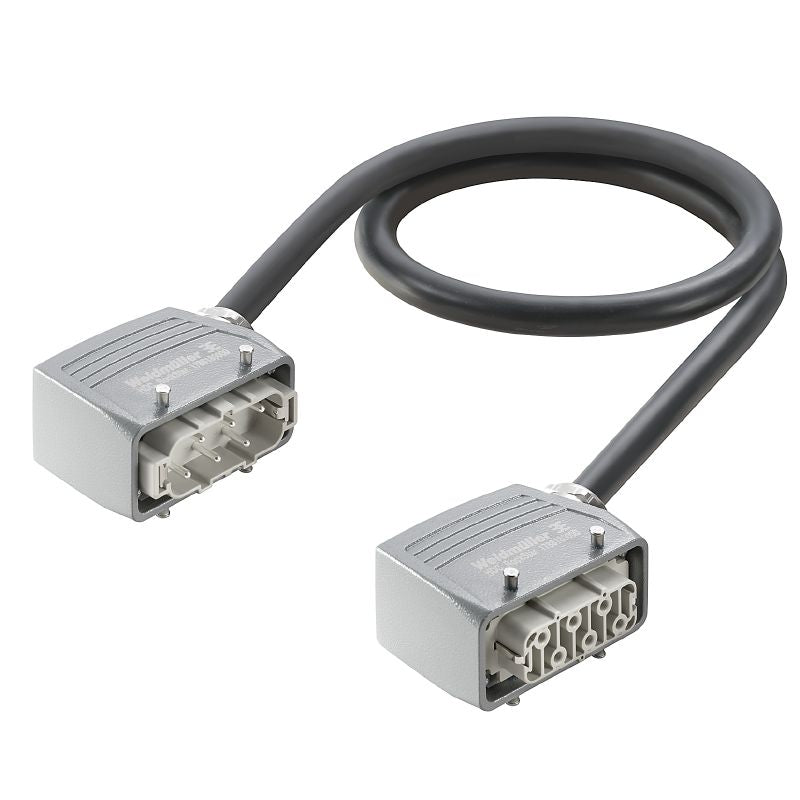

Introducing a robust connector assembly designed for demanding applications, featuring a pin and socket configuration with 6 poles The model number for this item is CH-HJAC-HJAD-06-0100-AC, and it adheres to RoHS standards for environmental safety Capable of handling a nominal voltage of 400V, this assembly boasts a durable construction with diecast aluminum components, complemented by an angled cable entry for added convenience.
It operates efficiently in a temperature range of -40 °C to 80 °C, with a maximum temperature limit of 80 °C, making it suitable for varied environments.
Features and Benefits:
•RoHS compliant with exemption.
•Pin arrangement is 1:1 with numbered cores.
•Protection degree rated at IP65.
•Bending radius for moving applications is 7.5 times the cable diameter.
•Bending radius for stationary applications is 4 times the cable diameter.
Specifications:
| Number of poles | 6 |
| Cable length | 1 m |
| Core cross-section | 4 mm² |
| Outside diameter | 15.8 mm |
| Insulation | PVC |
| Sheath material | PVC |
| Sheathing color | black |
| Temperature range (moving, max) | 80 °C |
| Temperature range (moving, min) | -15 °C |
| Temperature range (stationary, max) | 80 °C |
| Temperature range (stationary, min) | -40 °C |
