2817650060 - 0.6m Smart Metering Cable, 18.5A Capacity, IP20 Protection (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

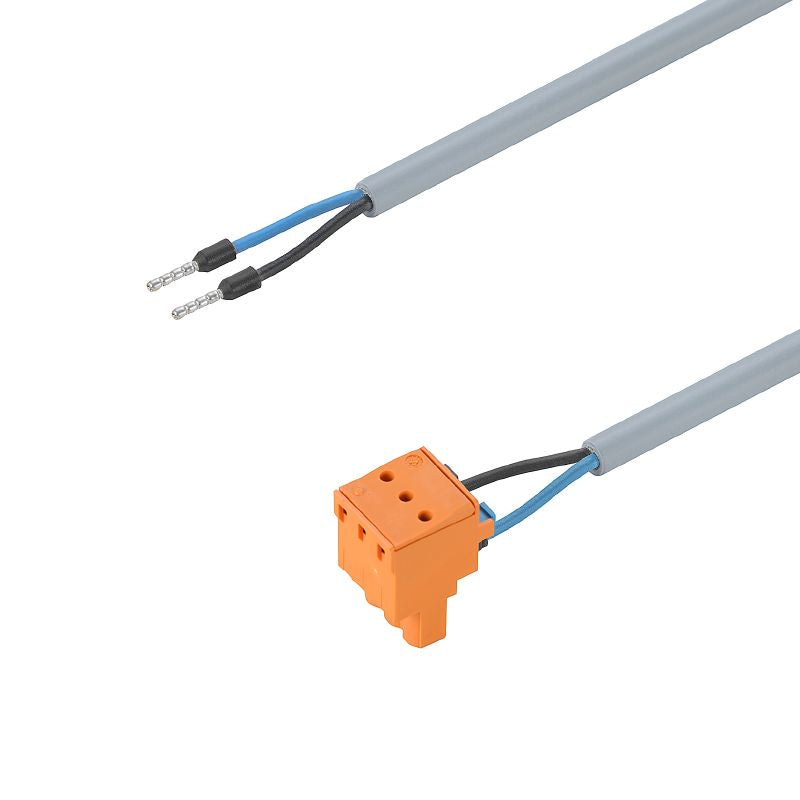

Introducing a versatile smart metering cable assembly, complete with a socket connector for a variety of uses This assembly operates at a nominal voltage of 600 V and is capable of handling a current of 185 A With an IP20 protection rating, it offers reliable performance and features a rated impulse withstand voltage of 6 kV Constructed from high-quality PUR/TPE material, this cable measures 06 meters in length, making it suitable for numerous applications.

Features and Benefits:

•Connector 1 is a female connector with an angled cable entry.

•Connector 2 is a straight connector with a single pole.

•Net weight of the assembly is 40.8 g.

•Bending radius is 15 x cable diameter when moving and 10 x cable diameter for stationary use.

•The sheathing color of the cable is grey.

•Temperature range for moving is from -25 °C to 90 °C and for stationary use from -40 °C to 90 °C.

•Compliant with RoHS without exemption.

Specifications:
