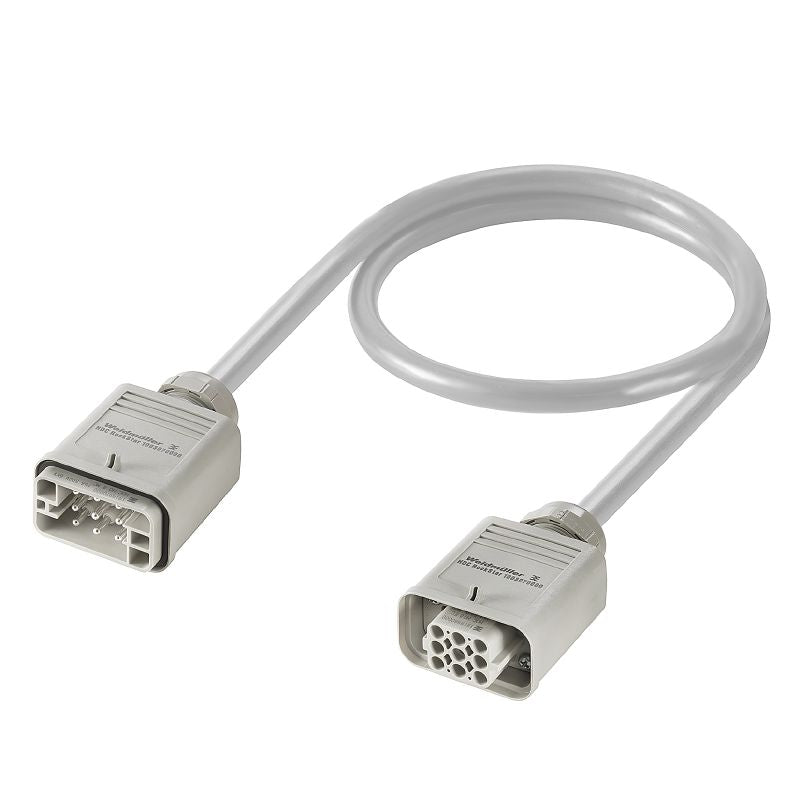

2712470200 - 2m Heavy-Duty Connector Assembly, 8 Poles, 500V Rated
2712470200 - 2m Heavy-Duty Connector Assembly, 8 Poles, 500V Rated
SKU: SKU: 2712470200 Download PDF
- 2712470200 - 2m Heavy-Duty Connector Assembly, 8 Poles, 500V Rated
- 2712470200 - 2m Heavy-Duty Connector Assembly, 8 Poles, 500V Rated
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Upgrade your electrical connections with this heavy-duty connector assembly, featuring both male and female socket connectors crafted for reliable performance Designed with 8 poles, this assembly is housed in durable plastic and offers a straight cable entry for straightforward installation Rated for a nominal voltage of 500 V, it meets RoHS compliance standards With a generous cable length of 2 meters, it's suitable for both mobile and stationary uses, operating effectively within a temperature range of -40 °C to 80 °C.
Enhanced with PVC insulation and an unshielded design, this assembly ensures dependable functionality across various conditions.
Features and Benefits:
•Compliant with RoHS exemption.
•Bend radius of 7.5 x cable diameter for moving applications.
•Bend radius of 4 x cable diameter for stationary applications.
•Outer diameter of 14.8 mm.
•Number of wires: 10.
•Sheathing color: grey.
Specifications:
| Limit temperature: | -40 °C ... 80 °C |
| Protection degree: | IP65 |
| core cross-section: | 2.5 mm² |
| Insulation: | PVC |
| Sheath material: | PVC |
| Line type: | Helukabel JZ-500 10G2.5 or similar |
| Cable length: | 2 m |
| Halogen: | Yes |
| Temperature range, moving, max.: | 80 °C |
| Temperature range, moving, min.: | -15 °C |
| Temperature range, stationary, max.: | 80 °C |
| Temperature range, stationary, min.: | -40 |
