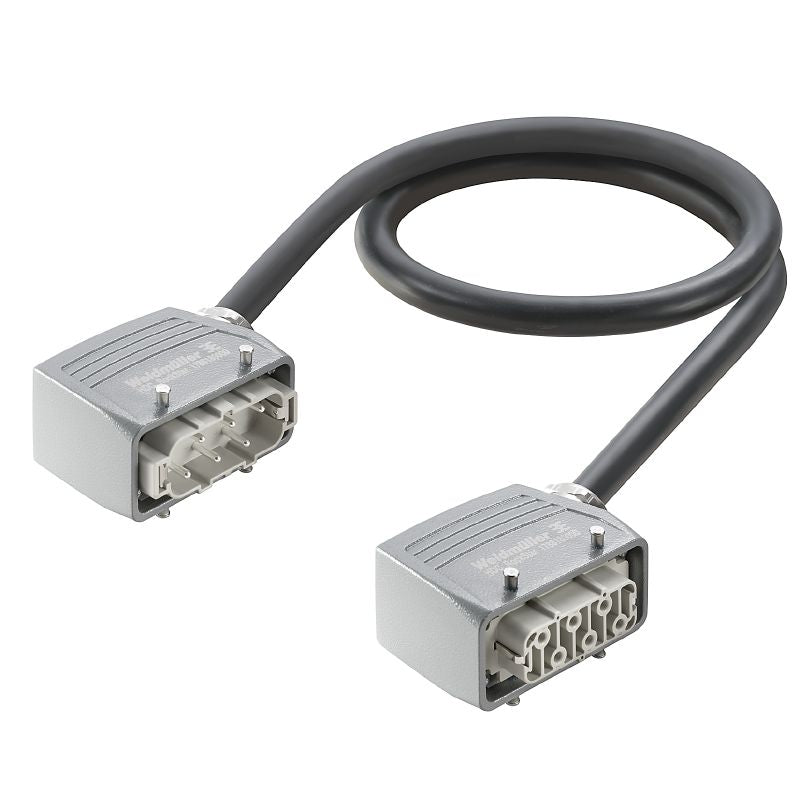

2712320500 - IP65 5m Heavy Duty Connector Assembly, -40°C to 80°C
2712320500 - IP65 5m Heavy Duty Connector Assembly, -40°C to 80°C
SKU: SKU: 2712320500 Download PDF
- 2712320500 - IP65 5m Heavy Duty Connector Assembly, -40°C to 80°C
- 2712320500 - IP65 5m Heavy Duty Connector Assembly, -40°C to 80°C
Couldn't load pickup availability
Description:
Introducing a robust connector assembly designed for dependable performance in various environments This assembly features a male and female pin and socket configuration, ensuring secure connectivity It operates effectively within a temperature range of -40 °C to 80 °C and complies with RoHS standards With six poles and an IP65 rating, this connector is ideal for diverse industrial settings The housing is crafted from durable diecast aluminum, while the insulation and sheathing are made from PVC, offering both resilience and flexibility for both dynamic and stationary applications.
Features and Benefits:
•IP65 protection degree for reliable use in harsh environments.
•Suitable for applications requiring six-pole connections.
•Angle cable entry for easier installation and handling.
•Diecast aluminum housing ensures durability.
•RoHS compliant with exemption for lead and potassium perfluorobutane sulfonate.
Specifications:
| Nominal voltage | 400 V |
| Number of poles | 6 |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 4 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Helukabel JZ-600 7G4 or similar |
| Number of wires | 7 |
| Outside diameter | 15.8 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
