2712420500 - 5m Female Connector, IP65, -40 to 80°C Temperature Range
2712420500 - 5m Female Connector, IP65, -40 to 80°C Temperature Range
SKU: SKU: 2712420500 Download PDF
- 2712420500 - 5m Female Connector, IP65, -40 to 80°C Temperature Range
- 2712420500 - 5m Female Connector, IP65, -40 to 80°C Temperature Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

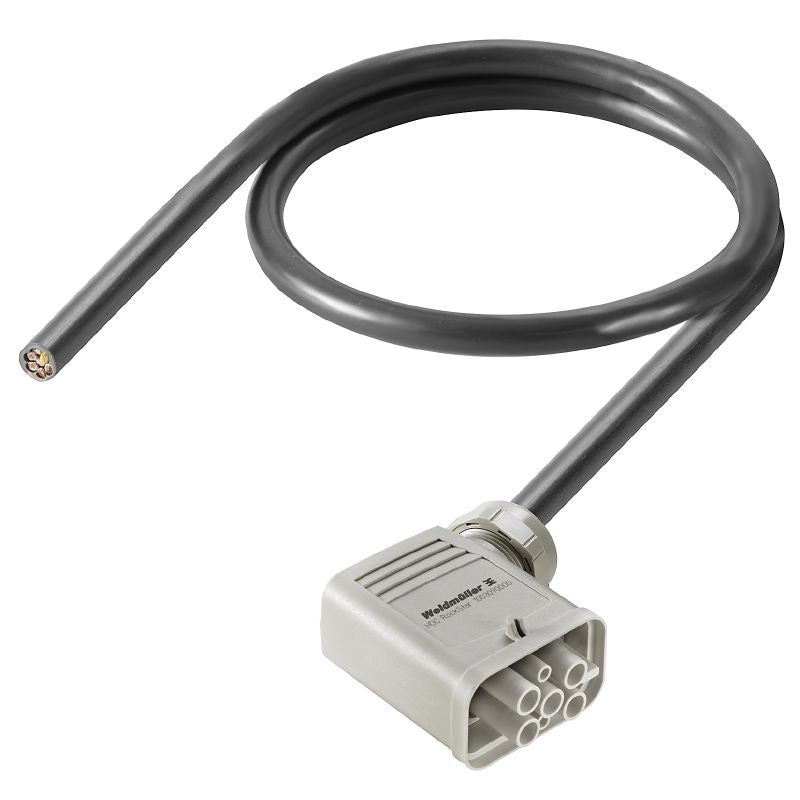

This robust socket connector assembly is built to meet the standards similar to the Lapp ÖLFLEX CLASSIC 110 BK 7G25 It boasts 6 poles and is designed with an IP65 protection rating, making it suitable for a variety of environments The operating temperature range extends from -40 °C to 80 °C With a length of 5 meters, the cable has a core cross-section of 25 mm² and an outer diameter of 111 mm This female connector is crafted from durable plastic and is finished with black PVC insulation and sheathing.
Additionally, it complies with RoHS regulations for safety and environmental standards.
Features and Benefits:
•Angled cable entry.
•Protection degree: IP65.
•6 poles with numbered cores.
•Halogen-free materials.
•PVC sheath material.
Specifications:
| Nominal voltage | 500 V |
| Number of wires | 7 |
| Temperature range, moving, max | 70 °C |
| Temperature range, moving, min | -15 °C |
| Temperature range, stationary, max | 80 °C |
| Temperature range, stationary, min | -40 °C |
