Description:

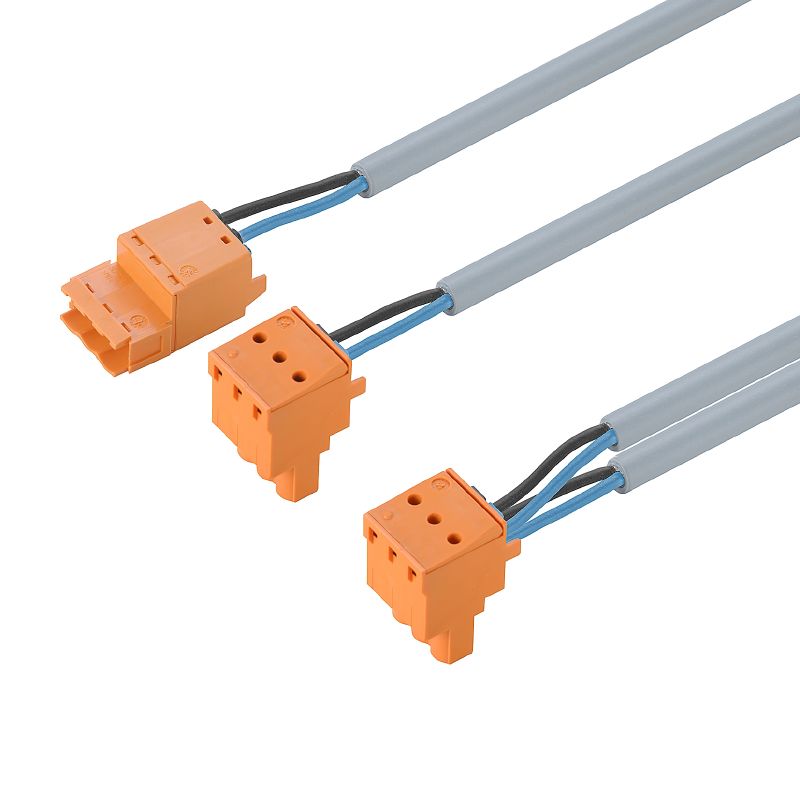

Introducing our Smart Metering Cable Assemblies, expertly crafted for high-voltage uses with a capacity rating of 6 kV and a nominal current of 185 A This assembly features reliable pin and socket connectors, designed to meet IP20 standards and rated for 400 V With a cable length of 033 meters and a cylindrical outer diameter of approximately 64 mm, it is suitably compact for various applications Fully compliant with RoHS regulations, these assemblies contain no substances of very high concern (SVHC) exceeding the specified weight limit, guaranteeing a safe and environmentally friendly choice.
Features and Benefits:
•RoHS compliant.
•Nominal current of 18.5 A.
•Rated for 400 V.
•Bending radius for moving applications is 15 times the cable diameter.
•Bending radius for stationary applications is 10 times the cable diameter.
•Utilizes PUR/TPE material for durability.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 400 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.33 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Halogen | No |
| Insulation | PP |
| Line type | KB PUR US 2X1.5 GY XX 6KV |
| Number of wires | 2 |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Sheathing colour | grey |
| Shielded | No |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
