2775910080 - 0.8m Smart Metering Cable, IP20, 6kV Rated (Pack of 10)
2775910080 - 0.8m Smart Metering Cable, IP20, 6kV Rated (Pack of 10)
SKU: SKU: 2775910080 Download PDF
- 2775910080 - 0.8m Smart Metering Cable, IP20, 6kV Rated (Pack of 10)
- 2775910080 - 0.8m Smart Metering Cable, IP20, 6kV Rated (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

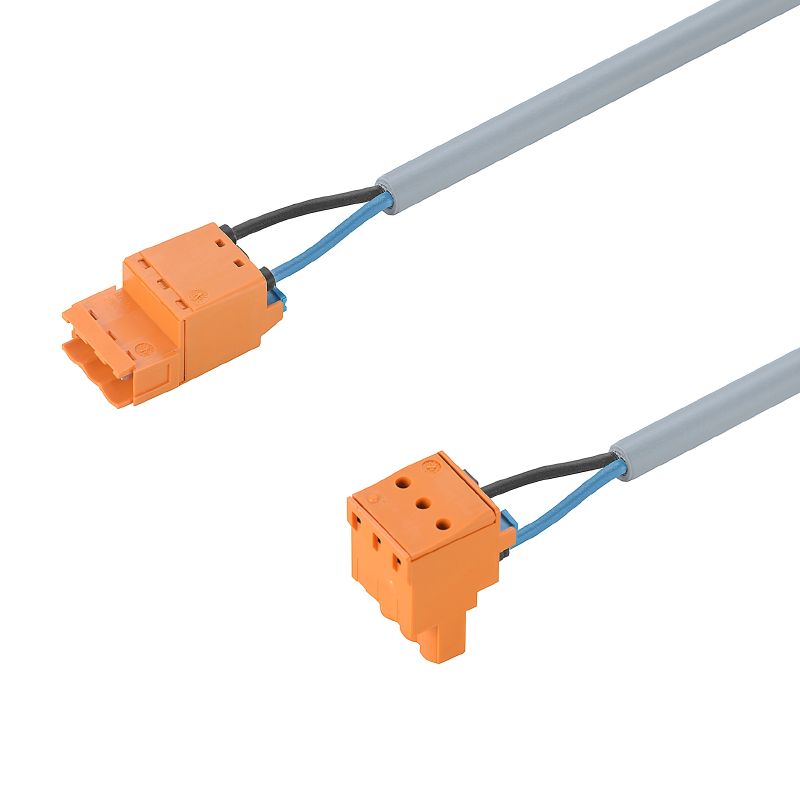

Introducing the CH-SMC-0080-CG90 cable assembly, specifically crafted for smart metering solutions This high-performance assembly boasts a socket connector that meets IP20 protection standards and operates efficiently at a nominal voltage of 600V With a length of 08 meters, it is constructed from KB PUR US 2X15 GY XX 6KV material, ensuring durability and reliability Additionally, this assembly adheres to RoHS regulations in full compliance, making it an eco-friendly choice for your applications.
Features and Benefits:
•Compliant with RoHS regulations.
•Contains no SVHCs above 0.1 wt%.
•Designed for both stationary and moving applications.
•Constructed with a halogen-free material.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.8 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Insulation | PP |
| Line type | KB PUR US 2X1.5 GY XX 6KV |
| Number of wires | 2 |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
