2712410500 - 5m 6-Pole Heavy Duty Connector Assembly, RoHS Compliant
2712410500 - 5m 6-Pole Heavy Duty Connector Assembly, RoHS Compliant
SKU: SKU: 2712410500 Download PDF
- 2712410500 - 5m 6-Pole Heavy Duty Connector Assembly, RoHS Compliant
- 2712410500 - 5m 6-Pole Heavy Duty Connector Assembly, RoHS Compliant
Couldn't load pickup availability
Description:

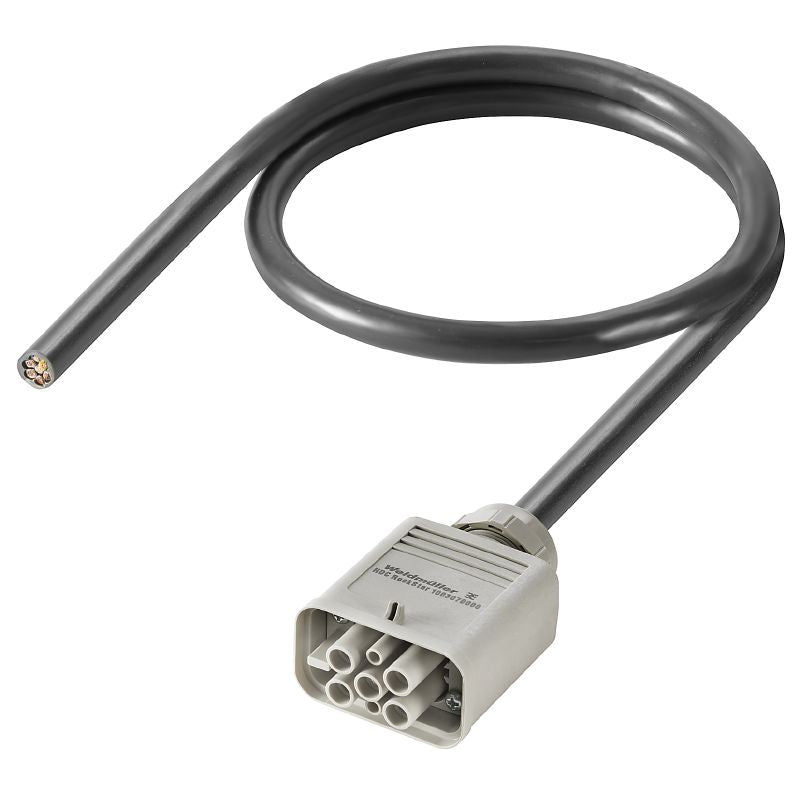

Discover the reliable heavy-duty connector assembly with the order number 2712410500 This assembly includes a socket connector crafted from Lapp ÖLFLEX CLASSIC 110 BK 7G25, or a comparable material, and it is unshielded It is designed to support 6 poles and meets RoHS standards with exemption, ensuring it aligns with environmental guidelines With a temperature tolerance spanning from -40 °C to 80 °C, it can effectively handle a nominal voltage of 500 V, making it a robust choice for various applications.
Features and Benefits:
•IP65 protection degree.
•Straight cable entry.
•Female connector type.
•Halogen free insulation.
•Industrial-grade design for harsh environments.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 2.5 mm² |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G2.5 or similar |
| Number of wires | 7 |
| Outside diameter | 11.1 mm |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
