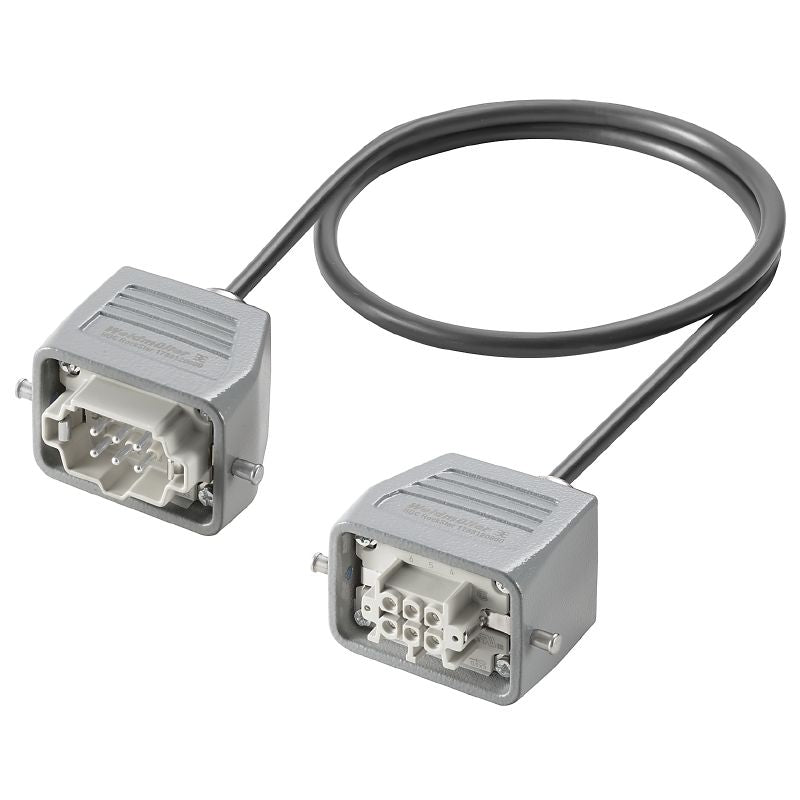

2710660200 - Heavy Duty 6-Pole Connector Assembly, 2m, Temperature Range: -40 to 80°C
2710660200 - Heavy Duty 6-Pole Connector Assembly, 2m, Temperature Range: -40 to 80°C
SKU: SKU: 2710660200 Download PDF
- 2710660200 - Heavy Duty 6-Pole Connector Assembly, 2m, Temperature Range: -40 to 80°C
- 2710660200 - Heavy Duty 6-Pole Connector Assembly, 2m, Temperature Range: -40 to 80°C
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust connector assembly featuring pin and socket connectors This durable product includes the Lapp ÖLFLEX CLASSIC 110 BK 7G15 or a comparable model, designed to operate without shielding and comprising 6 poles Weighing in at 1,07225 grams, it has a maximum voltage capacity of 500 V Engineered for extreme conditions, it functions efficiently in temperatures ranging from -40 °C to 80 °C, and it is compliant with RoHS exemptions, making it an excellent choice for various applications.
Features and Benefits:
•Compliant with RoHS exemption.
•Protection degree IP65.
•Housing made from diecast aluminum.
•Suitable for bending with specified minimum radius.
•Halogen-free insulation.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G1.5 or similar |
| Number of wires | 7 |
| Outside diameter | 8.9 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
