2712290200 - 2m Heavy-Duty 10-Pole Socket Connector Assembly, 12mm Diameter
2712290200 - 2m Heavy-Duty 10-Pole Socket Connector Assembly, 12mm Diameter
SKU: SKU: 2712290200 Download PDF
- 2712290200 - 2m Heavy-Duty 10-Pole Socket Connector Assembly, 12mm Diameter
- 2712290200 - 2m Heavy-Duty 10-Pole Socket Connector Assembly, 12mm Diameter
Couldn't load pickup availability
Description:

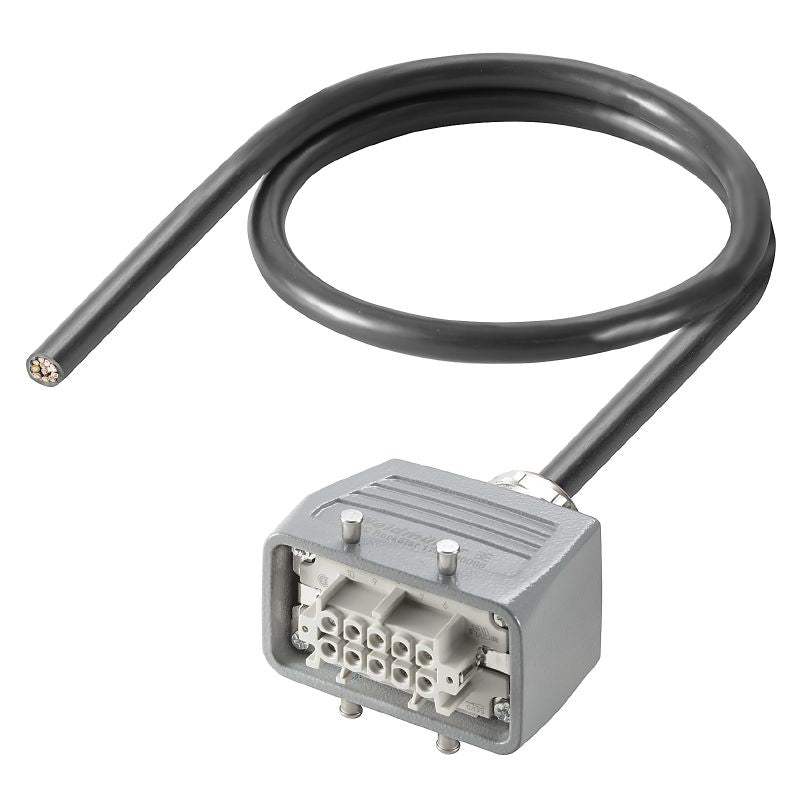

Introducing the CH-HGAB-XXXX-10-0200-AE socket connector assembly, crafted for robust applications This assembly utilizes high-performance Lapp ÖLFLEX CLASSIC 110 BK 12G15 or similar materials, featuring a design without shielding and accommodating 10 poles It meets RoHS standards and adheres to necessary exemptions, ensuring environmentally safe use With a compact diameter of 12 mm and a substantial weight of 918.
188 g, it operates efficiently across a temperature range of -40 °C to 80 °C, making it an ideal choice for challenging environments.
Features and Benefits:
•Compliant with RoHS exemption.
•IP65 protection degree.
•Housing made of diecast aluminium.
•Connector has a straight cable entry.
•Nominal voltage rating of 500 V.
•Halogen-free insulation with PVC.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Diameter | 12 mm |
| Net weight | 918.188 g |
| Number of poles | 10 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 12G1.5 or similar |
| Number of wires | 12 |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
