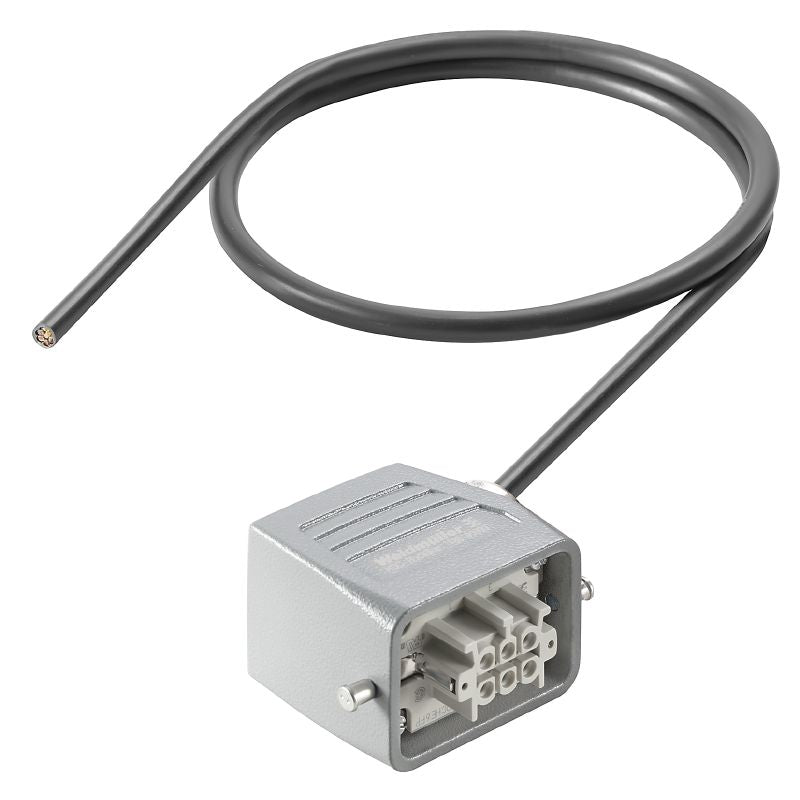

2712260500 - 5m RoHS Compliant 6-Pole Heavy-Duty Connector Assembly
2712260500 - 5m RoHS Compliant 6-Pole Heavy-Duty Connector Assembly
SKU: SKU: 2712260500 Download PDF
- 2712260500 - 5m RoHS Compliant 6-Pole Heavy-Duty Connector Assembly
- 2712260500 - 5m RoHS Compliant 6-Pole Heavy-Duty Connector Assembly
Couldn't load pickup availability
Description:
Introducing a robust connector assembly designed for reliable performance This 6-pole socket connector is not shielded, making it ideal for various applications while adhering to RoHS standards Weighing in at 1,748527 grams, it's engineered to handle a wide temperature range from -40 °C to 80 °C The assembly includes a Lapp ÖLFLEX CLASSIC 110 BK 7G15 or similar line type When in motion, the bending radius is efficiently reduced to 10 times the diameter of the cable, and it maintains a bend radius of 4 times the diameter when stationary, ensuring flexibility and longevity in use.
Features and Benefits:
•Socket connector type with 6 poles.
•IP65 protection degree.
•Angled cable entry.
•Diecast aluminum main housing.
•Nominal voltage of 500 V.
•Halogen-free insulation material.
•PVC sheath material.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Core cross-section | 1.5 mm² |
| Cable length | 5 m |
| Number of wires | 7 |
| Outside diameter | 8.9 mm |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
