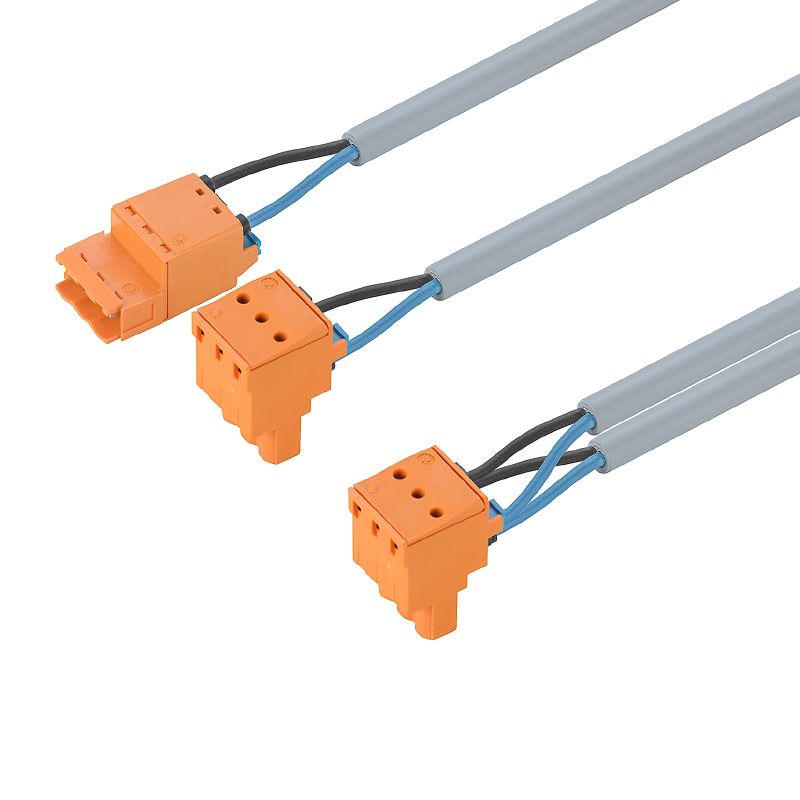

2774930033 - 0.33m Smart Metering Cable Assembly, 6kV Rated (Pack of 10)
2774930033 - 0.33m Smart Metering Cable Assembly, 6kV Rated (Pack of 10)
SKU: SKU: 2774930033 Download PDF
- 2774930033 - 0.33m Smart Metering Cable Assembly, 6kV Rated (Pack of 10)
- 2774930033 - 0.33m Smart Metering Cable Assembly, 6kV Rated (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your monitoring capabilities with this advanced smart metering cable assembly, designed to handle up to 6 kV Equipped with a pin and socket connector, it features an IP20 protection rating, ensuring reliable use Operating at 600 V with a nominal current of 185 A, this assembly is made from KB PUR US 2X15 GY XX 6KV material for exceptional quality Measuring 033 meters in length, it's an essential tool for precise electrical applications.
Features and Benefits:
•RoHS compliant without any exemptions.
•REACH SVHC status shows no SVHC above 0.1 wt%.
•Lightweight design with a net weight of 2.4 g.
•Environmentally compliant.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.33 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Halogen | No |
| Insulation | PP |
| Line type | KB PUR US 2X1.5 GY XX 6KV |
| Number of wires | 2 |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Shielded | No |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
