Description:

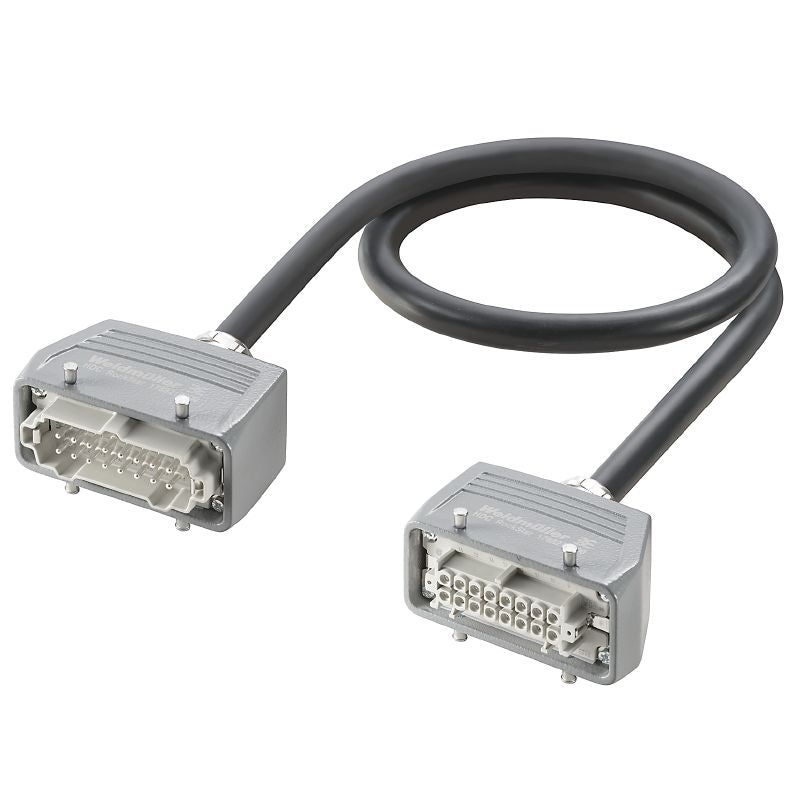

Introducing the CH-HIAA-HIAB-16-0500-AF, a durable heavy-duty connector assembly designed for diverse applications This assembly features a pin and socket configuration with a non-shielded design, ensuring reliable performance It meets RoHS standards and has received approval for environmental compliance, making it a responsible choice Weighing in at 2,308672 grams, this connector operates efficiently within a temperature range of -40 °C to 80 °C.
Designed for straightforward cable entry, it’s crafted from sturdy diecast aluminum and includes 16 poles for pin and female connections, part of the HE series.
Features and Benefits:
•Compliant with RoHS exemption.
•Bending radius: minimum of 10 times the cable diameter when in motion.
•Bending radius: minimum of 4 times the cable diameter when stationary.
•PVC insulation and sheath.
•Halogen-free.
•IP65 protection degree.
Specifications:
| Nominal voltage | 500 V |
| Pin arrangement | 1:1, numbered cores |
| Number of wires | 18 |
| Core cross-section | 1.5 mm² |
| Outside diameter | 14.4 mm |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
