Description:

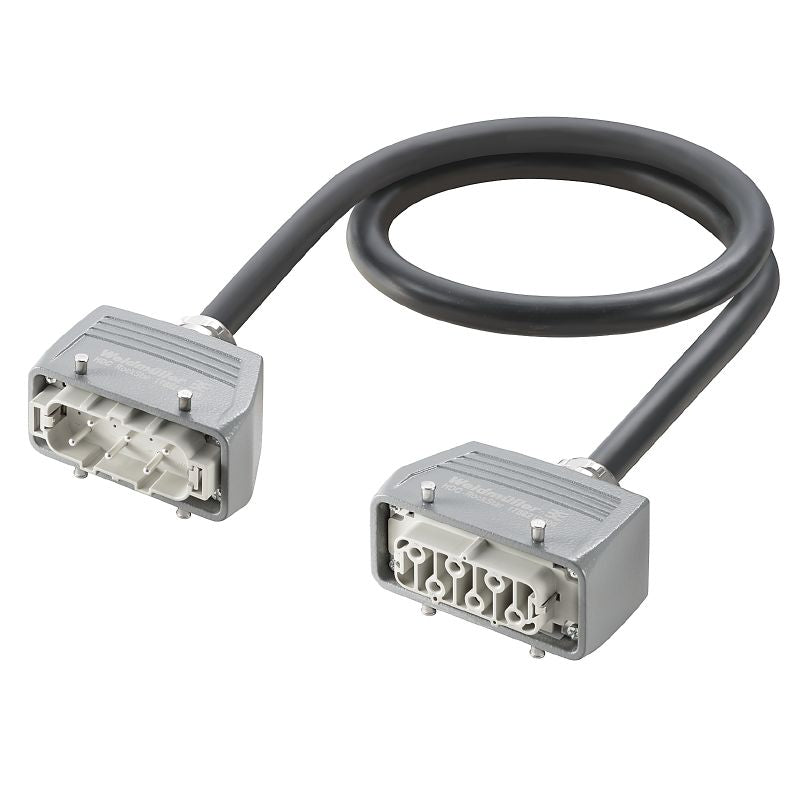

This robust connector assembly includes both pin and socket connectors that meet Helukabel JZ-600 7G4 specifications or similar standards It features six poles and does not include shielding Registered under order number 2712310100, this product is RoHS compliant, ensuring it meets environmental safety regulations.
Features and Benefits:
•Includes two connectors, both with straight cable entries.
•Made from diecast aluminium for durability.
•IP65 protection degree enables resistance to dust and water.
•Nominal voltage rating of 400V.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Number of poles | 6 |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 4 mm² |
| Insulation | PVC |
| Line type | Helukabel JZ-600 7G4 or similar |
| Number of wires | 7 |
| Outside diameter | 15.8 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
