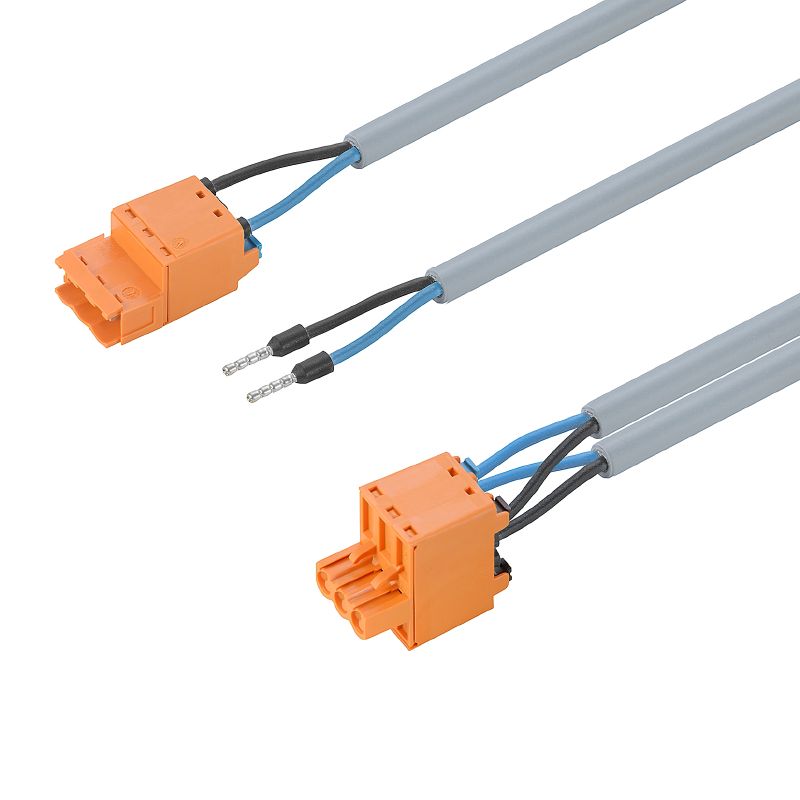

2775940033 - 0.33m High Voltage Metering Cable Assembly, IP20 Rated (Pack of 10)
2775940033 - 0.33m High Voltage Metering Cable Assembly, IP20 Rated (Pack of 10)
SKU: SKU: 2775940033 Download PDF
- 2775940033 - 0.33m High Voltage Metering Cable Assembly, IP20 Rated (Pack of 10)
- 2775940033 - 0.33m High Voltage Metering Cable Assembly, IP20 Rated (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the Smart Metering Cable Assembly, expertly crafted for high voltage use With an impressive rated impulse withstand voltage of 6 kV and a nominal voltage of 600 V, this assembly is engineered for reliability It features durable pin and socket connectors and boasts an IP20 protection rating Measuring 033 m in length, it efficiently handles a nominal current of 185 A Available in a versatile grey color, this cable assembly is your ideal choice for robust electrical applications.
Features and Benefits:
•Approvals: RoHS compliant without exemption.
•Bending radius minimum for moving: 15 times cable diameter.
•Bending radius minimum for stationary: 10 times cable diameter.
•Cable material: PUR/TPE.
•Halogen free.
•Insulation made of PP.
•Sheathing color: grey.
•Unshielded cable.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.33 m |
| Core cross-section | 1.5 mm² |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Temperature range, moving, max | 90 °C |
| Temperature range, moving, min | -25 °C |
| Temperature range, stationary, max | 90 °C |
| Temperature range, stationary, min | -40 °C |
