2712350500 - 5m Heavy-Duty 24-Pole Connector Assembly, RoHS Compliant
2712350500 - 5m Heavy-Duty 24-Pole Connector Assembly, RoHS Compliant
SKU: SKU: 2712350500 Download PDF
- 2712350500 - 5m Heavy-Duty 24-Pole Connector Assembly, RoHS Compliant
- 2712350500 - 5m Heavy-Duty 24-Pole Connector Assembly, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

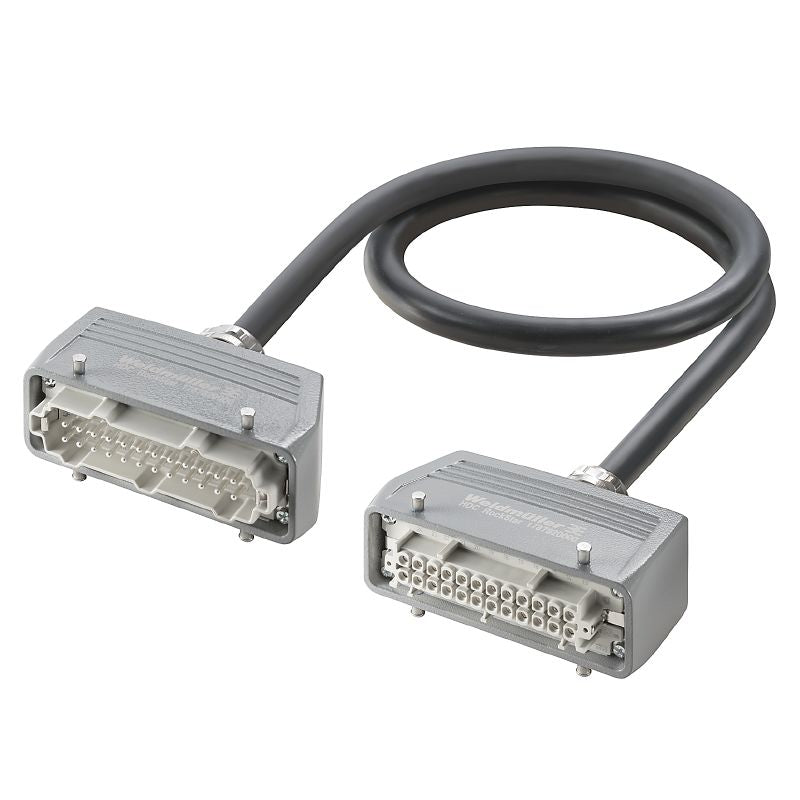

Introducing our durable connector assemblies, designed with pin and socket connectors, specifically featuring the Lapp ÖLFLEX CLASSIC 110 BK 12G15 type or equivalent designs These connectors consist of 24 poles and are unshielded, making them ideal for a variety of applications Additionally, they meet RoHS standards, ensuring they are environmentally friendly and suitable for robust use This product is engineered to provide long-lasting performance in demanding settings.
Features and Benefits:
•Compliant with RoHS.
•Housing made from diecast aluminium.
•IP65 protection degree.
•Includes 25 wires in the design.
•Bending radius of 10 times cable diameter for moving applications.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 24 |
| Protection degree | IP65 |
| Cable length | 5 m |
| Core cross-section | 1.5 mm² |
| Insulation | PVC |
| Sheath material | PVC |
| Outside diameter | 16.9 mm |
| Temperature range (moving, max) | 70 °C |
| Temperature range (moving, min) | -15 °C |
| Temperature range (stationary, max) | 80 °C |
| Temperature range (stationary, min) | -40 °C |
