Description:

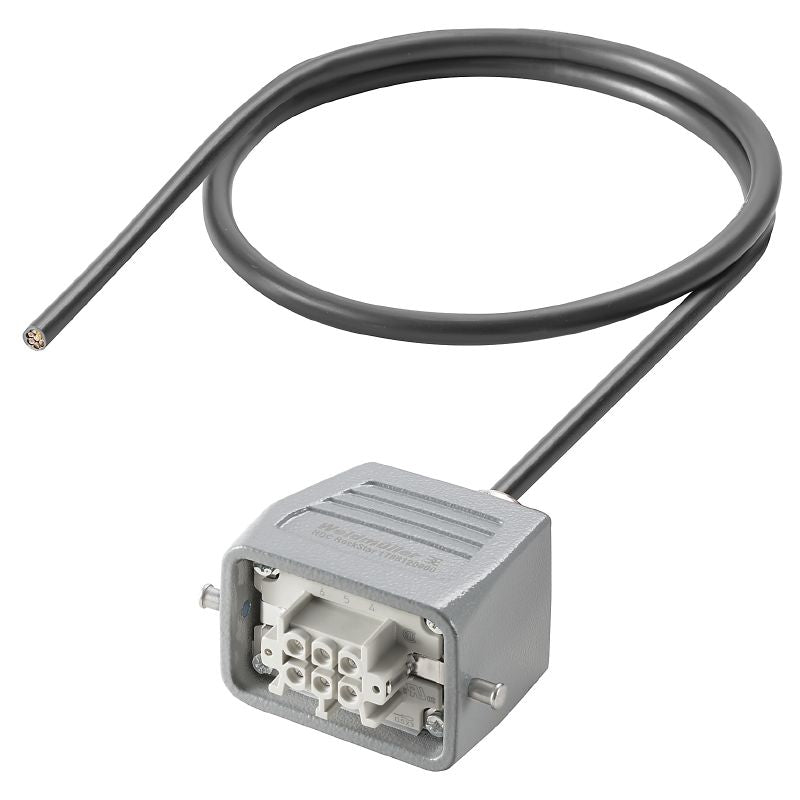

Discover the robust heavy-duty connector assemblies featuring a socket type designed for reliable performance With a capacity of up to 500V, this connector includes 6 poles with a straightforward 1:1 pin arrangement for easy installation, complete with numbered cores It boasts an IP65 protection rating, ensuring excellent durability in challenging environments Constructed from diecast aluminum, this connector falls under the HE series, offering a straight cable entry for efficient use.
The package comes with a 5-meter cable having a core cross-section of 15 mm² Additionally, the materials used are halogen confirmed and insulated using durable PVC.
Features and Benefits:
•Compliant with RoHS regulations.
•Protection degree of IP65.
•Diecast aluminium housing.
•Straight cable entry design.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 5 m |
| Core cross-section | 1.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 7G1.5 or similar |
| Number of wires | 7 |
| Outside diameter | 8.9 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
