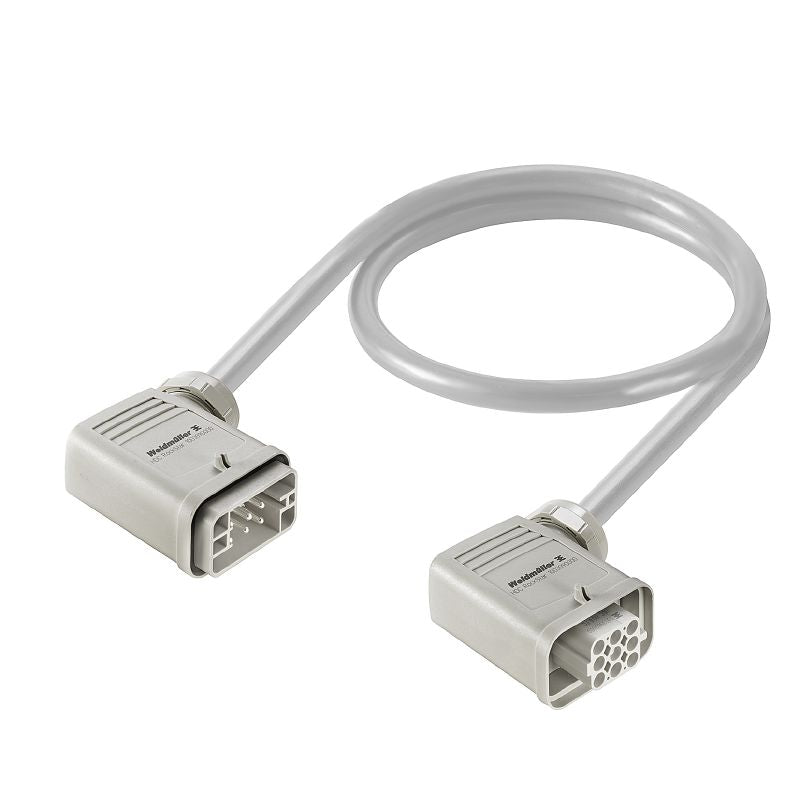

2712450500 - 5m IP65 Heavy-Duty 8 Poles Connector with Angled Entry
2712450500 - 5m IP65 Heavy-Duty 8 Poles Connector with Angled Entry
SKU: SKU: 2712450500 Download PDF
- 2712450500 - 5m IP65 Heavy-Duty 8 Poles Connector with Angled Entry
- 2712450500 - 5m IP65 Heavy-Duty 8 Poles Connector with Angled Entry
Couldn't load pickup availability
Description:
Experience dependable connectivity with this robust connector assembly, featuring both male and female configurations Each connector is designed with 8 poles arranged in a precise 1:1 numbered core layout and includes an angled cable entry for optimal functionality Crafted from durable plastic, these connectors boast an IP65 rating, ensuring excellent protection from dust and moisture They adhere to RoHS standards, promoting safety and environmental responsibility, and come with an integrated 5-meter cable that has a core cross-section of 2.
5mm², making it a practical choice for various applications.
Features and Benefits:
•Rated for nominal voltage of 500V.
•Protection degree of IP65.
•Bending radius of 7.5 times the cable diameter when moving and 4 times when stationary.
•Halogen-free insulation.
•Grey sheath material.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Nominal voltage | 500 V |
| Number of poles | 8 |
| Pin arrangement | 1:1, numbered cores |
| Connector 1 description | {'Cable entry': 'angled', 'Housing main material': 'Plastic', 'Type': 'Male'} |
| Connector 2 description | {'Cable entry': 'angled', 'Housing main material': 'Plastic', 'Type': 'Female'} |
| Cable length | 5 m |
| Core cross-section | 2.5 mm² |
| Insulation | PVC |
| Line type | Helukabel JZ-500 10G2.5 or similar |
| Number of wires | 10 |
| Outside diameter | 14.8 mm |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
