Description:

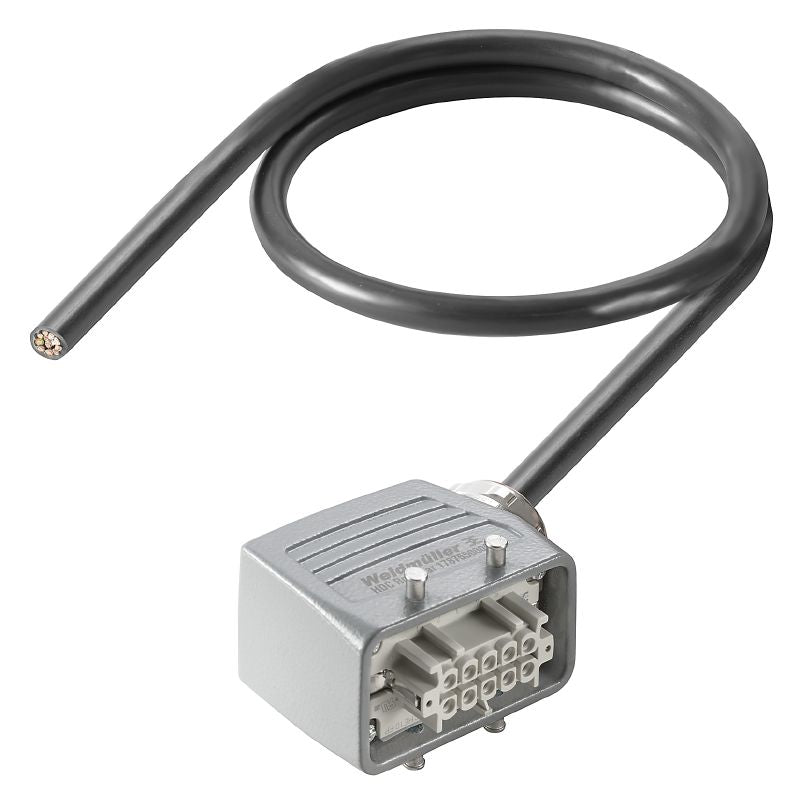

Introducing a robust connector assembly designed for durability, featuring a socket compatible with the Lapp ÖLFLEX CLASSIC 110 BK 12G15 and similar models This assembly consists of 10 poles and has a diameter of 12 mm Withstanding extreme temperatures from -40 °C to 80 °C, it is perfect for various applications where reliability is essential Note that this connector assembly is not shielded, making it a straightforward choice for your electrical needs.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Connector features IP65 protection degree.
•Made of diecast aluminum housing.
•Connector has an angled cable entry.
•Nominal voltage rating is 500 V.
•Features numbered cores for pin arrangement.
Specifications:
| Diameter | 12 mm |
| Net weight | 919.188 g |
| Limit temperature | -40 °C ... 80 °C |
| Number of poles | 10 |
| Pin arrangement | 1:1, numbered cores |
| Protection degree | IP65 |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Insulation | PVC |
| Sheath material | PVC |
| Number of wires | 12 |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
