Description:

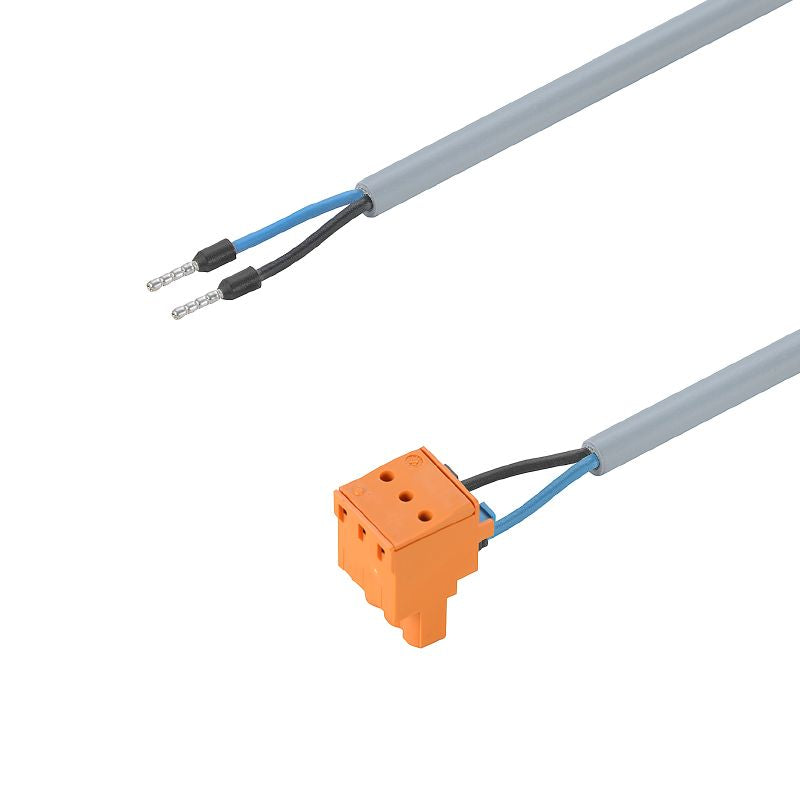

Introducing the Smart Metering Cable Assemblies, engineered to perform reliably under high voltage scenarios, boasting a nominal voltage of 600 V and a nominal current of 185 A Each assembly is equipped with a socket connector that offers an IP20 protection level, along with a rated impulse withstand voltage of 6 kV With a generous length of 12 m, these cables are made from resilient materials suitable for various environmental conditions, ensuring versatility and durability for your metering needs.
Features and Benefits:
•Conforms to RoHS compliance standards.
•No SVHC present above 0.1 wt%.
•Flexible bending radius for both moving (15 x cable diameter) and stationary applications (10 x cable diameter).
•Cable materials provide resistance in a temperature range between -40 °C to 90 °C.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 1.2 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Halogen | No |
| Insulation | PP |
| Line type | KB PUR US 2X1.5 GY XX 6KV |
| Number of wires | 2 |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Shielded | No |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
