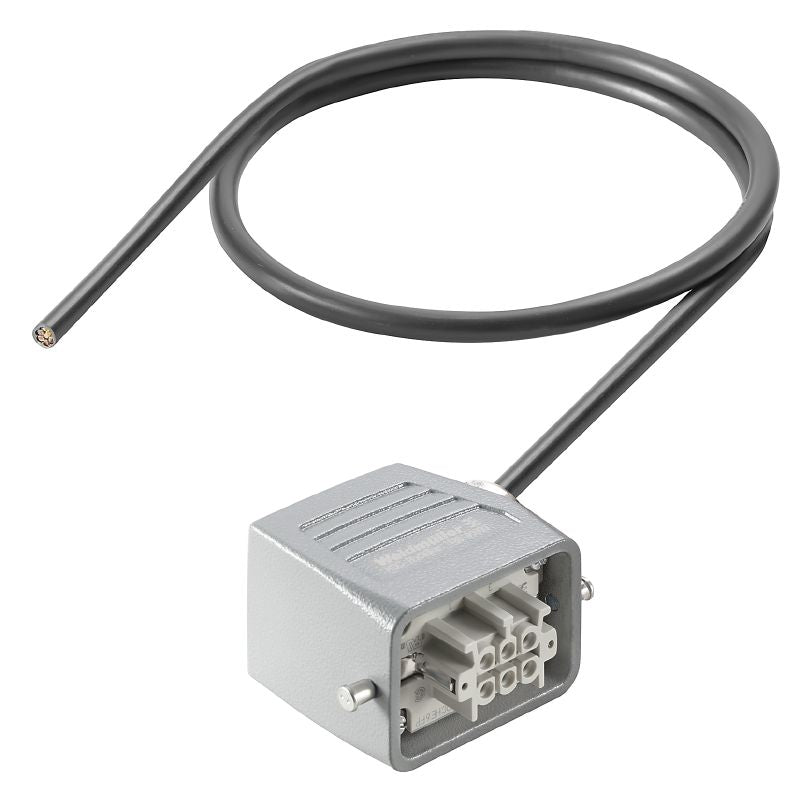

2712260200 - 2m Heavy-Duty 6-Pole Connector Assembly, -40°C to 80°C
2712260200 - 2m Heavy-Duty 6-Pole Connector Assembly, -40°C to 80°C
SKU: SKU: 2712260200 Download PDF
- 2712260200 - 2m Heavy-Duty 6-Pole Connector Assembly, -40°C to 80°C
- 2712260200 - 2m Heavy-Duty 6-Pole Connector Assembly, -40°C to 80°C
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the reliability of this robust connector assembly, featuring a socket connector suitable for Lapp ÖLFLEX CLASSIC 110 BK 7G15 and comparable models It boasts six poles and operates efficiently within a temperature range of -40 °C to 80 °C Additionally, this product adheres to RoHS standards with an exemption, and contains specific REACH substances, including lead and potassium perfluorobutane sulfonate.
Features and Benefits:
•IP65 protection degree.
•Diecast aluminium housing.
•Female type connector.
•Includes a 2m cable with a core cross-section of 1.5 mm².
•Bending radius for moving applications is 10 times the cable diameter.
•Bending radius for stationary applications is 4 times the cable diameter.
•Halogen-free insulation.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Pin arrangement | 1:1, numbered cores |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Outside diameter | 8.9 mm |
| Sheath material | PVC |
| Temperature range, moving, max | 70 °C |
| Temperature range, moving, min | -15 °C |
| Temperature range, stationary, max | 80 °C |
| Temperature range, stationary, min | -40 °C |
