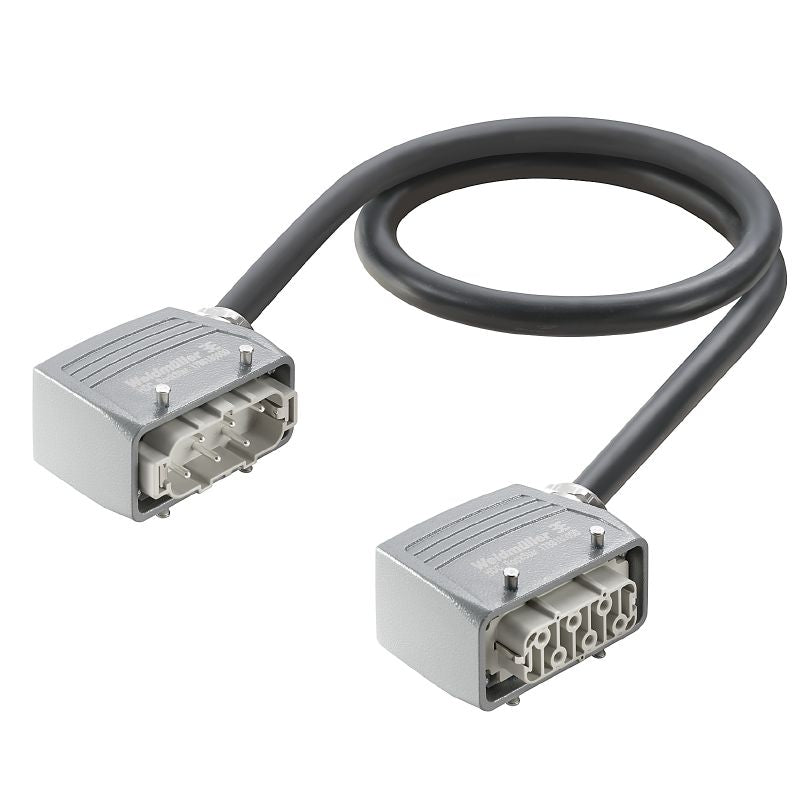

2712320200 - 2m IP65 Heavy-Duty Connector Assembly, 6 Poles, 400V
2712320200 - 2m IP65 Heavy-Duty Connector Assembly, 6 Poles, 400V
SKU: SKU: 2712320200 Download PDF
- 2712320200 - 2m IP65 Heavy-Duty Connector Assembly, 6 Poles, 400V
- 2712320200 - 2m IP65 Heavy-Duty Connector Assembly, 6 Poles, 400V
Couldn't load pickup availability
Description:
Enhance your industrial connectivity with this robust connector assembly featuring pin and socket connectors The Helukabel model JZ-600 7G4, equipped with six poles, is designed for demanding applications This unshielded assembly supports a nominal voltage of 400V and boasts an IP65 protection rating, ensuring resilience in various environments Weighing 1,39664g and featuring a cable length of 2 meters, it is suitable for both stationary and dynamic setups.
Additionally, it meets RoHS standards and operates efficiently within a temperature range of -40 °C to 80 °C.
Features and Benefits:
•6 poles for versatile use.
•Diecast aluminium housing for durability.
•IP65 protection for environmental resistance.
•Suitable for both moving and stationary applications.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Nominal voltage | 400 V |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 4 mm² |
| Insulation | PVC |
| Number of wires | 7 |
| Outside diameter | 15.8 mm |
| Sheath material | PVC |
| Shielded | No |
