PCE-4PCFM - 4-Point Clamping Force Meter with Touch Display, 3 Ton Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

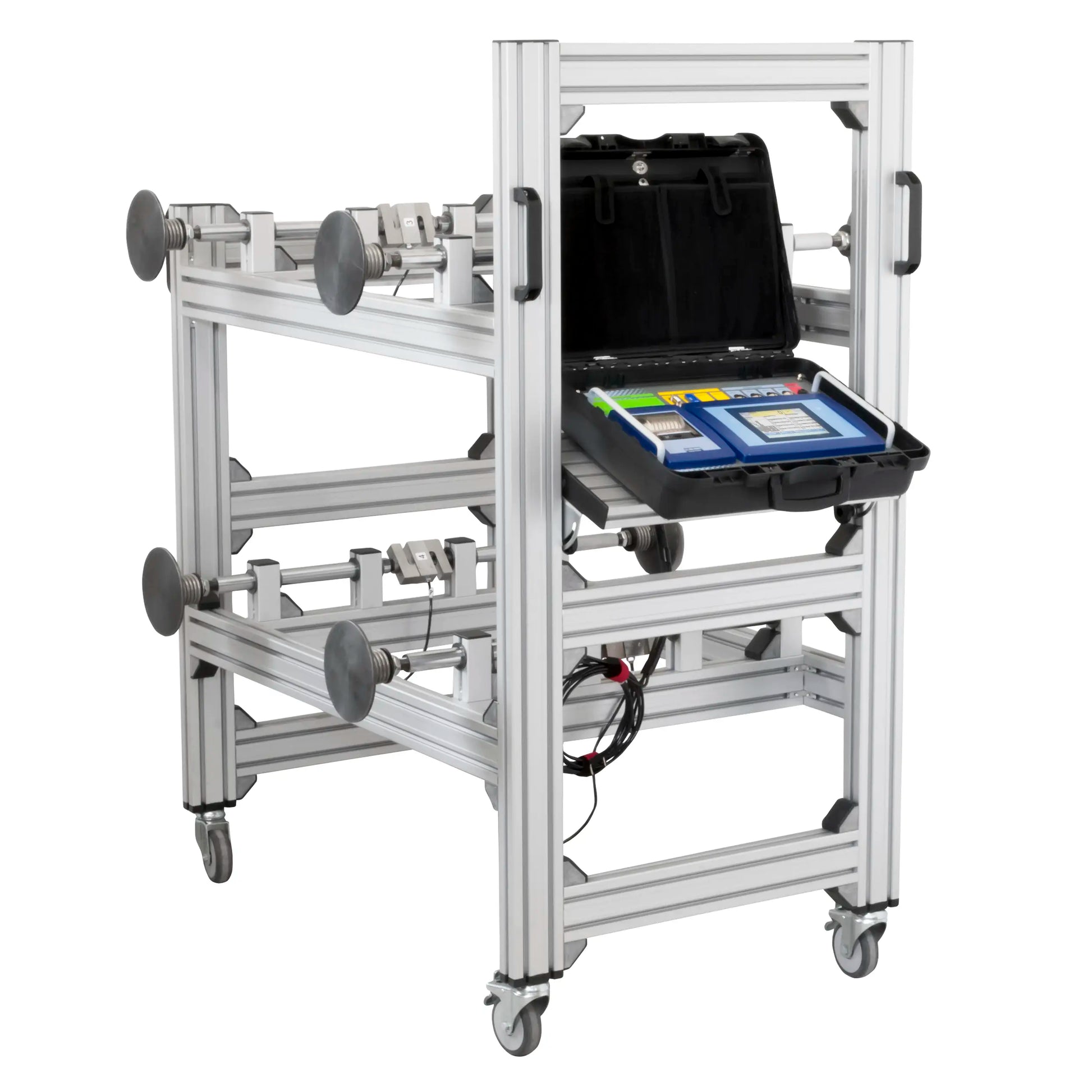

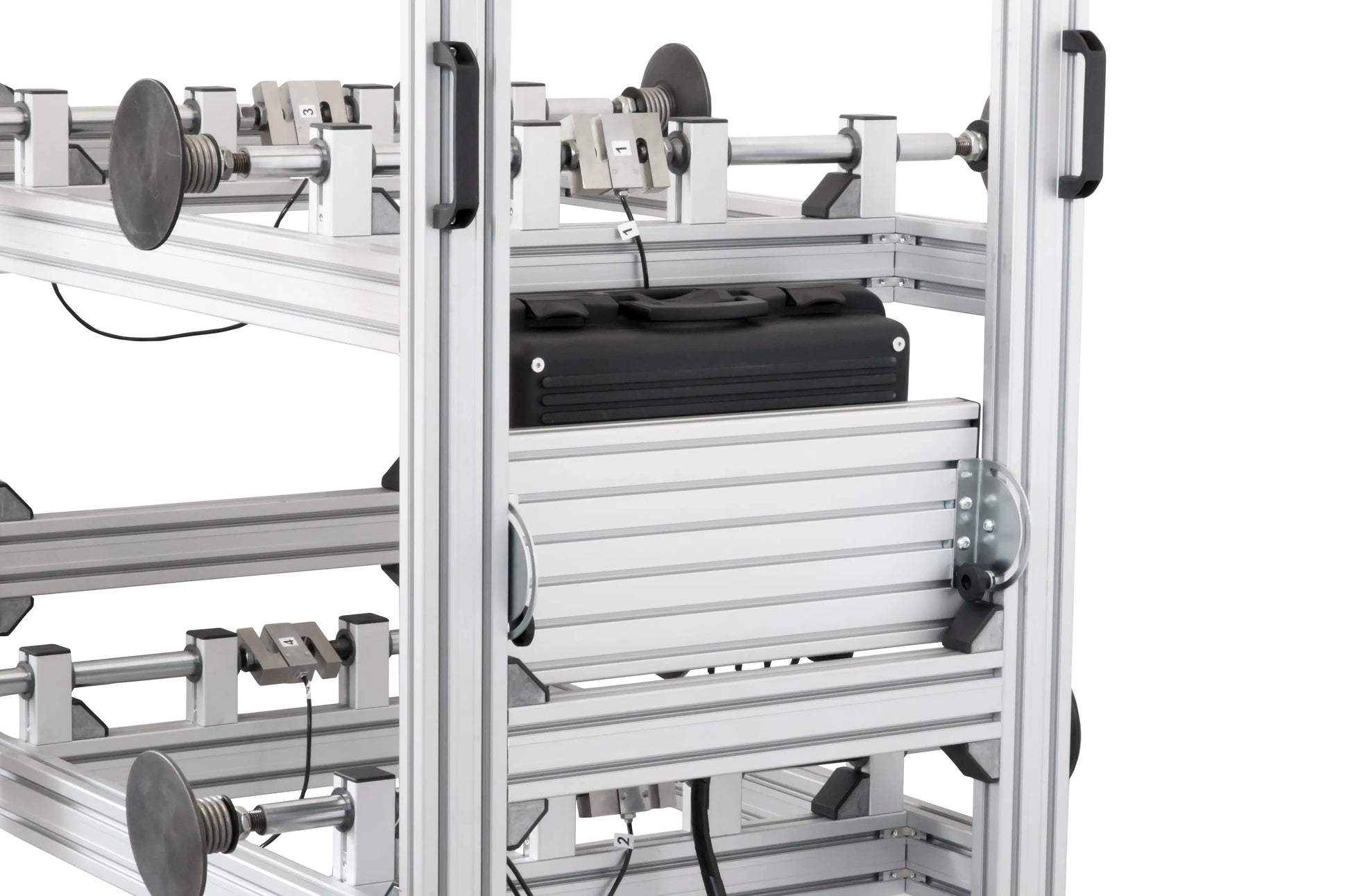

Introducing the PCE-4PCFM Closing Force Transducer—a state-of-the-art 4-point force meter engineered to ensure even clamp force distribution during the handling of bulky items, including white goods and consumer electronics This innovative device enhances the safe transportation of multiple products by equally balancing clamping forces The transducer employs four individual sensors to measure compressive forces, each capable of capturing data up to 3 tons.

Users benefit from a vibrant graphic color touch display featuring high precision with a resolution of 1 kg Flexible measurement options allow readings in various units, such as kg, N, kN, and lb With easy-to-adjust measuring points and the capability to set target values, real-time monitoring of force distribution is effortless The PCE-4PCFM also includes advanced functions for documenting measurements.

To maximize portability, it is equipped with a rechargeable battery, making it the perfect tool for on-the-go needs.

Features and Benefits:

•Force gauge designed specifically for large clamps.

•Maximum measuring capacity of up to 30 kN / 3 t (30,000 N / 3,000 kg).

•Simultaneous measurement from four points.

•Adjustable measuring points for various adaptations.

•Graphic color touch display that logs operator and clamp IDs.

•Comprehensive measurement display showing total and individual point forces.

•Percentage distribution of force concerning total force.

•Colored indicators for measurements falling outside tolerance limits.

•Includes a printer for immediate documentation.

•Option to store measurement data on a USB stick.

Specifications:
