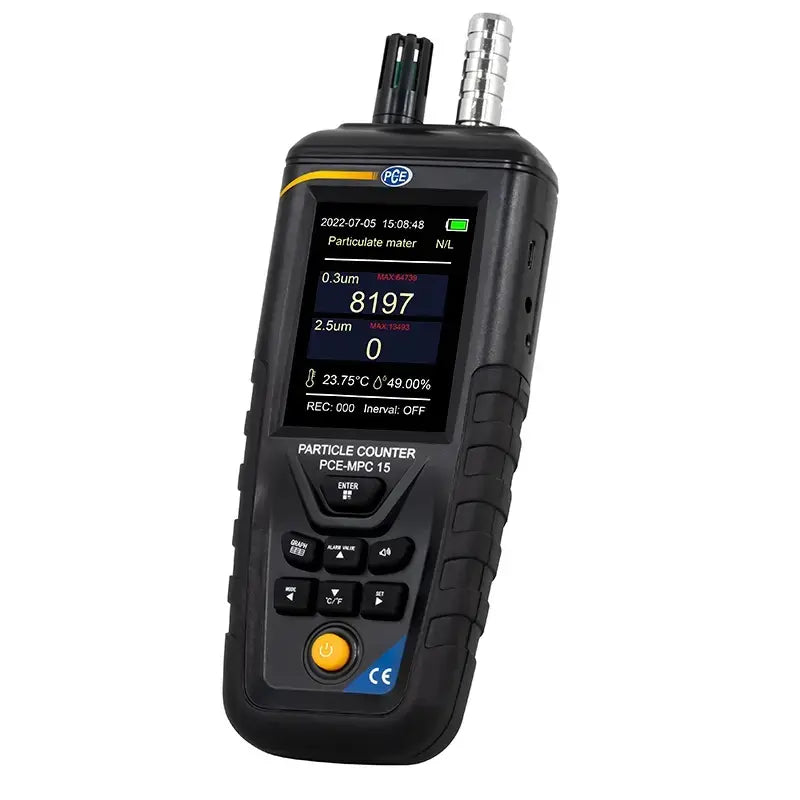

PCE-MPC 15 - Portable Air Sampler with Data Logging & 3.2" Display

SKU: SKU: PCE-MPC 15 Download PDF

Select a Variant:

PCE-MPC 15 - Portable Air Sampler with Data Logging & 3.2" Display

SET THE QTY:

Now $825.00 Web pricing policy

~~BEFORE $0.00~~ Now $825.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Monitor air quality effortlessly with this advanced air sampler, ideal for use in diverse settings like offices, workshops, and laboratories It accurately measures mass concentrations of PM25 and PM10 from 0 to 1000 µg/m³, along with temperature and humidity levels Featuring a robust data logging capacity, it can conduct approximately 12 measurement runs, storing up to 999 data points per run for thorough analysis.

The device is powered by a reliable 8 Wh battery offering around 9 hours of continuous operation and easily charges via its Micro USB interface With a user-friendly 32" color display for straightforward monitoring, this sampler also comes with a convenient carrying case and a tripod connection, ensuring versatility for various applications.

Features and Benefits:

•Data storage for comprehensive data logging.

•Adjustable alarm for exceeded limit values.

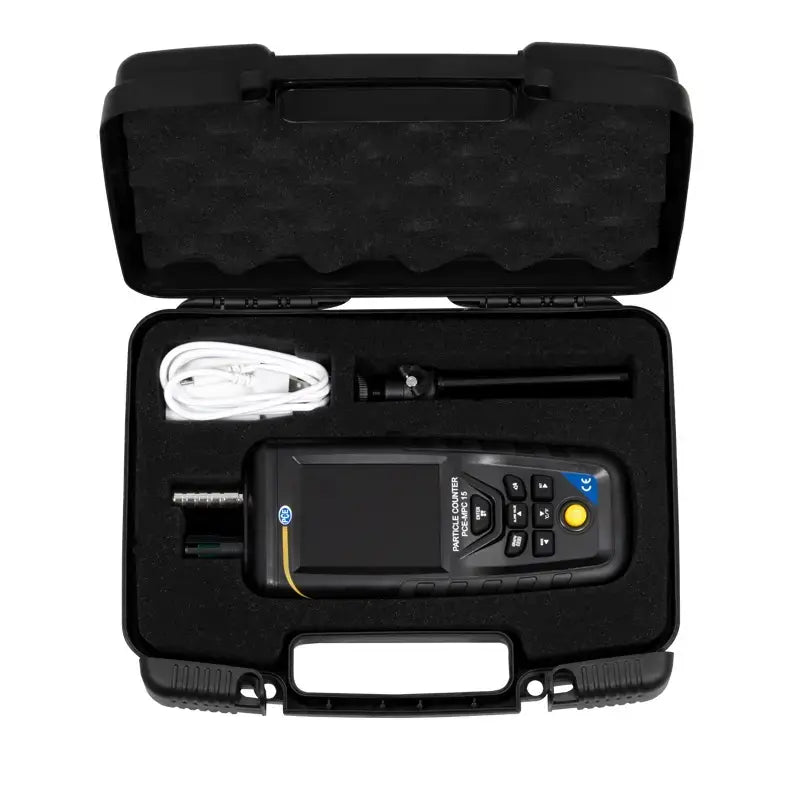

•Transport case for secure transport.

•Capable of indicative measurements.

•Measuring range of 0 ... 1000 µg/m³.

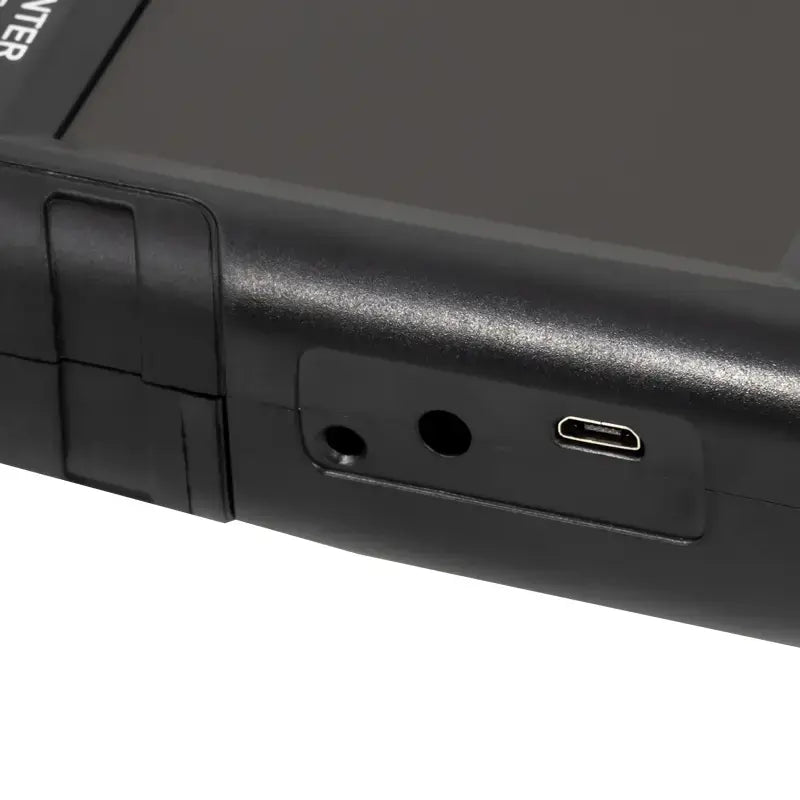

•Micro USB interface exclusively for charging.

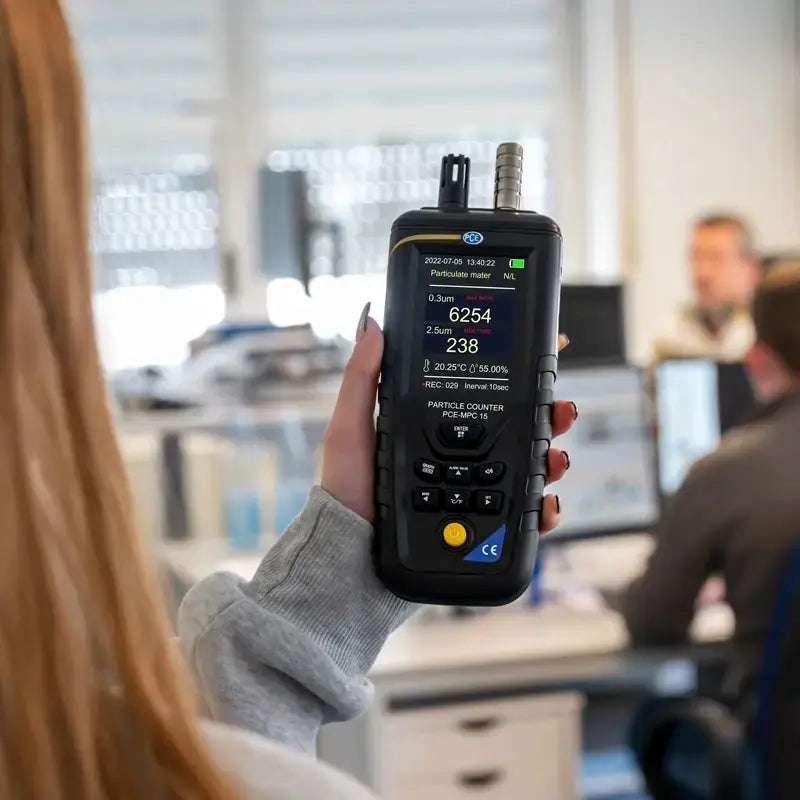

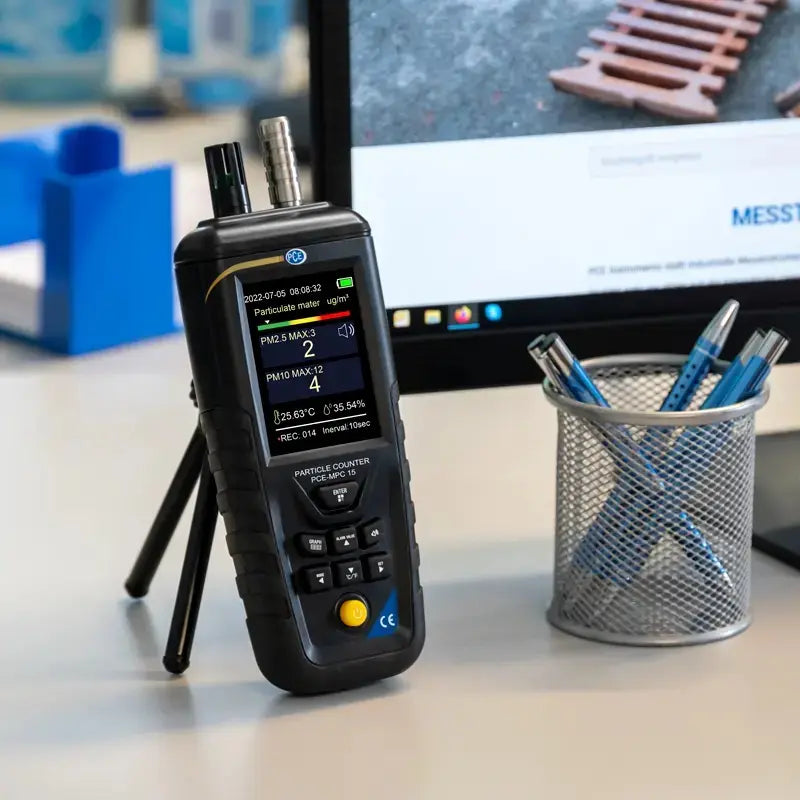

•Used in offices.

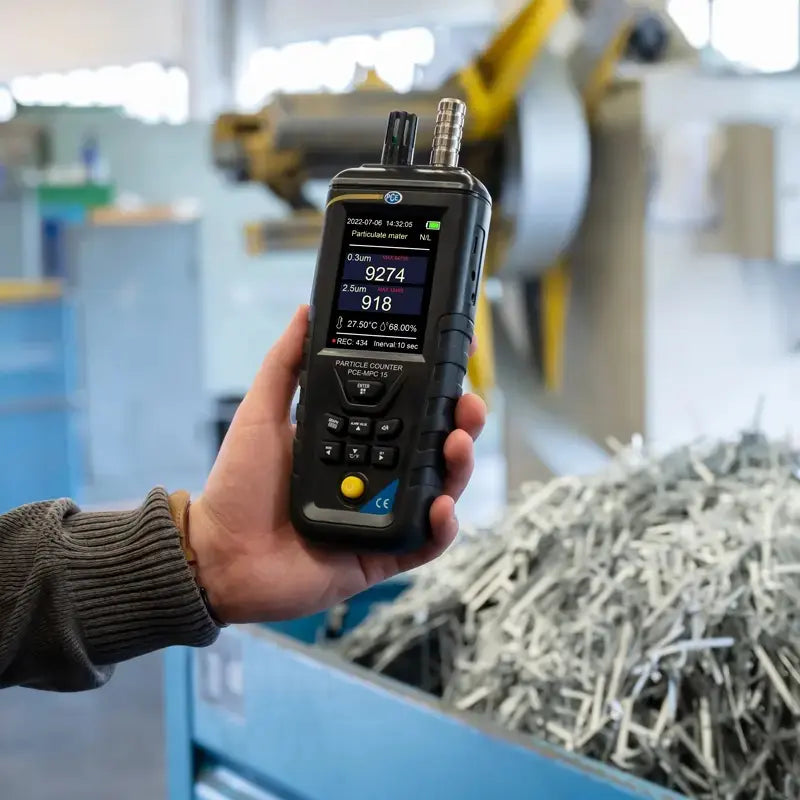

•Workshops.

•Laboratories.

Specifications:

Mass concentration	Measurable particle sizes PM2.5 / PM10
Measuring range PM 2.5	0 ... 1000 µg/m³
Resolution	1 µm
Accuracy PM 2.5	0 ... 100 µg/m³: ±10 µg/m³; 101 ... 1000 µg/m³: ±10% of measured value
Measurable particle sizes	0.3 / 2.5 µm
Number of maximum particles	2,000,000 particles/L
Temperature measuring range	-10 ... 60 °C, 14 ... 140 °F
Temperature resolution	0.01 °C, °F
Temperature accuracy	±2 °C, ±3.6 °F
Humidity measuring range	0 ... 100 %
Humidity resolution	0.01 %
Humidity accuracy	±3 %
Response time	1 second
Warm up	10 seconds

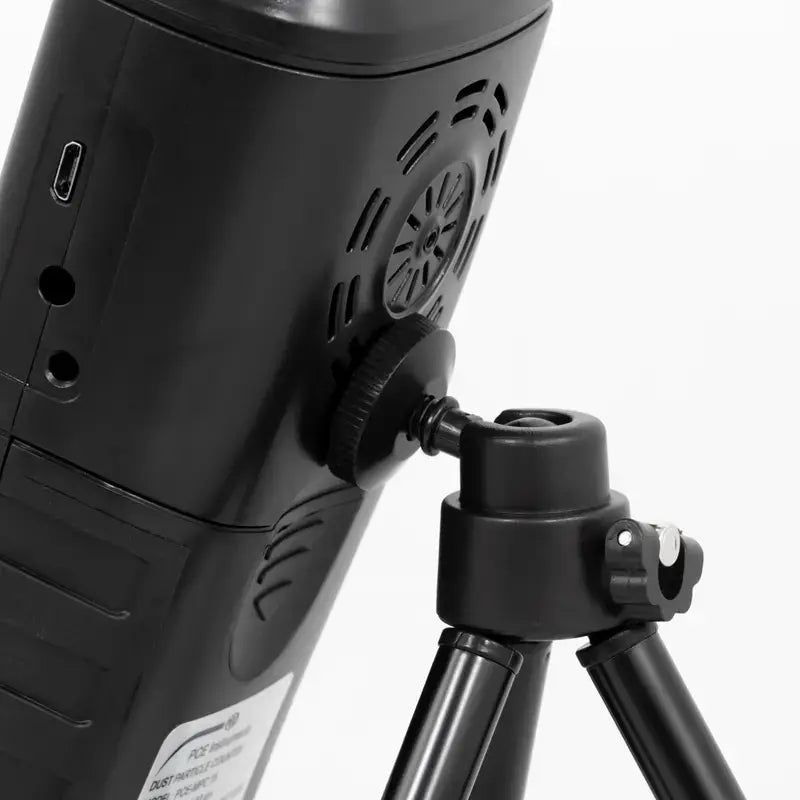

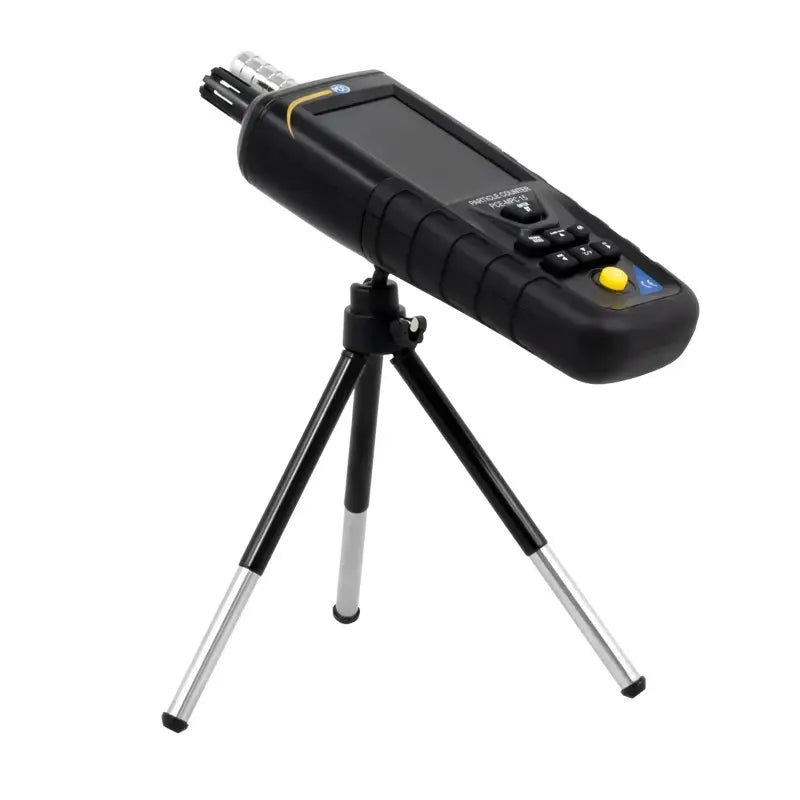

Mounting connection	1/4" tripod connection

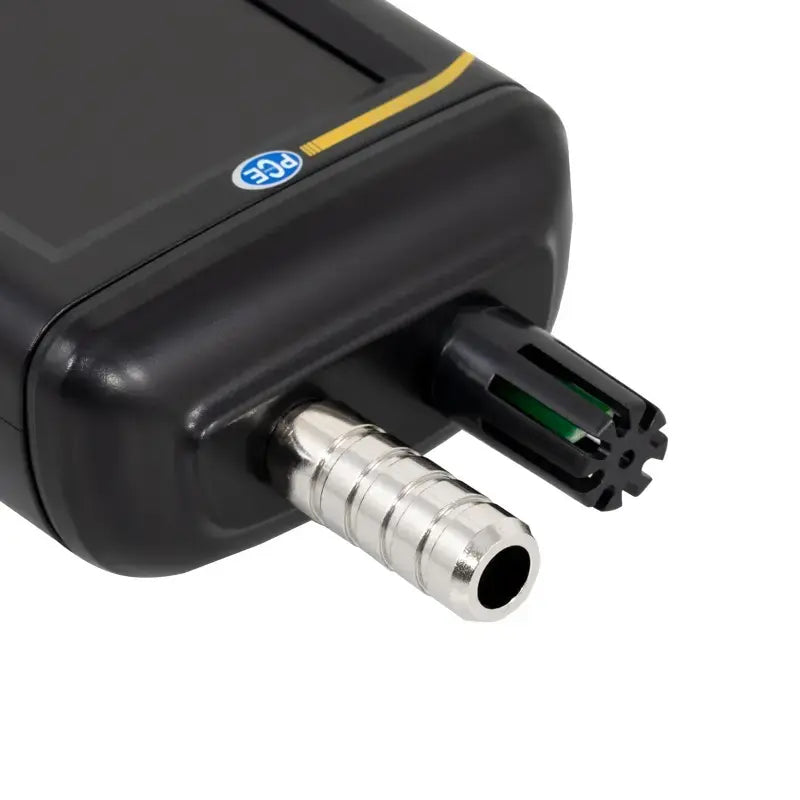

Dimensions intake outside	Ø13 mm / 0.51"
Dimensions intake inside	Ø7 mm / 0.27"
Intake height	35 mm / 1.37"

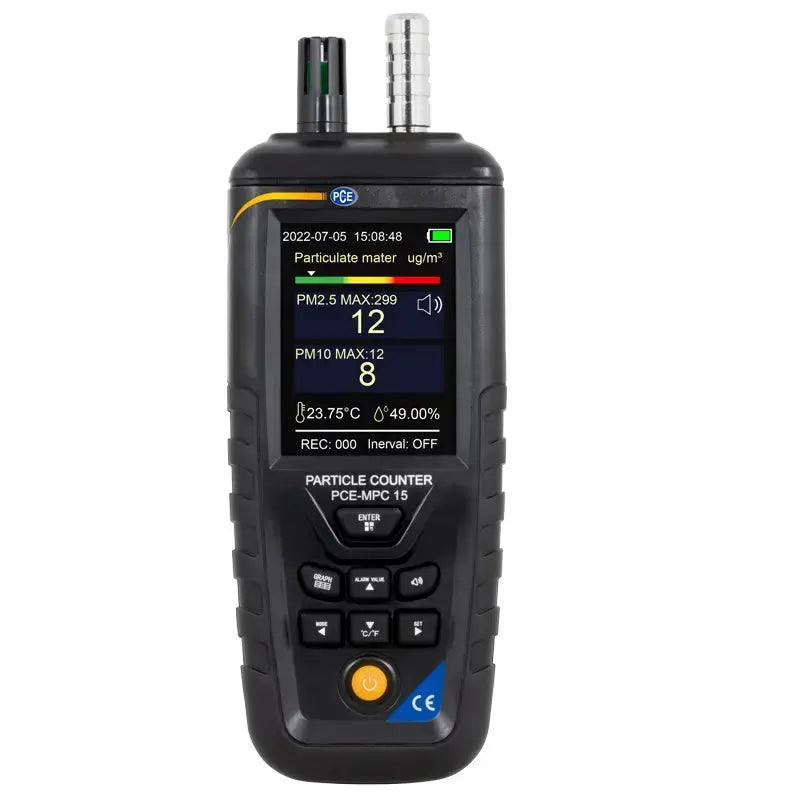

Display	3.2" LC color display
Power supply (mains adapter) primary	100 ... 240 V AC, 50 / 60 Hz, 0.3 A
Power supply (mains adapter) secondary	5 V DC, 2 A

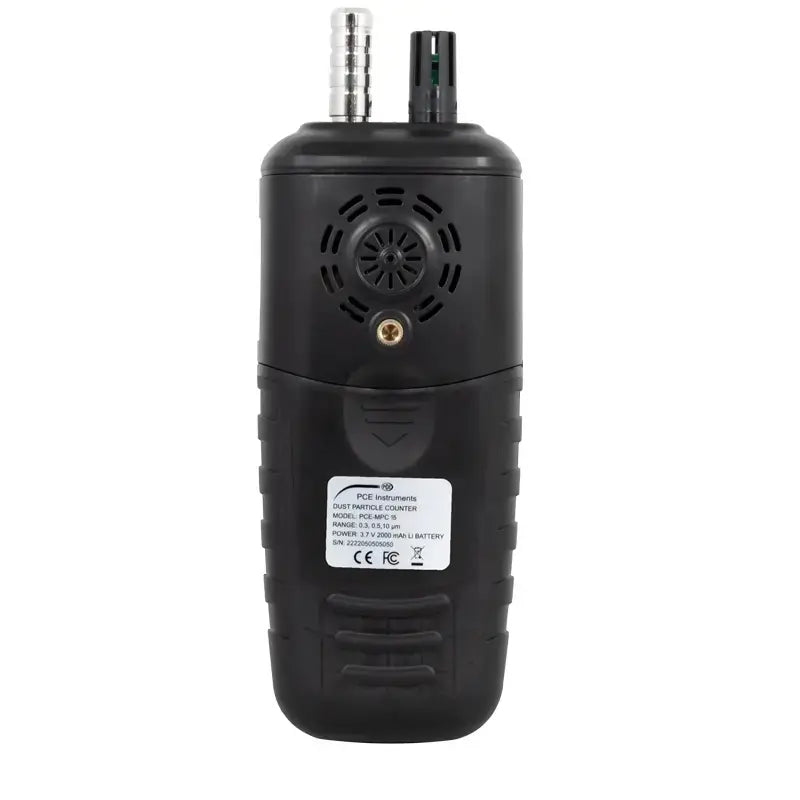

Power supply (battery)	3.7 V, 8.14 Wh, 18650
Battery life	ca. 9 hours
Interface	Micro USB for charging only
Auto power off	turned off at intervals of 15, 30, 45 minutes and 1, 2, 4, 8 hours
Data memory	flash memory for approx. 12 measurement runs with 999 measurement points each
Storage interval	10, 30 seconds; 1, 5, 10, 30, 60 minutes
Dimensions	222 x 80 x 46 mm / 8.7 x 3.1 x 1.8"
