Description:

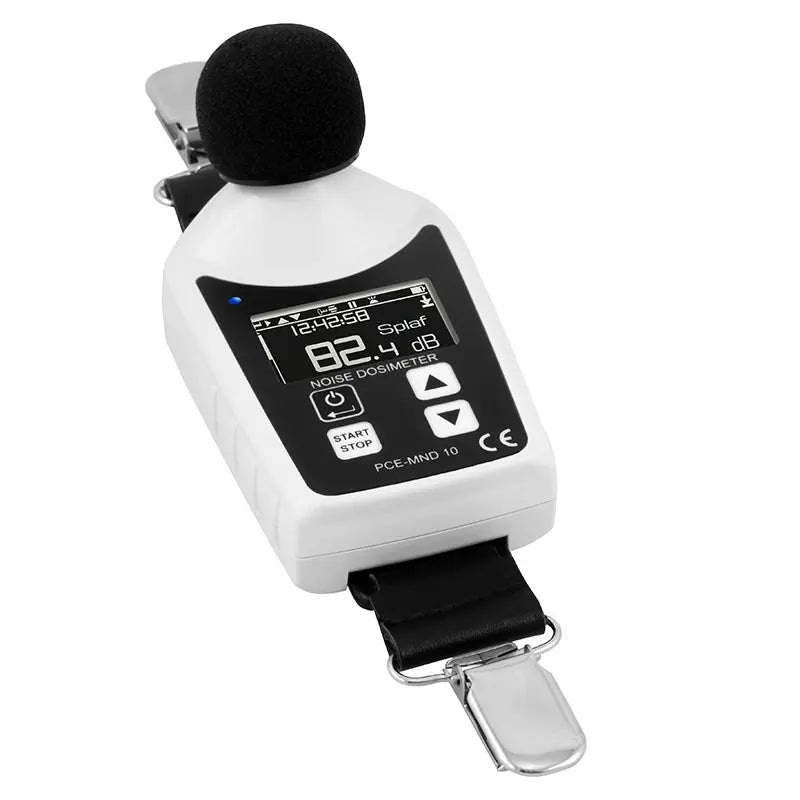

Introducing the advanced decibel meter designed for workplace noise level assessment, meeting the IEC 61252:2002 standards This badge-style device boasts an impressive measuring range of 70 to 140 dB and supports frequency weightings A, B, and Z, making it ideal for accurate noise dose monitoring
Users can choose from fast, slow, or impulse time weightings to suit different environments Equipped with a robust 470 mAh battery, this meter offers over 15 hours of continuous use, ensuring reliable performance throughout the workday.
This versatile instrument allows the setup of up to three virtual noise dose meters, enabling simultaneous measurement across multiple standards The display supports up to 14 customizable measurement windows for detailed insights

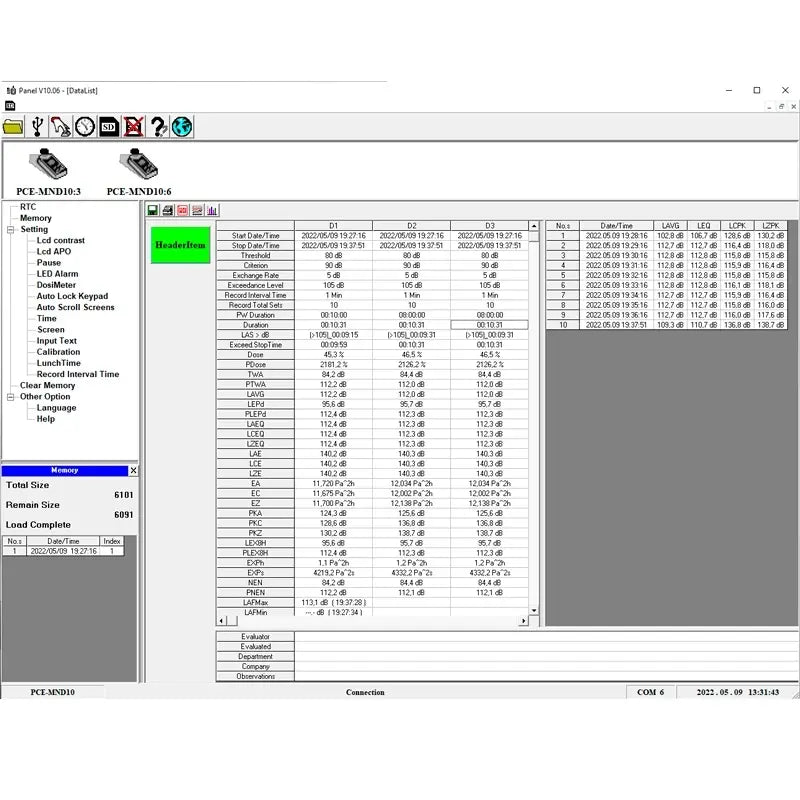

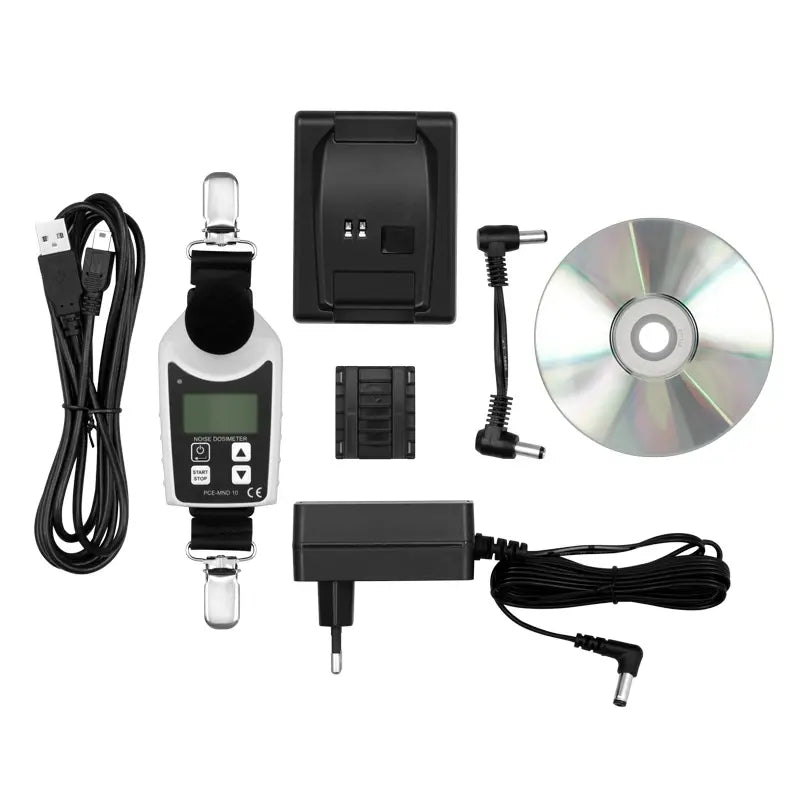

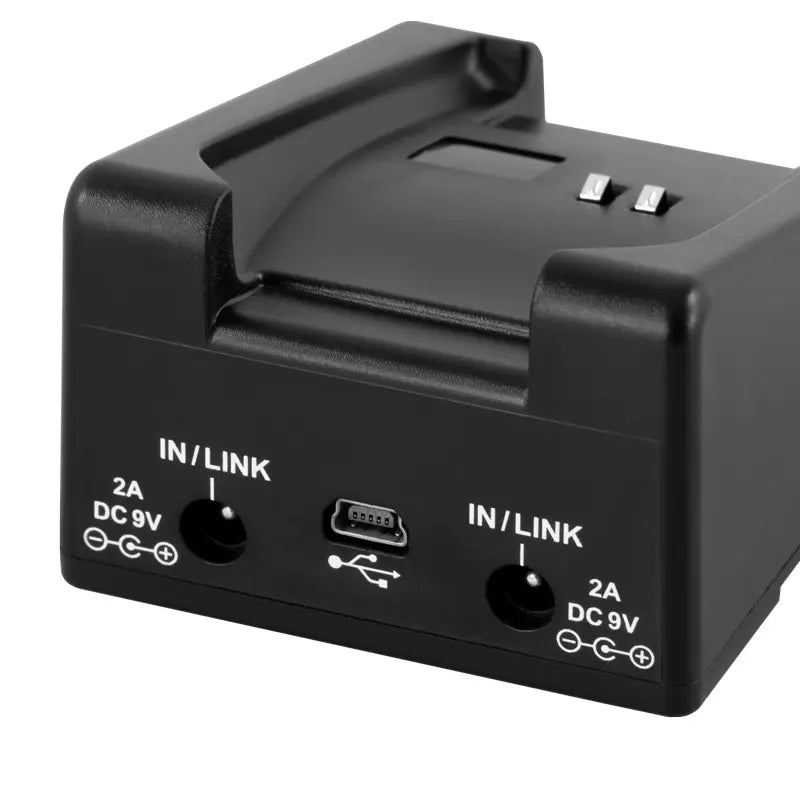

Data transfer to a PC is streamlined via the integrated charging station, where recorded measurement data can be analyzed using dedicated software All settings for the device can also be effortlessly adjusted through this software.
A unique feature of this decibel meter is its ability to couple charging stations together, allowing multiple meters to draw power from a single source You can charge up to four noise dose meters at once, enhancing efficiency in audio monitoring

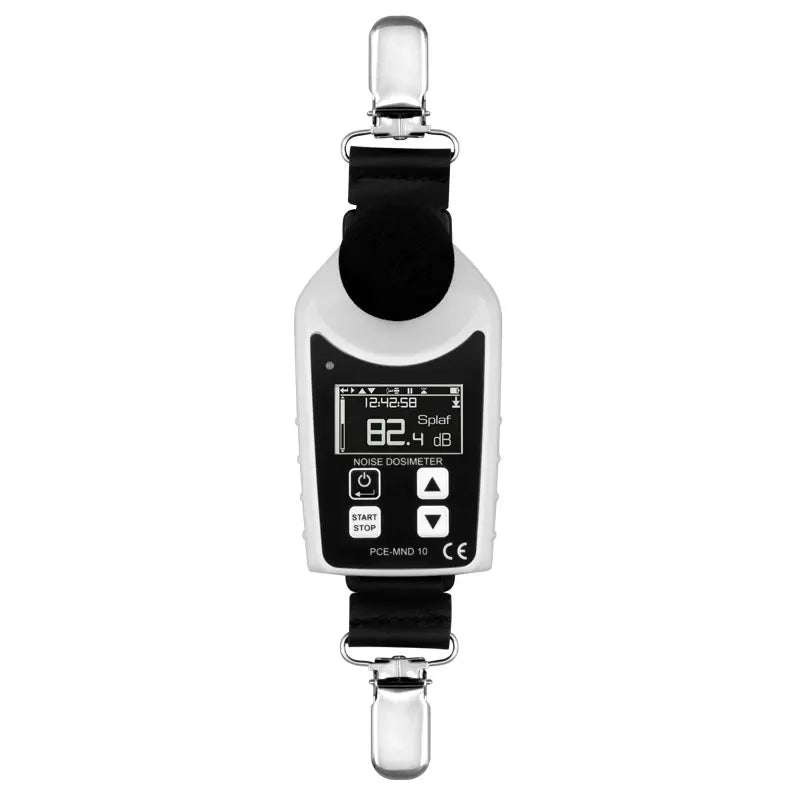

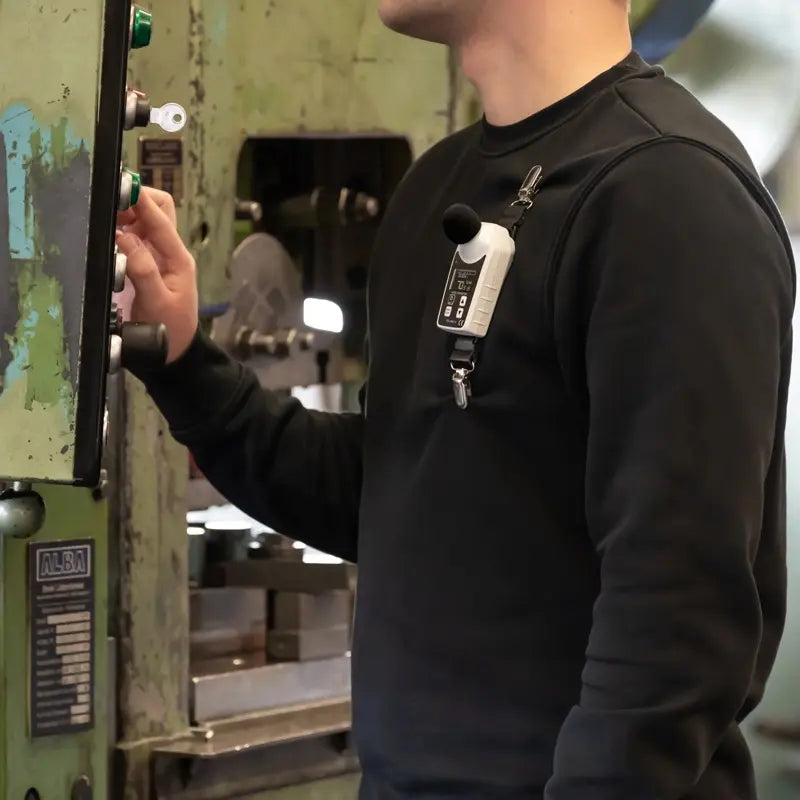

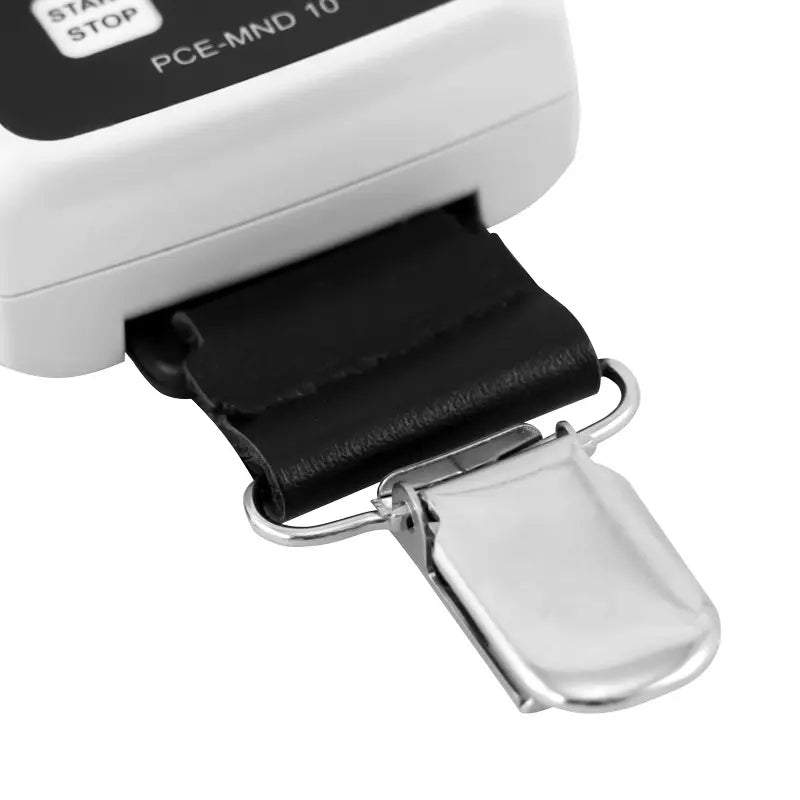

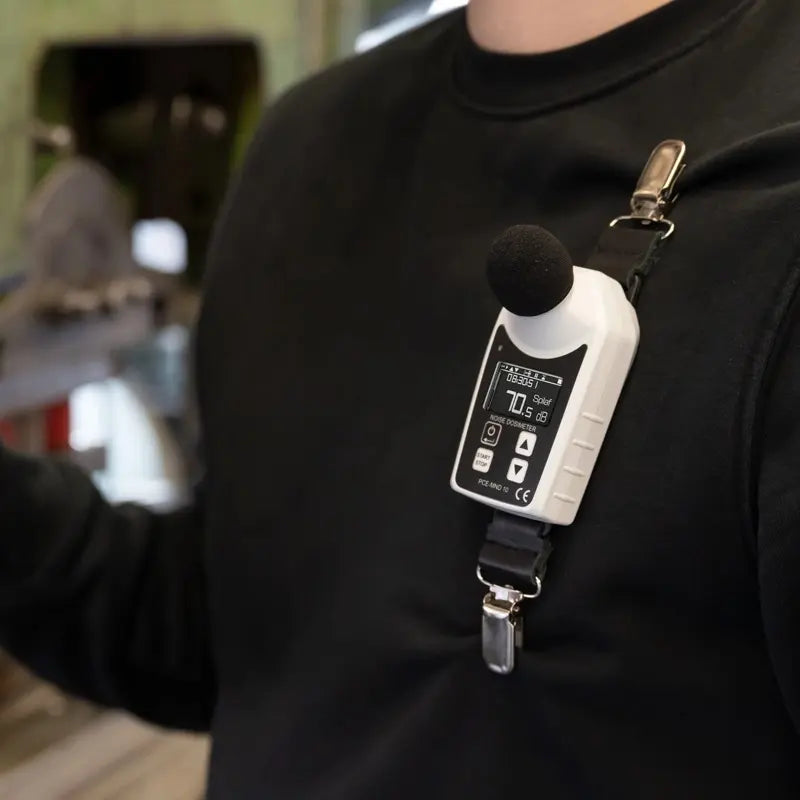

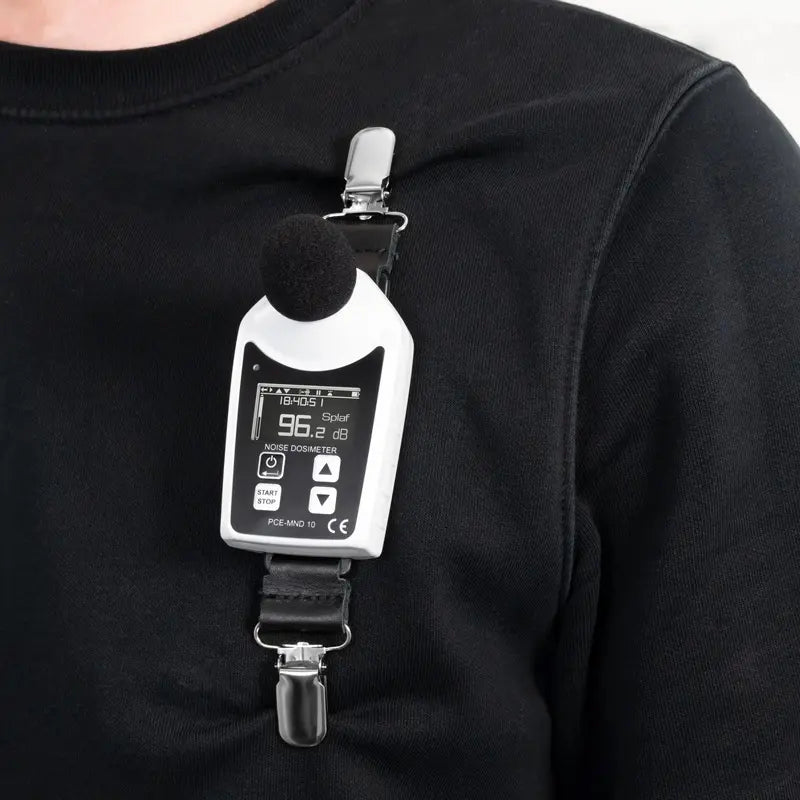

For secure attachment, the device comes with two crocodile clips for easy fastening to work attire It’s recommended to maintain a distance of 10 to 15 cm (3.
9 to 59 inches) between the meter and the user's ears to ensure accurate readings Perfect for professionals looking to assess workplace noise levels effectively!.
Features and Benefits:
•Frequency weighting A, B and Z.
•Battery life of >15 hours.
•Software for setting the parameters.
•Measuring range 70 ... 140 dB.
•IEC 61252:2002, ANSI S1.25-1991.
•Optional with ISO calibration certificate.
Specifications:
| Measuring range | 70 … 140 dB (A, C), 90 … 140 dB (Z) |
| Measuring range (peak value) | 103 … 143 dB PEAK |
| Resolution | 0.1 dB |
| Accuracy | class 2 |
| Frequency range | 31.5 Hz … 8 kHz |
| Frequency weightings | A, C and Z |
| Time weighting | fast, slow, impulse |
| Adjustable level increase | 3, 4, 5, 6 dB |
| Threshold adjustment range | 70 … 90 dB |
| Threshold resolution | 1 dB |
| Adjustment range of the criterion level | 70 … 90 dB |
| Resolution of the criterion level | 1 dB |
| Display if the ambient condition is too loud | >115 dB |
| Memory | 30 measurement runs with total 6101 measuring points |
| Timer | 16 timers for an automatic data logging and 99 timers |
| Warm-up time | 10 seconds after power on |
| Microphone | 1/2 inch electret condenser |

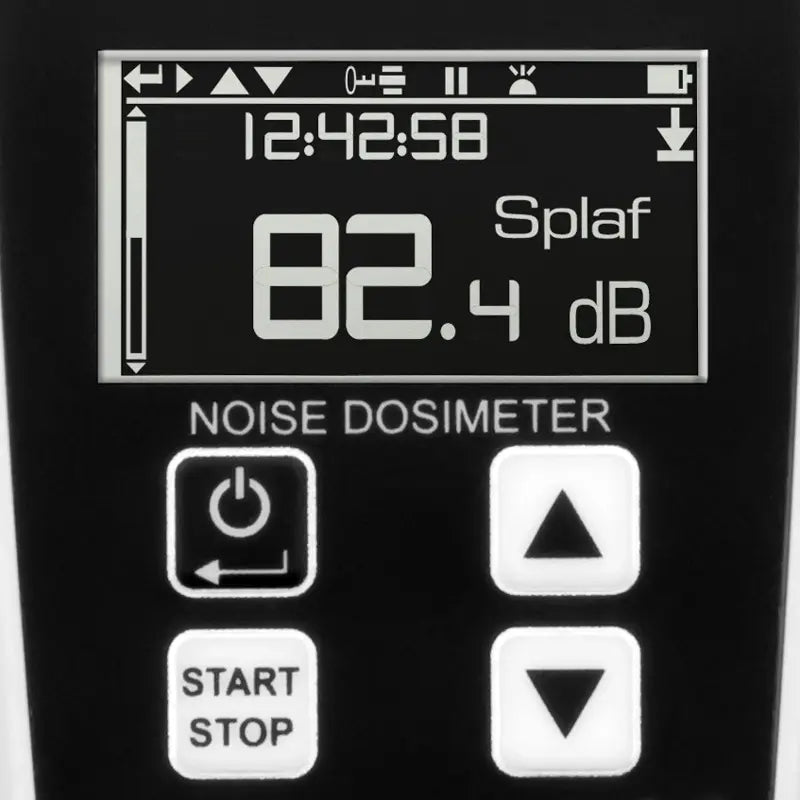

| Display | 128 x 64 pixel LC display |
| Number of virtual dosimeters | 3 |
| Dosimeter standards | OSHA-80, OSHA-90, MSHA-80, MSHA-90, DOD, ACGIH, ISO-85, ISO-90, NR-15, NHO-01 |
| Measurement parameters for all virtual dosimeter | DOSE (Dose), PDOSE (Pdos), TWA (Twa), PTWA (PTwa), LAVG (Lavg), LEPd (Lepd), PLEPd (PLepd), Exceed time (Las>105 or Las >115), LEQ (Laeq, Lceq, Lzeq), SEL (LaE, LCE or LZE), SEpa2h (Ea, Ec, Ez), PEAK (Pka, Pkc or Pkz), LEX8H (Lex8h), PLEX8H (PLex8h), EXPHrs (Exph), EXPsec (Exps), NEN |
| Additional measurement parameters | MAX/MIN, L05, L10, L50, L90 and L95 at a 20 ms interval and a difference of 0.1 dB, LAEQ05, LAEQ10, LAEQ50, LAEQ90, LAEQ95 at a 1 s interval and a difference of 0.1 dB |
| Interface | USB interface on the charging station |
| Power supply (battery) | 3.7 V, 470 mAh, lithium polymer battery |
| Power supply (mains adapter) | primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.7 A, secondary: 9 V DC, 2 A |
| Operating time | >15 hours at 23 °C / 73 °F |
| Operating conditions | 0 … 50 °C (32 … 122 °F), 10 … 95 % RH, non-condensing |
| Storage conditions | -10 … +60 °C (14 … 140 °F), 10 … 75 % RH, non-condensing |
| Dimensions | 84 x 49 x 55 mm / 3.3 x 1.9 x 2.2 inch |
