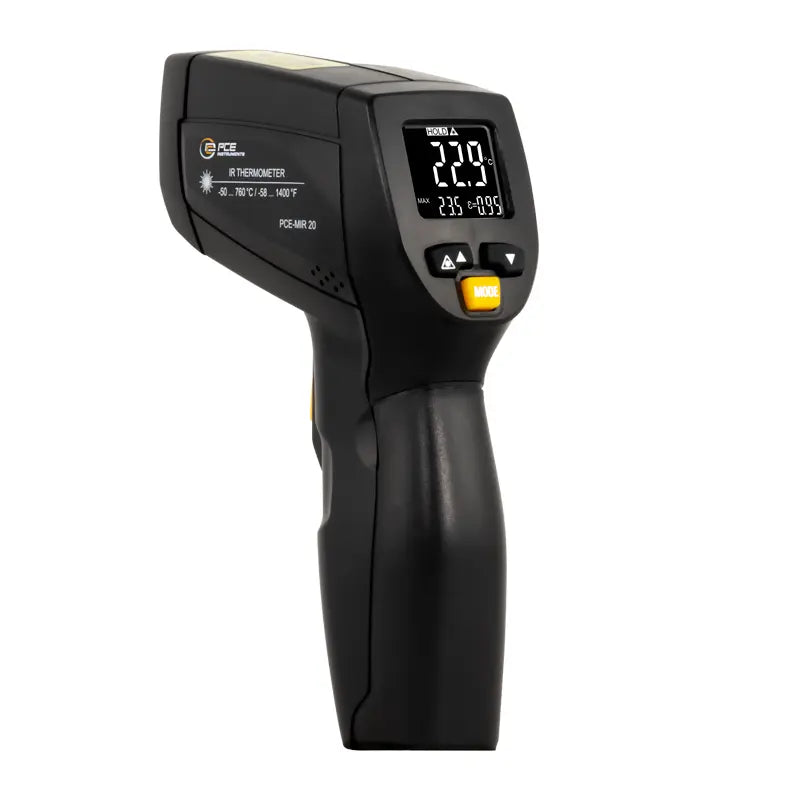

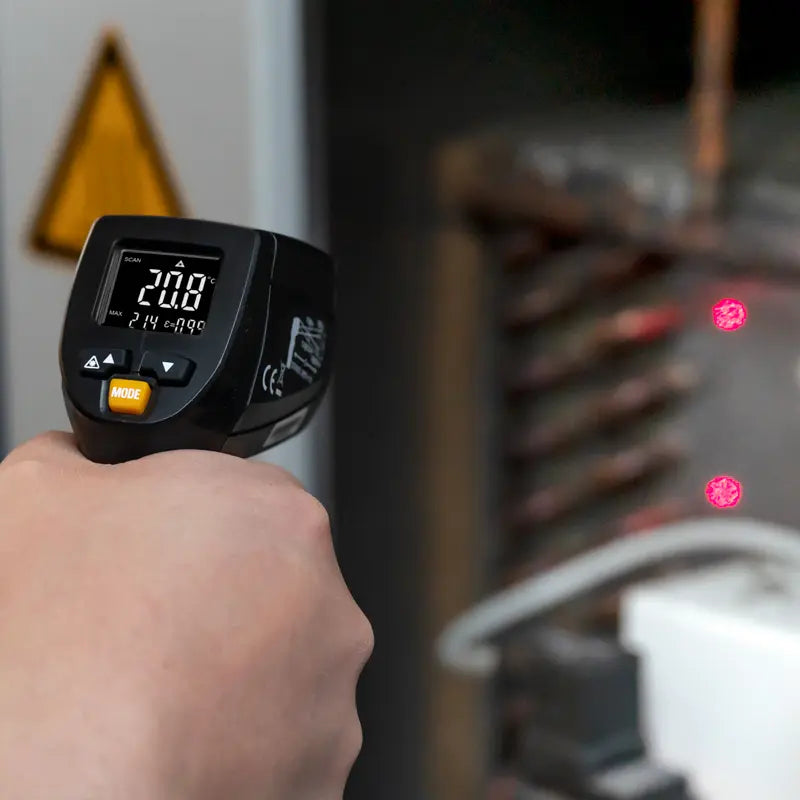

PCE-MIR 20 - Double Laser Thermometer, -50 to +760 °C Range, Backlit Display

PCE-MIR 20 - Double Laser Thermometer, -50 to +760 °C Range, Backlit Display

SKU: SKU: PCE-MIR 20   Download PDF

Select a Variant:
  • PCE-MIR 20 - Double Laser Thermometer, -50 to +760 °C Range, Backlit Display
Qty:
Regular price Now $77.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $77.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-MIR 20 thermometer, a high-performance tool designed for accurate temperature measurement across a broad range of -50 to +760 °C This device features a dual laser system that enhances aiming precision, making it easier to take readings on various surfaces The backlit display allows for easy visibility in low light conditions, and users can tailor emission values as needed Additionally, this thermometer is equipped with customizable alarms for minimum and maximum temperature thresholds, ensuring you stay within desired limits.

With an impressive accuracy rating of ±2 % ±2 °C for temperatures ranging from 20 to 760 °C, it guarantees reliable results For added assurance, an ISO calibration certificate is available upon request The intuitive design includes a measuring button that holds the last recorded temperature until a new measurement is taken, streamlining your experience.

Features and Benefits:

    •Measuring range from -50 to +760 °C.

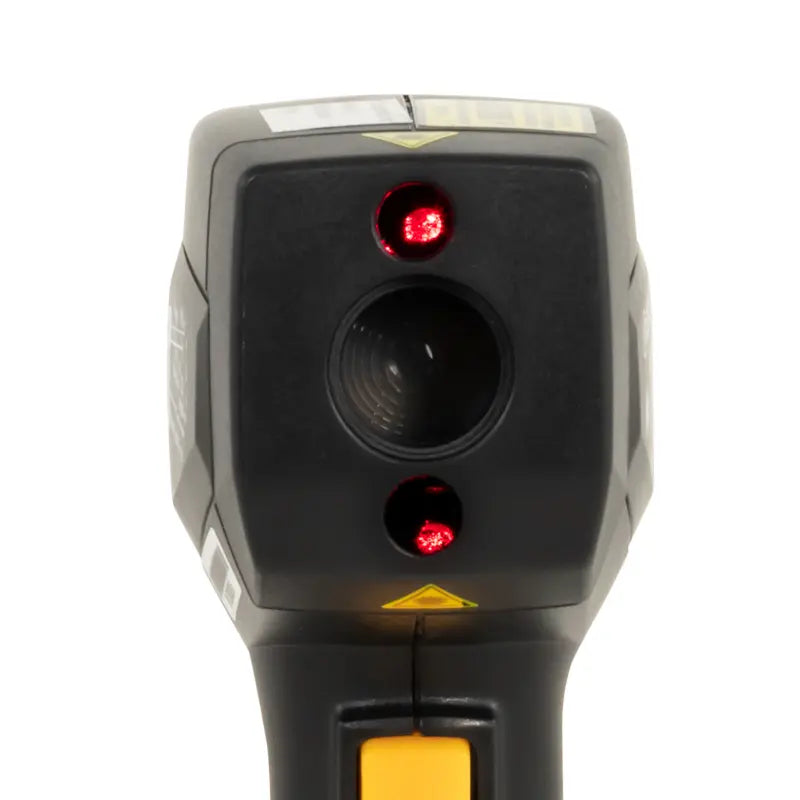

    •Double laser for enhanced orientation.

    •Limit value alarm for maximum and minimum temperatures.

    •Adjustable emission value.

    •Backlit display for easy reading.

    •Optional ISO calibration certificate available.

Specifications:

 Measuring range: -50 … +760 °C / -58 … +1400 °F
 Resolution: 0.1 °C / 0.1 °F
 Accuracy: ±3 °C / 5.4 °F at -50 … +20 °C / -58 … +68 °F; ±2 % ±2 °C / 3.6 °F at 20 … 760 °C / 68 …1400 °F
 Repeatability: ±1 °C / ±1.8 °F

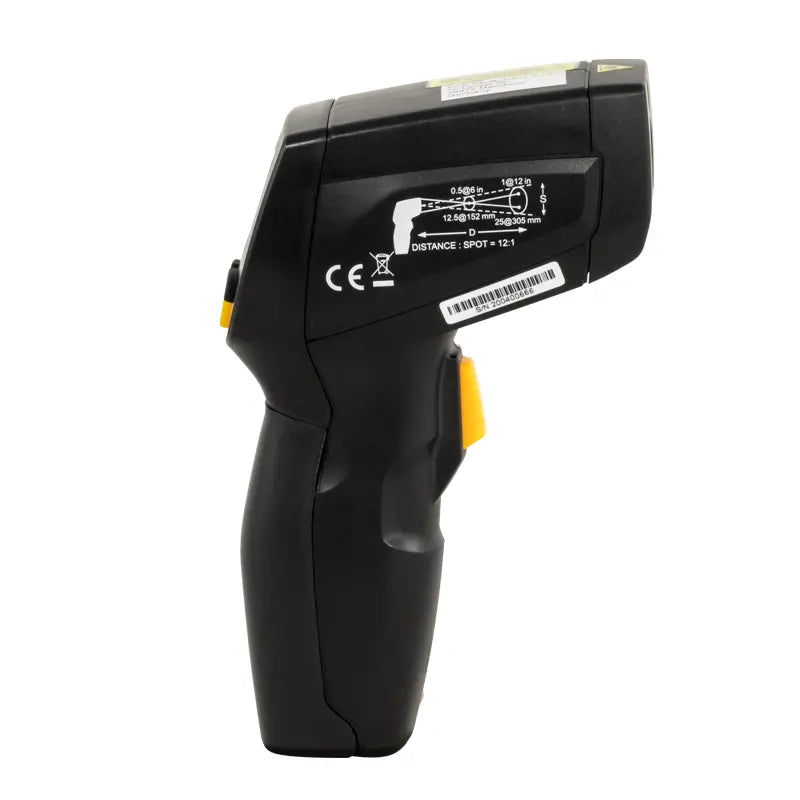

 Spot ratio: 12:1
 Emissivity value: 0.10 … 1.00
 Measuring rate: 2 Hz
 Spectral range: 8 … 14 µm
 Overload indication: „ - - - - „
 Laser: Double laser; output power: <1 mW; Wavelength: 630 ... 670 mm; Laser class: 2

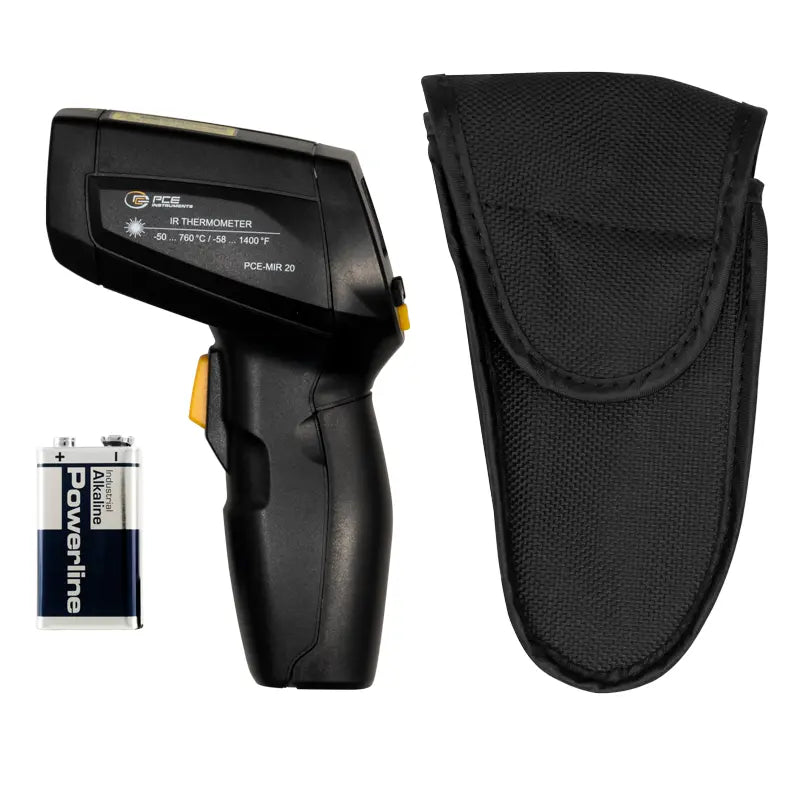

 Power supply: 9 V block battery
 Operating conditions: 0 ... 50 °C / 32 ... 122 °F, <90 % r. h.
 Storage conditions: -10 ... 60 °C / 14 ... 140 °F, <80 % r. h.
 Dimensions: 175 x 75 x 35 mm
