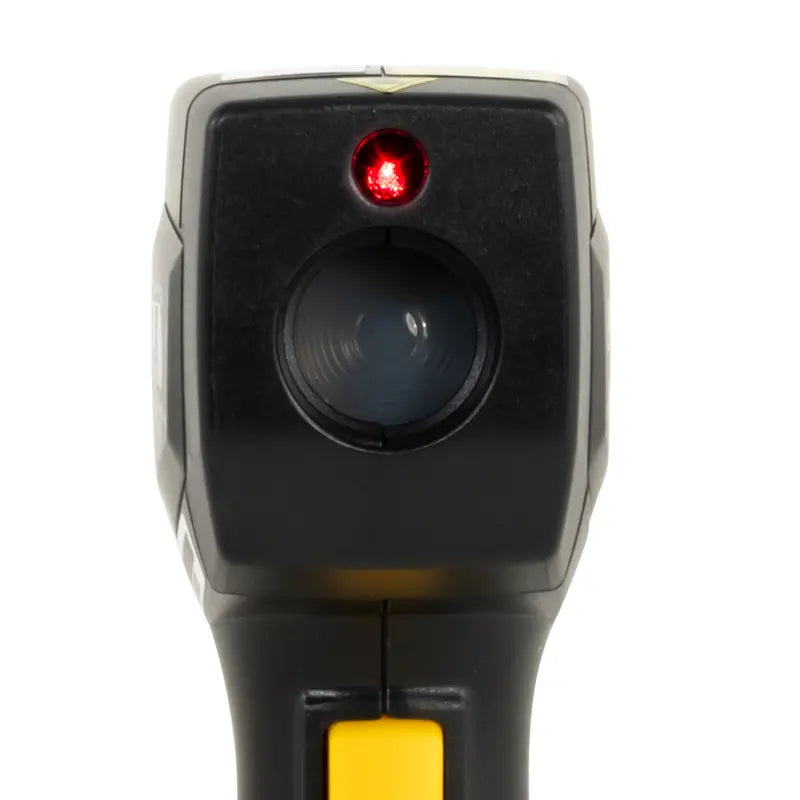

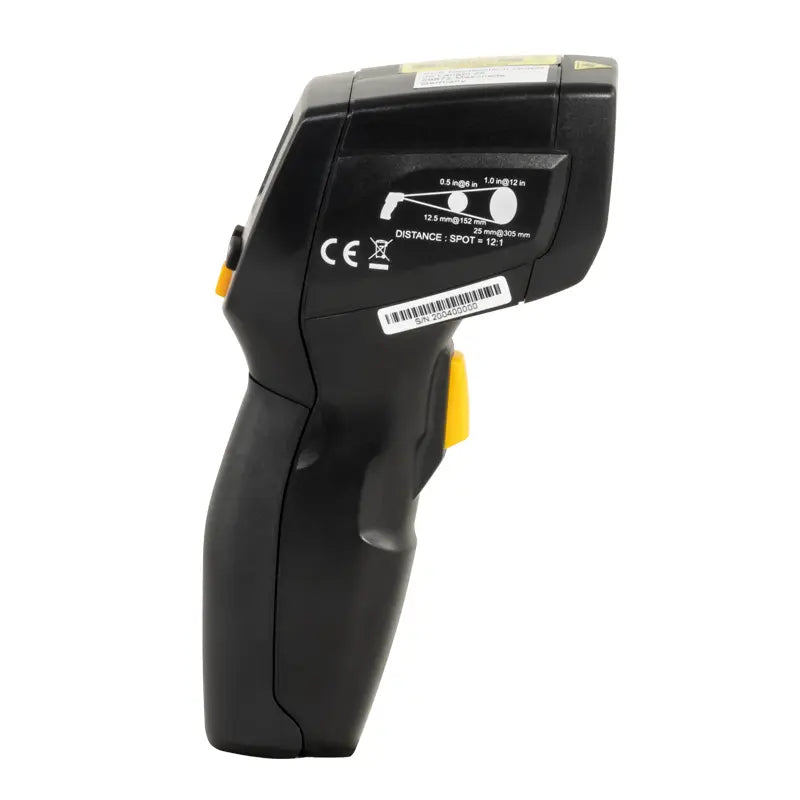

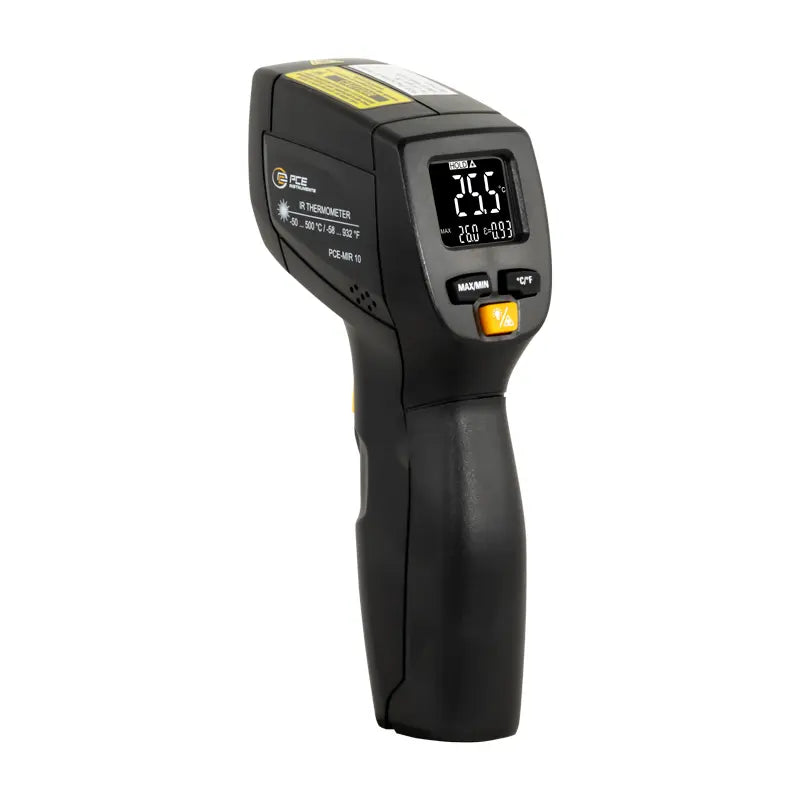

PCE-MIR 10 - 12:1 Infrared Thermometer, -50 to +500 °C Range, Laser Pointer

PCE-MIR 10 - 12:1 Infrared Thermometer, -50 to +500 °C Range, Laser Pointer

SKU: SKU: PCE-MIR 10   Download PDF

Select a Variant:
  • PCE-MIR 10 - 12:1 Infrared Thermometer, -50 to +500 °C Range, Laser Pointer
Qty:
Regular price Now $47.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $47.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile infrared thermometer with an impressive measuring capacity from -50 °C to +500 °C This device boasts an accuracy of ±2% ±2 °C within the range of 20 °C to 500 °C, ensuring reliable temperature readings Equipped with a practical laser pointer that has a low output power of <1 mW, it allows for precise targeting of the measurement area, which features a measuring spot ratio of 12:1.

The thermometer not only displays both the highest and lowest recorded values but also includes a backlit display for better visibility in various lighting conditions Engineered for convenience, it powers up instantly with a simple press of the measuring button, capturing the temperature immediately; the last reading will remain visible until the next measurement is taken Compact and easy to store, this thermometer is perfect for various applications, such as checking surface temperatures of electric motors, combustion engines, or heat sinks.

For those who require verified accuracy, an ISO calibration certificate is available as an option Upgrade your measurement toolkit with this precise and user-friendly infrared thermometer.

Features and Benefits:

    •Measuring range -50 ... 500 °C.

    •Automatic switch-off.

    •Immediate operating range.

    •Measuring ratio 12:1.

    •Max / Min function.

    •Optionally with ISO calibration certificate.

    •Surface temperature testing of electric motors.

    •Surface temperature testing of combustion engines.

    •Surface temperature testing of heat sinks.

Specifications:

 Measuring range -50 … +500 °C / -58 … +932 °F
 Resolution 0,1 °C / 0,1 °F
 Accuracy ±3 °C / 5,4 °F bei -50 … +20 °C / -58 … +68 °F; ±2 % ±2 °C / 3,6 °F bei 20 … 500 °C / 68 … 932 °F
 Repeatability ±1 °C / ±1,8 °F
 Spot ratio 12:1
 Emission value 0,95 fixed
 Measuring rate 2 Hz
 Spectral range 8 … 14 µm
 Overload indicator „ - - - - „
 Laser Output power: <1 mW; wavelength: 630 ... 670 mm; Laser class: 2
 Power supply 9 V block battery
 Operating conditions 00 ... 50 °C / 32 ... 122 °F, <90 % r. h.
 Storage conditions -10 ... 60 °C / 14 ... 140 °F, <80 % r. h.
 Dimensions 175 x 75 x 35 mm
