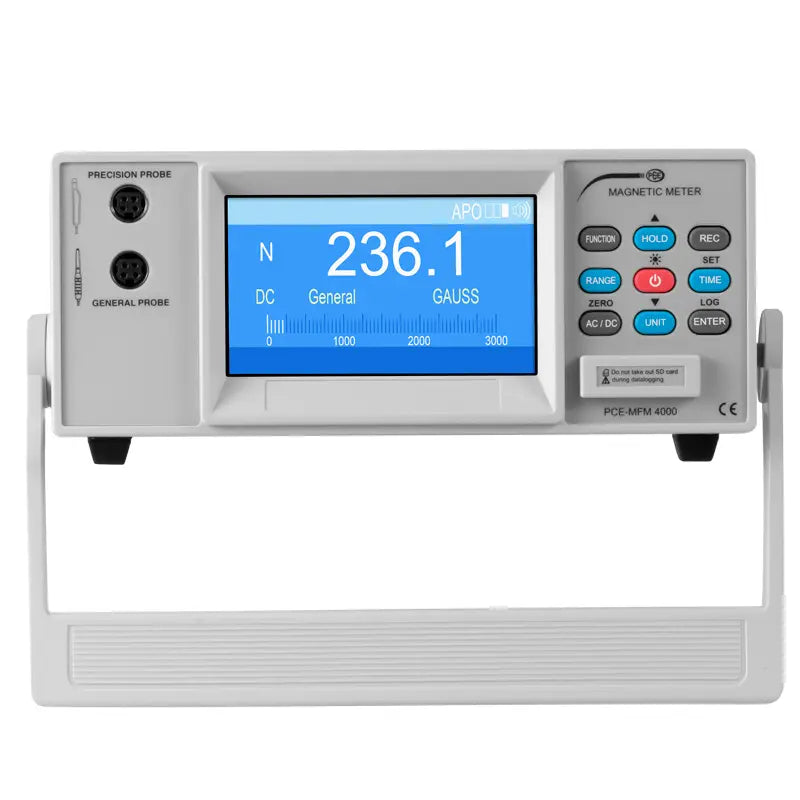

PCE-MFM 4000 - Precision Magnetometer for AC/DC Fields with LCD Display

PCE-MFM 4000 - Precision Magnetometer for AC/DC Fields with LCD Display

SKU: PCE-MFM 4000   Download PDF

Select a Variant:
  • PCE-MFM 4000 - Precision Magnetometer for AC/DC Fields with LCD Display
Qty:
Now $1,300.00   Web pricing policy
BEFORE   $0.00 Now $1,300.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing our advanced magnetometer, expertly designed to measure both AC and DC magnetic fields with exceptional precision This laboratory-grade tabletop device features a clear LCD display and comes equipped with an SD data logger and a serial interface for seamless data management Capable of handling general magnetic field measurements within the Gauss and milli-Tesla range, this unit also includes a precision sensor for more sensitive readings in the milli Gauss and micro-Tesla ranges.

Benefit from automatic temperature compensation and take note of the DC magnetic field's polarity, which is displayed alongside the measurement values The data logging functionality allows users to store recorded values directly onto an SD memory card at user-defined intervals, with a convenient option to save up to 99 measurements at once The information is readily available in Excel format, streamlining your data analysis without needing extra software.

Whether for quality assurance, testing laboratories, or research applications, this magnetometer’s bright and user-friendly display shows critical magnetic field strength metrics It also features an auto shut-off for energy efficiency and can be powered by 6 x 15V AA batteries or a 9V plug-in power supply, making it a reliable choice for stationary measurements.

Features and Benefits:

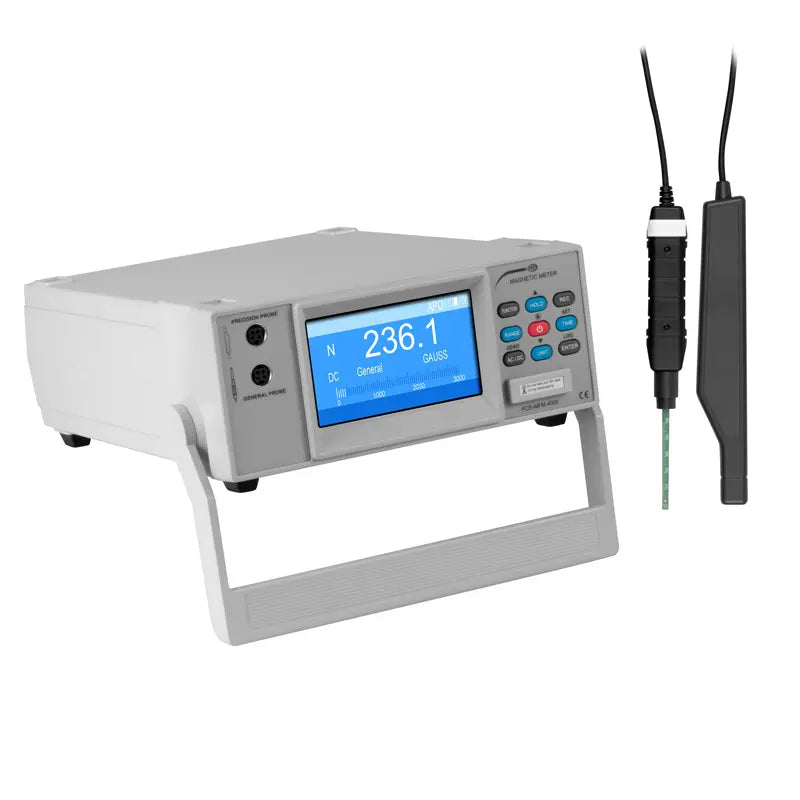

    •Tabletop device with 2 sensors.

    •General Probe Range: 0-3000 milli-Tesla (0-30,000 Gauss).

    •Precision Probe Range: 0-300 micro-Tesla (0-3000 milli-Gauss).

    •For static and changing magnetic fields.

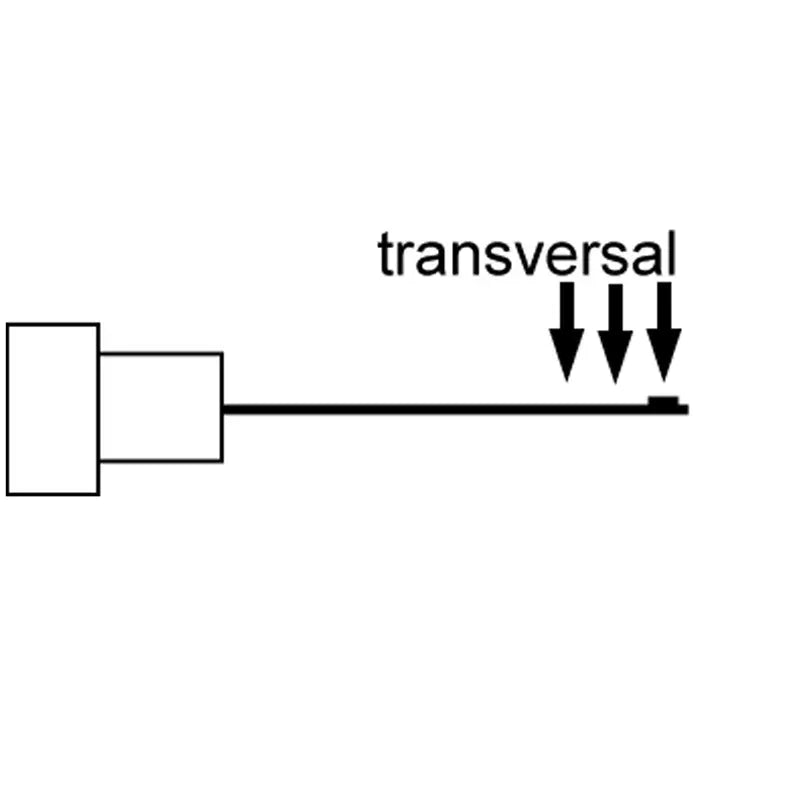

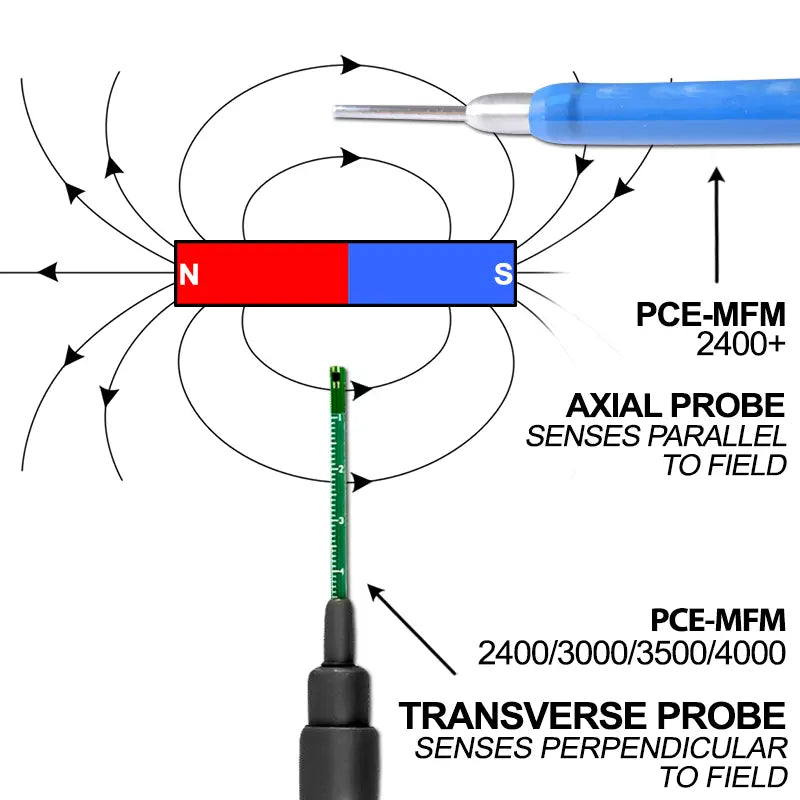

    •Highly accurate Transverse Hall sensor.

    •Different units selectable (mG / µT).

    •Data storage on SD memory card.

    •Automatic shutdown.

    •Serial interface.

    •Max.- min.- hold function.

    •Laboratories.

    •Quality assurance.

    •Research and development.

    •Test laboratories.

Specifications:

 Measuring function DC magnetic field precision sensor ± 30µT, ± 300 µT, ± 300 mG, ± 3000 mG
 Resolution 0.01 µT, 0.1μT, 0.1 mG, 1 mG
 Accuracy ± (2% of MB + 2 mG) @ 0 ... 100µT / 1000 G
 Measuring function DC magnetic field standard sensor ± 300 mT, ± 3000 mT, ± 3000 G, ± 30000 G
 Measuring function AC magnetic field standard sensor 50/60 Hz 30μT, 300 µT, 300 mG, 3000 mG
 General technical data {'Measuring rate': '1 second', 'Measuring direction': 'Uniaxially', 'Display': 'LCD display', 'Power supply': '6 x 1.5V AA batteries, optional 9V power supply', 'Current consumption': 'Approx. 138-mA', 'Device Dimension': '292 x 236 x 98 mm / 11.5 x 9.3 x 3.9 in', 'Precision sensor Dimension': '195 x 25 x 19 mm / 7.7 x 1 x 0.7 in', 'Standard sensor Dimension': '177 x 29 x 17 mm / 7 x 1.1 x 0.7 in', 'Environmental conditions': '0 ... 50°C / 32 ... 122°F, max. 85% RH'}
