PCE-MFM 3500 - Compact Magnetometer with 30,000 G Range & Memory Storage

PCE-MFM 3500 - Compact Magnetometer with 30,000 G Range & Memory Storage

SKU: PCE-MFM 3500   Download PDF

Select a Variant:
  • PCE-MFM 3500 - Compact Magnetometer with 30,000 G Range & Memory Storage
Qty:
Now $359.00   Web pricing policy
BEFORE   $0.00 Now $359.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

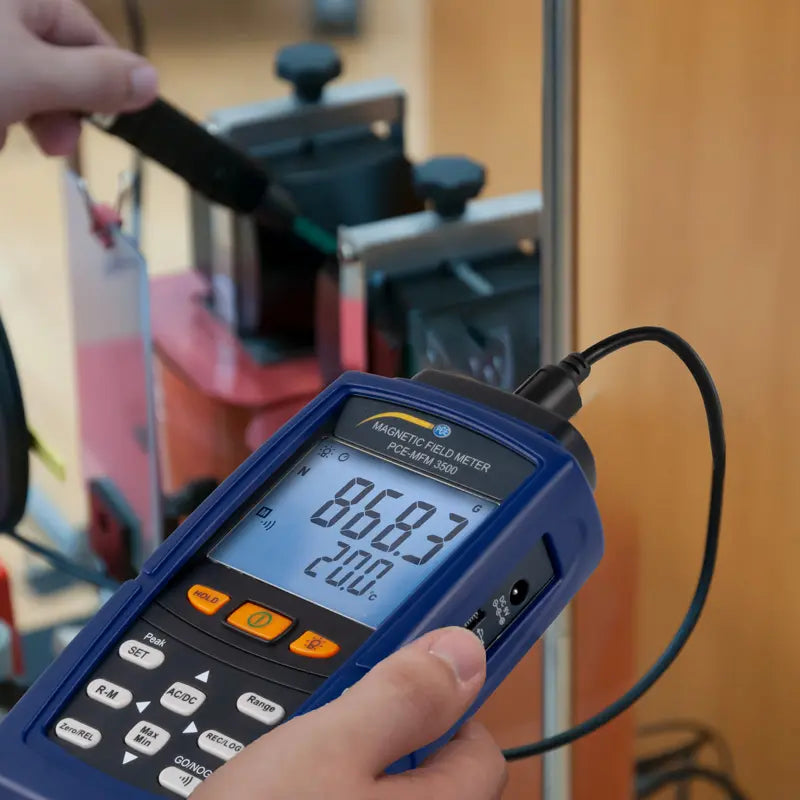

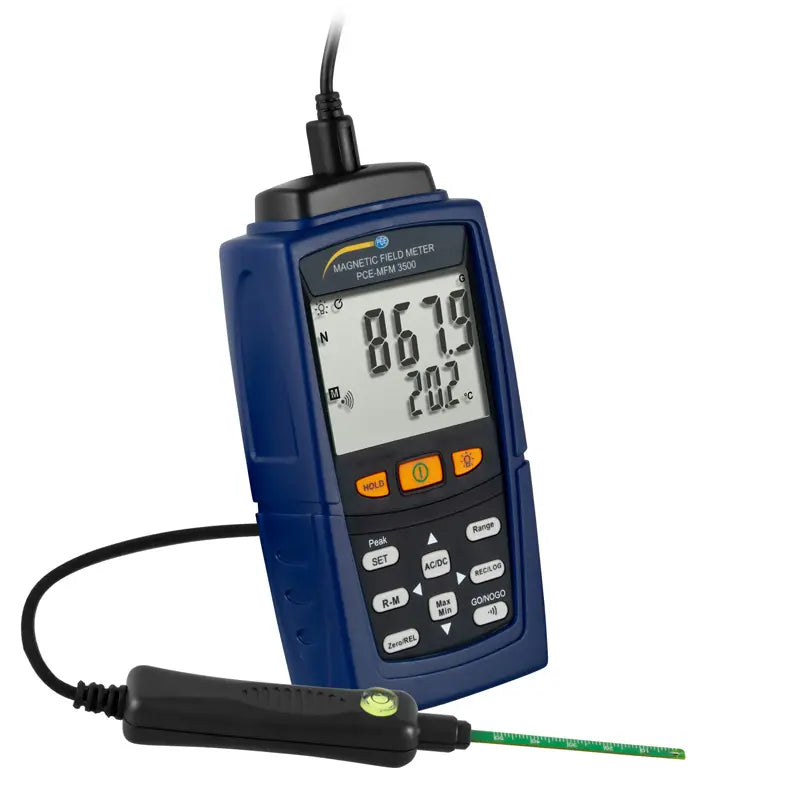

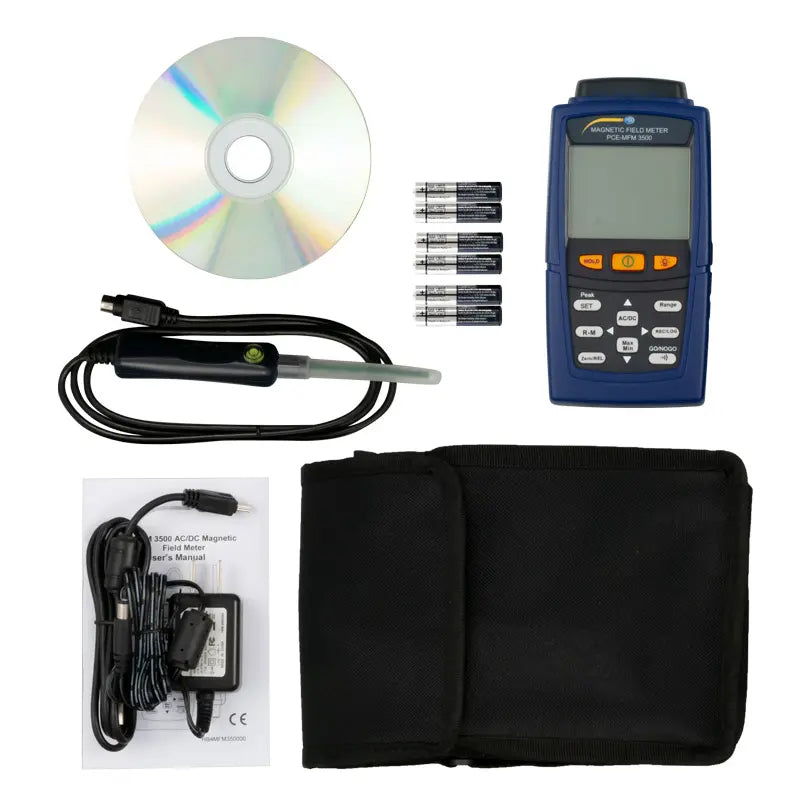

Introducing the PCE-MFM 3500 Magnetometer, a dependable instrument for accurately measuring magnetic fields using an external sensor Capable of detecting magnetic fields up to 30,000 G, this device is equipped with essential features like a leveling bubble for precise positioning and a built-in memory that can save up to 7,000 measurements Enjoy real-time data access with the accompanying software designed for live viewing.

Power it up with either battery or mains electricity, benefiting from an impressive battery life of around 100 hours The sensor comes with a cable length of approximately 1 m (33 ft), allowing for flexibility during use This magnetometer is versatile, handling both static (permanent magnets) and alternating magnetic fields, while also providing a temperature measurement feature Additionally, it includes an adjustable alarm that alerts users when specified thresholds are surpassed.

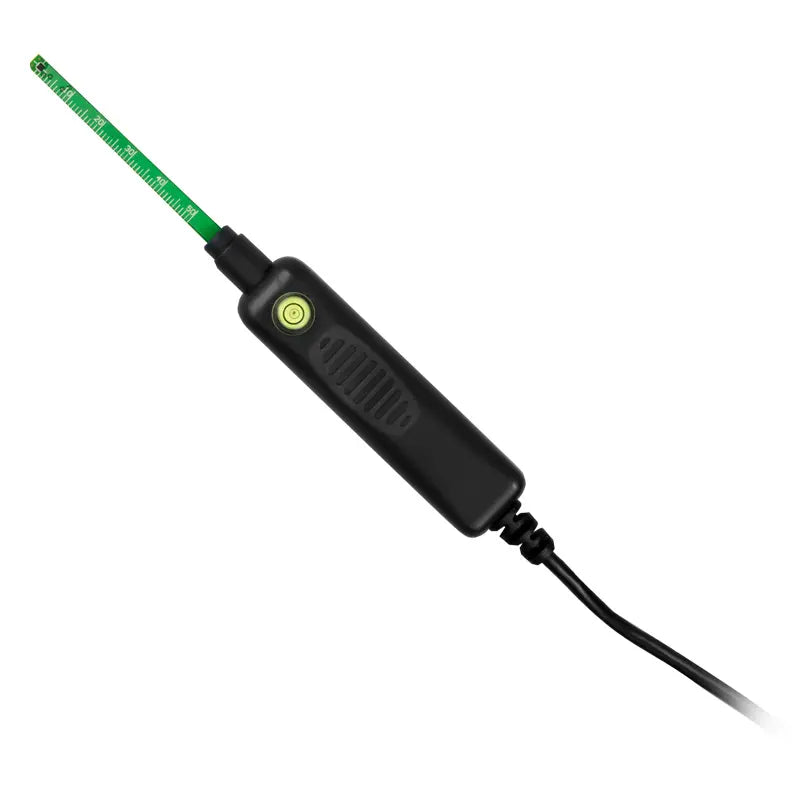

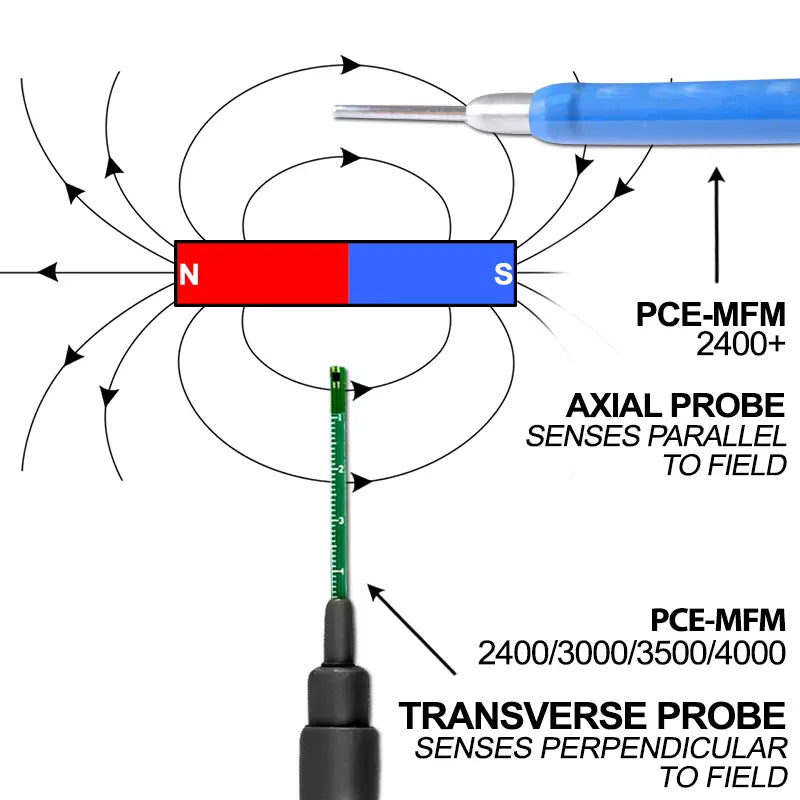

The flat design of the external probe allows for measurements in confined spaces, making this device perfect for a wide range of applications.

Features and Benefits:

    •Adjustable alarm function.

    •Data memory with PC connection.

    •Temperature measurement.

    •Switchable AC / DC measurement.

    •Sensor alignment with bubble possible.

    •Rubber protective cover for the handset.

Specifications:

 Measuring function DC Milli Tesla Measuring range: 300.00 mT; Resolution: 0.01 mT; Accuracy: ± (4% + 10 Dgt)
 Measuring function DC Gauss Measuring range: 3,000.0 G; Resolution: 0.1 G; Accuracy: ± (4% + 10 Dgt)
 Measuring function AC milli Tesla Measuring range: 150.00 mT; Resolution: 0.01 mT; Accuracy: ± (5% + 20 Dgt)
 Measuring function AC Gauss Measuring range: 1,500.0 G; Resolution: 0.1 G; Accuracy: ± (5% + 20 Dgt)
 Measuring function Temperature Measuring range: -20 ... 50°C; Resolution: ± 0.1°C; Accuracy: ± 1.0°C
 AC frequency range 40 ... 500 Hz
 Storage Manual: up to 200 values; Automatic: up to 7,000 values

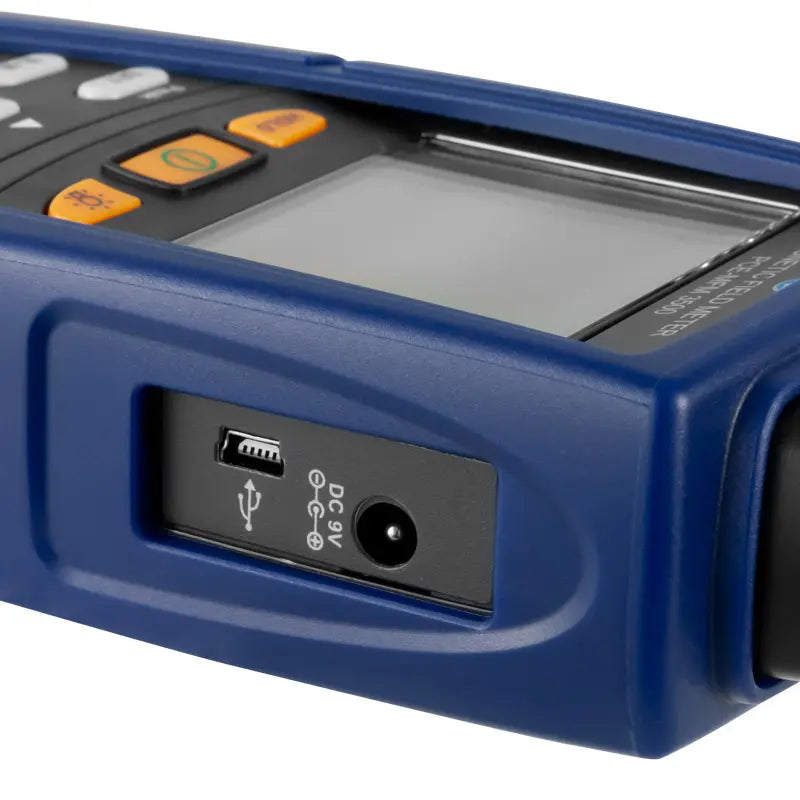

 Interface Mini USB

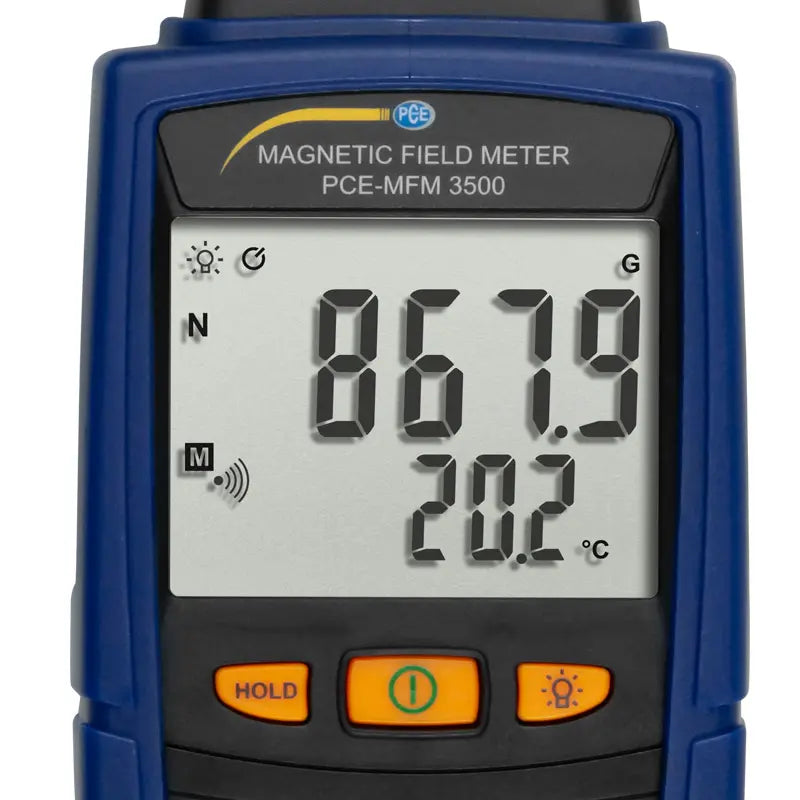

 Display LC display, 5 digits, display up to 30,000

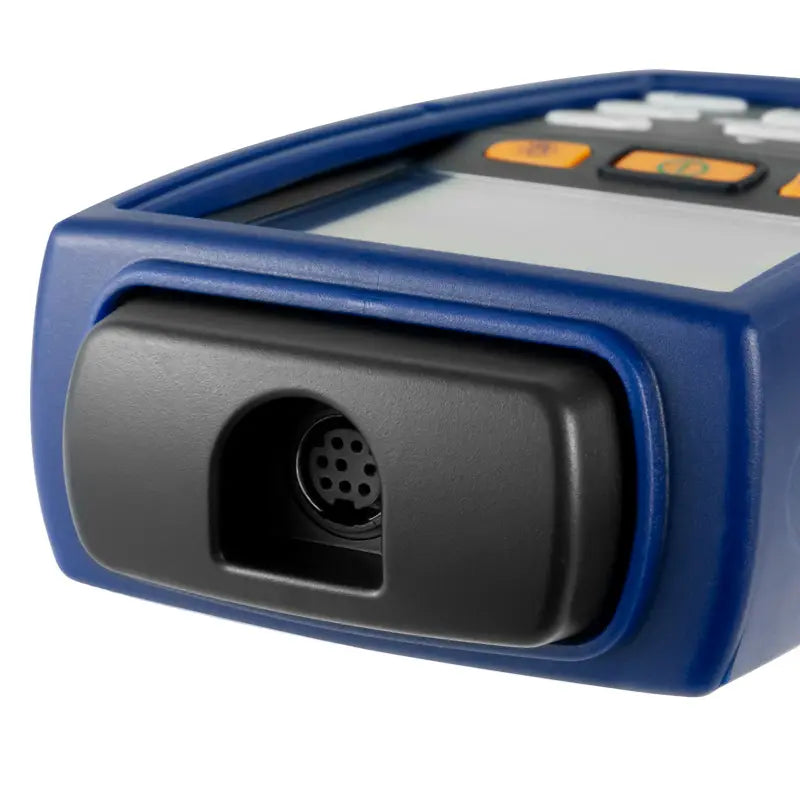

 Sensor Removable, cable length approx. 1 m / 3.3 ft
 Automatic switch-off function Off or after 15 minutes

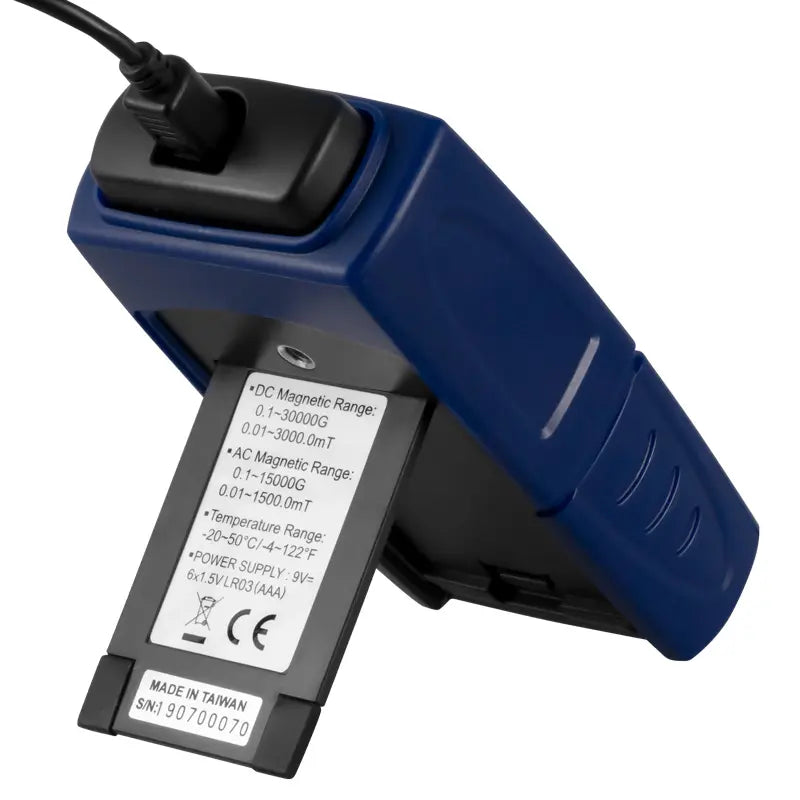

 Power supply batteries 6 x 1.5V AAA
 Battery Life Approximately 100 hours
 Power supply power supply Primary: 100 ... 240V; Secondary: 9V, 0.5A
 Operating conditions 5 ... 40°C / 41 ... 104°F, < 80% rh
 Storage conditions 0 ... 50°C / 32 ... 122°F, < 70% rh
 Working height 2,000 m / 6,561.7 ft
 Pollution degree 2
 Dimensions 156 x 73 x 35 mm / 6.1 x 2.9 x 1.4 in
