PCE-MFM 3000 - Handheld Magnetometer for Static & Dynamic Field Detection

Description:

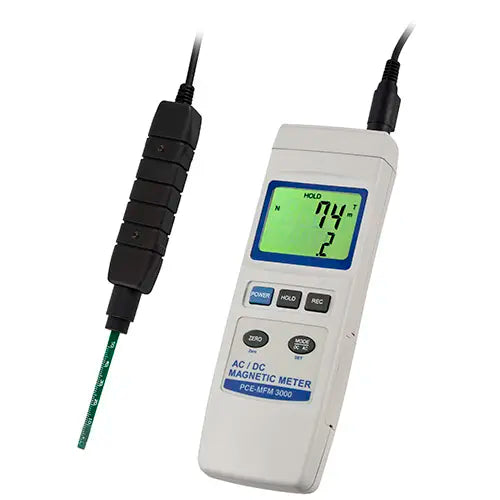

Introducing the PCE-MFM 3000, a versatile handheld magnetometer engineered to measure both static (DC) permanent magnetic fields and dynamic (AC) electromagnetic fields (EMFs) This portable device displays values in gauss (G) or milliTesla (mT) and comes equipped with an external sensor for enhanced functionality With the capacity to measure fields ranging from 0 to 30,000 G or 0 to 3,000 mT, the PCE-MFM 3000 boasts an impressive accuracy of ± 5% and offers a resolution of 0.

1 G or 001 mT It features an RS-232 port for seamless data transfer to your PC, and it can also be calibrated through an ISO lab for verified precision—check the accessories tab for more details Additional features make this magnetometer a practical choice for various applications, including maximum and minimum value recording, data hold capabilities, and an auto shutdown function to save power This tool is essential for evaluating magnetic components like valves, relays, and air-core transformers, combining accuracy, efficiency, and portability in one sleek design.

Features and Benefits:

•Measurement range: 0 ... 30000 G / 0 ... 3000 mT.

•Accuracy: ± 5%; + 20 digits (static) / + 10 digits (dynamic).

•Resolution: 0.1 G / 0.01 mT.

•Detects both static (DC) permanent magnetic and dynamic (AC) electromagnetic fields (EMFs).

•Displays measurement results in gauss (G) or milli Tesla (mT).

•Comes with an external sensor.

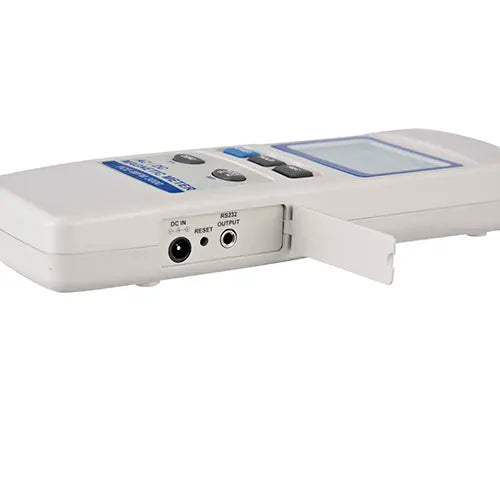

•Features an RS-232 port for downloading data to PC.

•Max, min, data hold and auto shutdown power-saving functionality.

•Ideal tool for checking magnetic valves, relays and air-core transformers.

•Useful for assessing permanent magnets and rare earth magnets made of Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), Alnico and Ferrite.

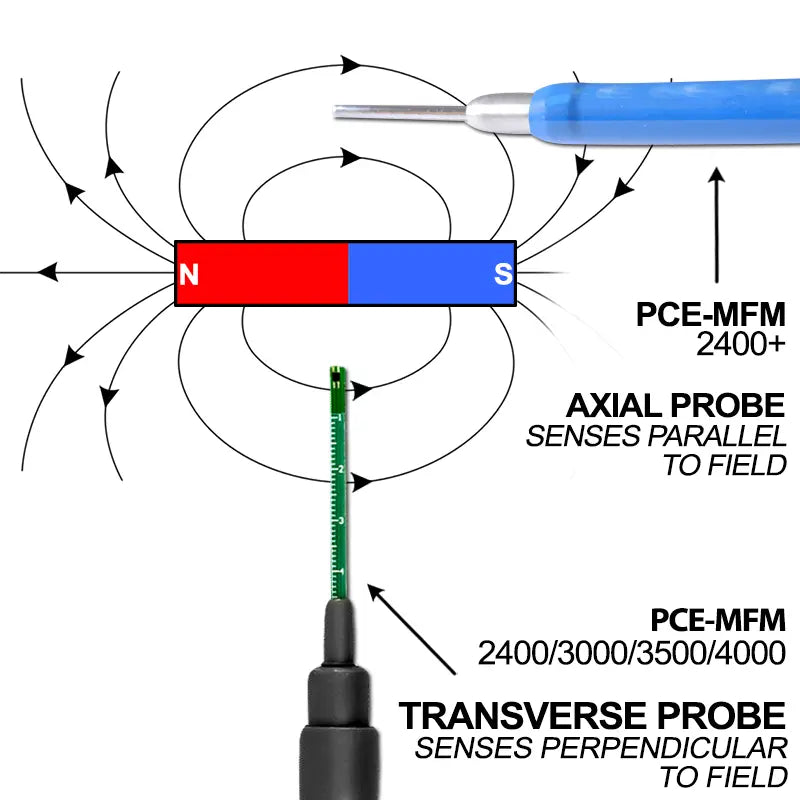

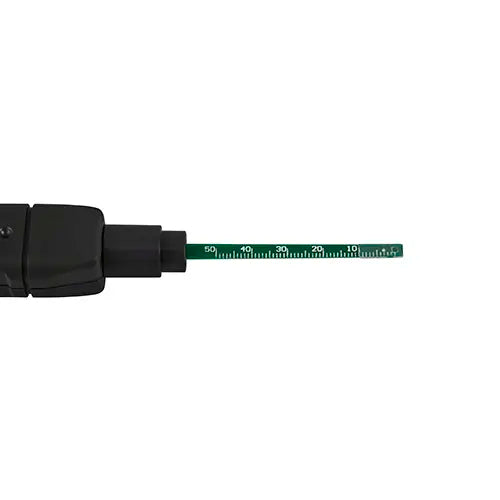

•External sensor's small, flat tip allows easy access through gaps and into tiny spaces.

•Measures through casings, coverings and housings, eliminating the need to dismantle parts for inspection.
