Product Information

Description:

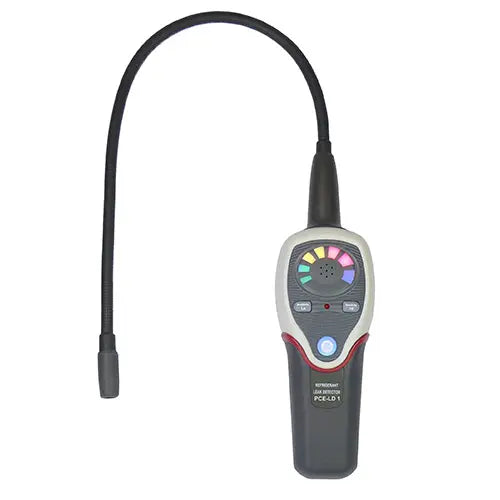

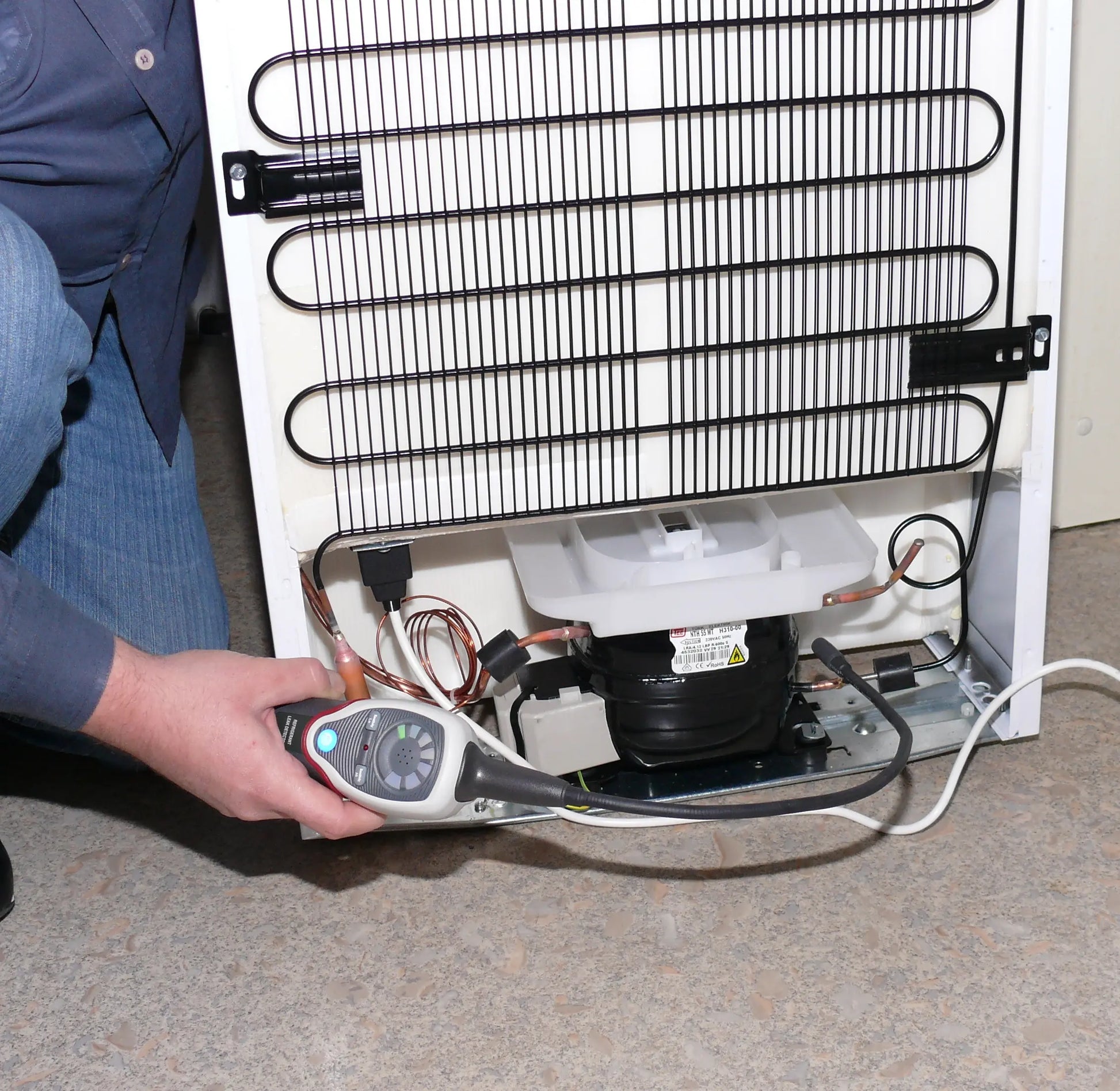

Introducing the PCE-LD 1 Refrigerant Gauge, a compact handheld device expertly crafted for identifying leaks in CFC/HFC refrigerant gases This highly sensitive tool is excellent for detecting gas escapes in HVACR refrigeration systems, even in challenging environments filled with other gases Its unique design features a gas sensor at the end of a flexible goose-neck tube, making it easy to reach tight or awkward spaces during inspections.

Features and Benefits:

•Detects R-134a, R-404A, Freon R-407C, R-410A and R-22 (per EN 14624).

•High / low sensitivity per SAE J1627 rating criteria.

•Audible and visual alarms.

•Easy to use.

•Tricolor LED indicator shows concentration of gas.

•Sensor life: Approx. 1 year - see accessories for replacement.

Specifications:

Sensitivity	Adjustable high / low (per SAE J1627 rating criteria): 6 g/yr or 30 g/yr for R-22 and R-134a; 8 g/yr or 40 g/yr for R404A, R-407C and R-410A
Warm-up time	Approx. 90 seconds
Gases detected	CFC / HFC refrigerants including R-134a, R-404A, Freon R-407C, R-410A and R-22 per standard EN 14624
Test cycle	Continuous
Sensor tube length	Approx. 390 mm / 15.35 in
Power supply	4 x AA batteries
Battery life	Approx. 40 hours of normal use
Auto shut-off	After 10 minutes of inactivity
Dimensions	6.8 x 2.6 x 2.2 in / 173 x 66 x 56 mm
