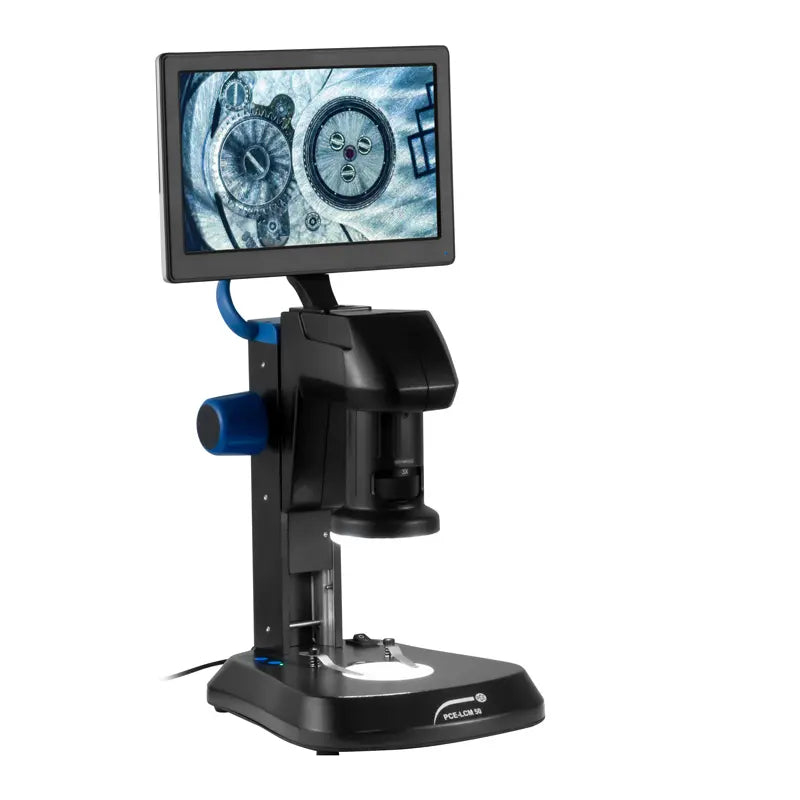

PCE-LCM 50 - HD Inspection Camera with 1-4x Optical Magnification and LED Lighting

PCE-LCM 50 - HD Inspection Camera with 1-4x Optical Magnification and LED Lighting

SKU: SKU: PCE-LCM 50   Download PDF

Select a Variant:
  • PCE-LCM 50 - HD Inspection Camera with 1-4x Optical Magnification and LED Lighting
Qty:
Regular price Now $1,300.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $1,300.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover a versatile inspection camera that allows you to capture both video and photo recordings with ease This device features an intuitive user interface designed for image adjustments, ensuring optimal viewing of small objects With its adjustable optical magnification range of 1 to 4 times, you can effortlessly examine details with precision The camera ensures durability with its protective hood, guarding against dirt while in use.

You can save enlarged images directly onto the included Micro-SD card, making it simple to analyze and share findings with your PC later Offering magnification capabilities between 81 and 324, it’s perfect for scrutinizing even the tiniest subjects The built-in incident light ring equipped with 21 LEDs, along with an additional lighting unit for transmitted-light microscopy, provides exceptional visibility.

With five adjustable brightness levels and the option for manual or automatic settings, you'll achieve optimal lighting conditions for any analysis task.

Features and Benefits:

    •Adjustable digital zoom.

    •Carrying handle for easy transport.

    •User interface can be operated via PC mouse.

    •Contrast disc and transmitted light disc.

    •Adjustable optical magnification.

    •Video and photo shoot.

Specifications:

 Optical zoom 8.1 ... 32.4x
 Optical lens 1 ... 4x
 Barlow 0.3 times
 Digital zoom 1 ... 10x
 Max. object height 4 cm
 Fixed working distance 90.5 mm
 Image sensor 1/3", 3MP
 White balance Automatically or by pressing a button
 Display resolution 1024 x 600 pixels
 Frame rate 30 fps
 Pixel size 2.75 x 2.75 μm
 Interface USB 2.0
 Power supply Primary: 100 ... 240V; Secondary: 12V, 1A
 Illumination reflected light Ring with 21 x 2-mA LEDs, 5 levels adjustable
 Illumination transmitted light 7 x 20-mA LEDs, 5 levels adjustable
 Environmental conditions -5 ... 40°C / 23 ... 104°F, 45 ... 85% rh
 Dimensions 300 x 225 x 270 mm / 11.8 x 8.9 x 10.6 in
