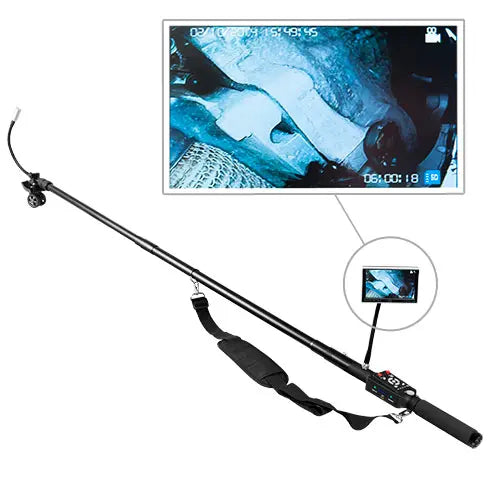

PCE-IVE 320 - 2.3m Industrial Endoscope with LCD Monitor and Camera

PCE-IVE 320 - 2.3m Industrial Endoscope with LCD Monitor and Camera

SKU: SKU: PCE-IVE 320   Download PDF

Select a Variant:
  • PCE-IVE 320 - 2.3m Industrial Endoscope with LCD Monitor and Camera
Qty:
Regular price Now $1,497.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $1,497.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

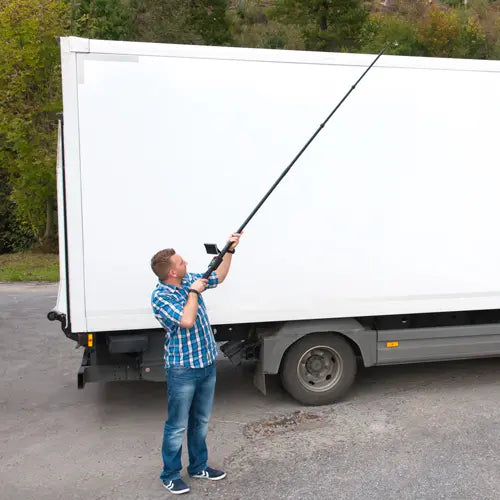

Discover the PCE-IVE 320 Industrial Endoscope, expertly crafted for accessing and inspecting areas that are difficult to reach With a robust telescoping pole that extends up to 23 m (755'), this endoscope is equipped with a 03 megapixel camera featuring a flexible head measuring 23 mm (091") in diameter, a built-in microphone, and 12 adjustable white LEDs to illuminate your inspection site The device comes with a 12.

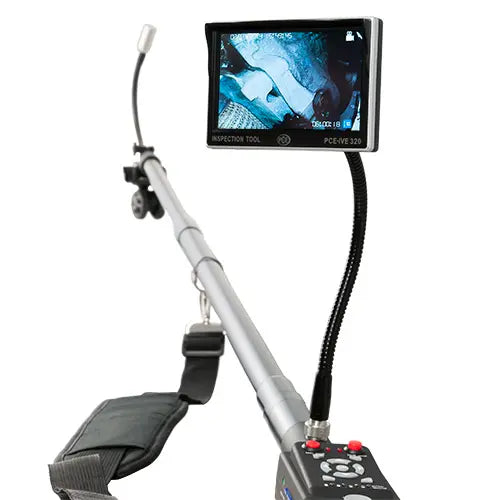

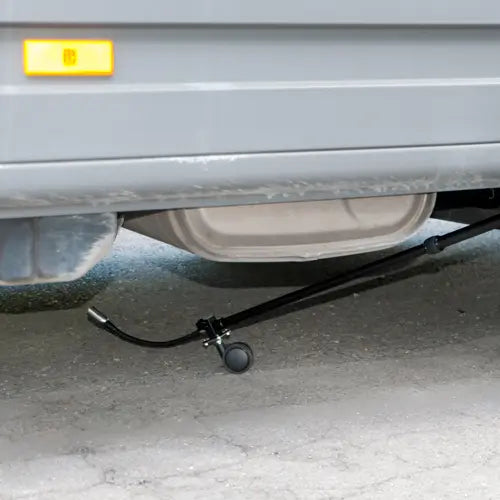

7 cm (5") LCD monitor that delivers real-time viewing at a resolution of 800 x 480 pixels It supports SD memory cards from 2 to 32 GB and includes a convenient card reader This endoscope is ideal for examining the interiors of machines, engines, and various equipment, helping you pinpoint potential damages or hazards The flexible head enables you to capture images from different angles, and the attached wheel makes it suitable for inspecting the underside of vehicles.

Features and Benefits:

    •23 mm (0.91") diameter flexible camera head.

    •LCD monitor with 800 x 480 pixel resolution.

    •12 adjustable brightness LEDs.

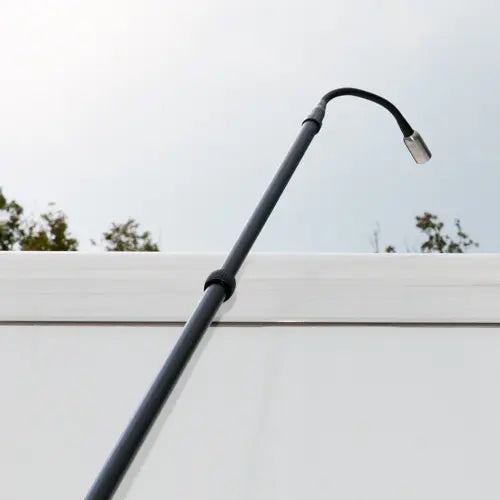

    •Telescopic pole extends up to 2.3 m (7.55').

    •Video recording capability.

    •Supports 2 ... 32 GB SD card memory.

    •Includes microphone for audio recording.

    •Spare battery for all-day operation.

    •Gutter inspections.

    •Chimney inspections.

    •Home inspections.

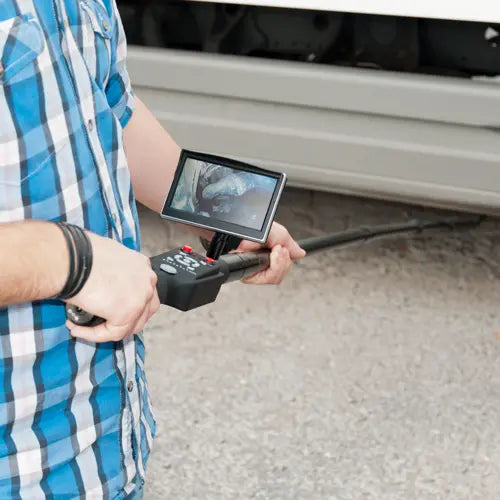

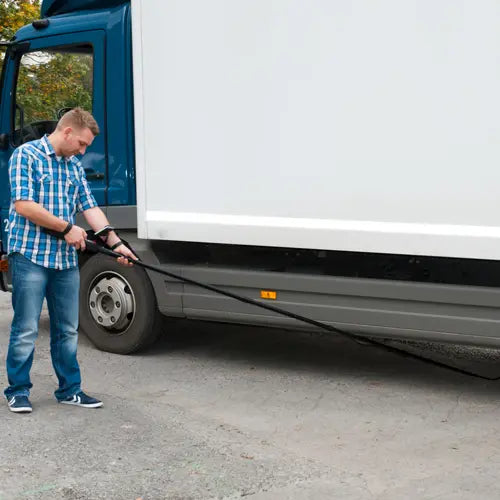

    •Under-vehicle inspections.

    •Tactical use.

Specifications:

 Camera head 1/4 CMOS
 Pixel 0.3 Megapixel
 Lighting 12 x LEDs (white)
 Camera length 320 mm / 12.60"
 Camera diameter 23 mm / 0.91"

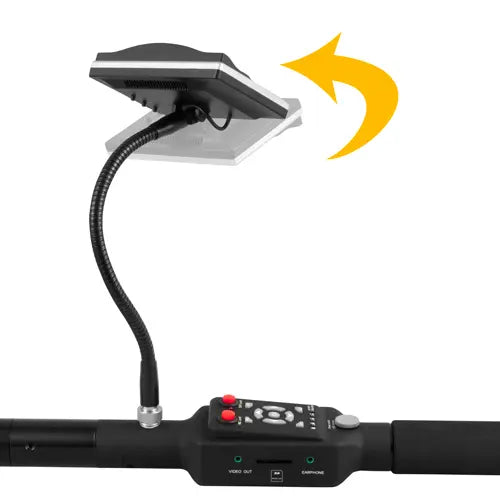

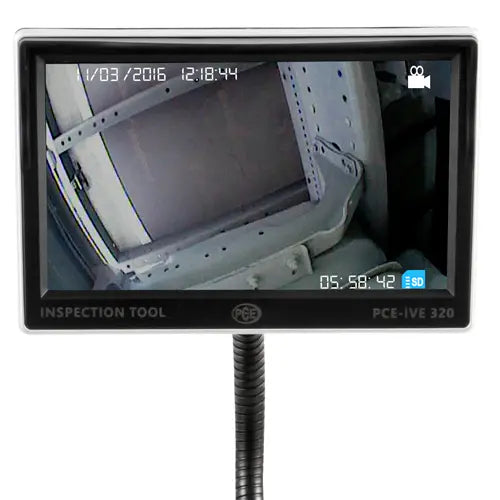

 Monitor LCD 12.7 cm / 5" screen
 Resolution 800 x 480 pixels
 Maximum pole length 2.3 m / 7.55'
 Minimal pole length 0.9 m / 2.96'
 Battery capacity 1500 mAh
 Output voltage 12 V DC, 500 mA
 Battery runtime 5-hour runtime
 Battery charger input voltage 100 ... 240 V AC, 50 / 60 Hz
 Charger output voltage 12 V DC, 500 mA
 Charger charge time 4-hour charge time
 Video output 704 x 576 (PAL)
 Video format MPEG-4
 Recording format ASF
 Weight 1.5 kg / 3.31 lbs
 Overall maximum length 3 m / 9.84'
 Operating conditions -20 ... +50 °C / -4 ... +122 °F
