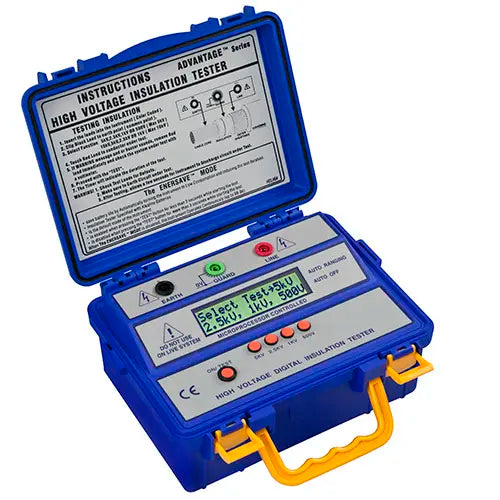

PCE-IT413 - High Voltage Insulation Meter, 5000V, LCD Display

SKU: SKU: PCE-IT413 Download PDF

Select a Variant:

PCE-IT413 - High Voltage Insulation Meter, 5000V, LCD Display

SET THE QTY:

Now $1,102.00 Web pricing policy

~~BEFORE $0.00~~ Now $1,102.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PCE-IT413 Insulation Meter, expertly engineered for high voltage measurements reaching up to 5,000V This precision tool boasts a 6-digit LCD display for highly accurate resistance readings, making it an essential companion for technical professionals Designed to perform under challenging conditions, this meter incorporates built-in protection to mitigate errors from current loss Equipped with a microprocessor, it also features both optical and visual alerts for enhanced usability.

Factory calibrated to ensure utmost accuracy, this device complies with IEC and VDE safety standards, guaranteeing its reliability for professional applications.

Features and Benefits:

•6 digit LCD display.

•Measurements according to VDE 0413 part 1.

•Test tension up to 5,000V.

•3 year warranty.

•Safety standards: IEC-1010-1; CAT III, IEC-1010-1, EN 61010-1.

•Very good price/quality relationship.

Specifications:

Model	PCE-IT413
DC test tension	500 / 1,000 / 2,500 / 5,000V
Range of measurement	30 GΩ / 500V, 60 GΩ / 1,000V, 150 GΩ / 2,500V, 300 GΩ / 5,000V
Accuracy	± 3%
Potential output	Maximum of 1 watt
Insulation resistance between electrical conduction and the enclosure	2000 MΩ / 2000V
Static tension between enclosure and circuit	700V AC for a maximum of 1 minute
AC warning circuit	For tension > 450V AC
Power	8 batteries (1.5V)
Dimensions	250 x 110 x 190 mm / 9.8 x 4.3 x 7.5 in
