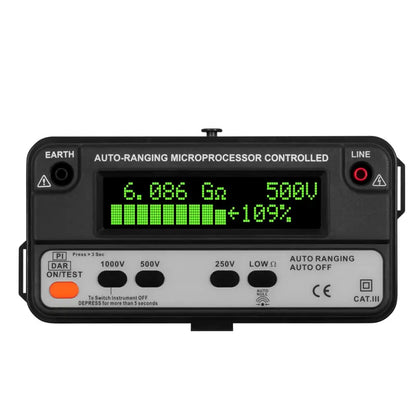

PCE-IT 120 - Compact Insulation Tester Up to 8 GΩ, OLED Display

Description:

Ensure precise insulation testing with the PCE-IT 120 insulation tester, designed to measure insulation resistance up to 8 GΩ This compact device operates with auxiliary voltages of 250V, 500V, and 1000V It also effectively evaluates DC and AC voltage levels, reaching up to 950V DC and 700V AC, alongside resistance measurements up to 2 kΩ Equipped with a built-in continuity tester that provides audible feedback, it allows for easy assessments.

Users can monitor the polarization index and dielectric ratio, with all results displayed on a clear OLED screen The PCE-IT 120 meets essential standards, including DIN 57 411 part 1 and VDE 0411 part 1, and comes factory-calibrated, with an ISO calibration certificate available upon request.

Features and Benefits:

•OLED display.

•Automatic polarity display.

•Automatic range selection.

•Automatic zeroing.

•Discharge beeper for insulation measurements.

•Overload protection during continuity test.

•Safety function which holds voltage for only 10 seconds.

•Hold function.

•PI and DAR test.

Specifications:
