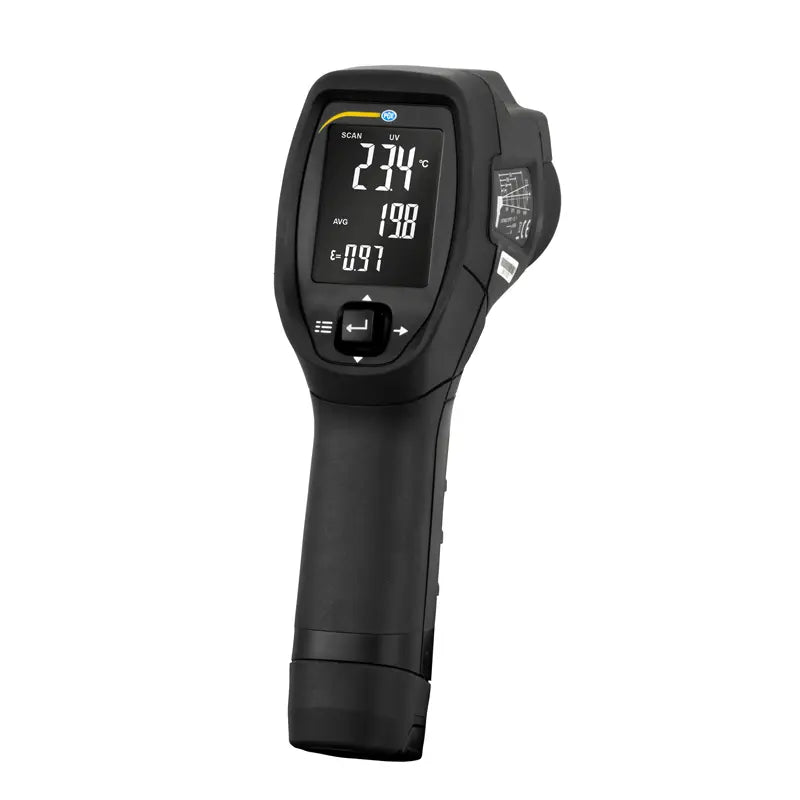

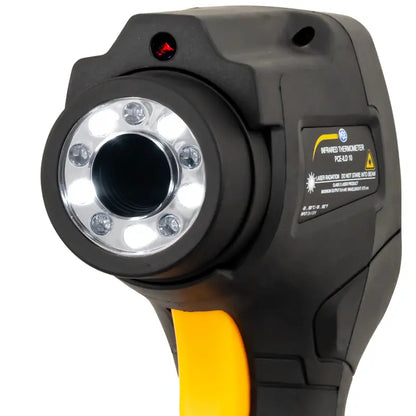

PCE-ILD 10 - Infrared Pyrometer for -50 to 500 °C with Laser Spot

SKU: SKU: PCE-ILD 10 Download PDF

Select a Variant:

PCE-ILD 10 - Infrared Pyrometer for -50 to 500 °C with Laser Spot

SET THE QTY:

Now $179.00 Web pricing policy

~~BEFORE $0.00~~ Now $179.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PCE-ILD 10 Pyrometer, a highly adaptable infrared thermometer with an impressive measurement capability ranging from -50 to 500 °C (-58 to 932 °F) This device features an adjustable alarm limit, making it ideal for diverse applications The pyrometer has a measuring spot ratio of 12:1 and operates at a speed of 2 Hz, ensuring quick and accurate readings For precise targeting, it comes equipped with a multi-point laser, while the five LED contrast ring provides clear visual feedback during temperature assessments.

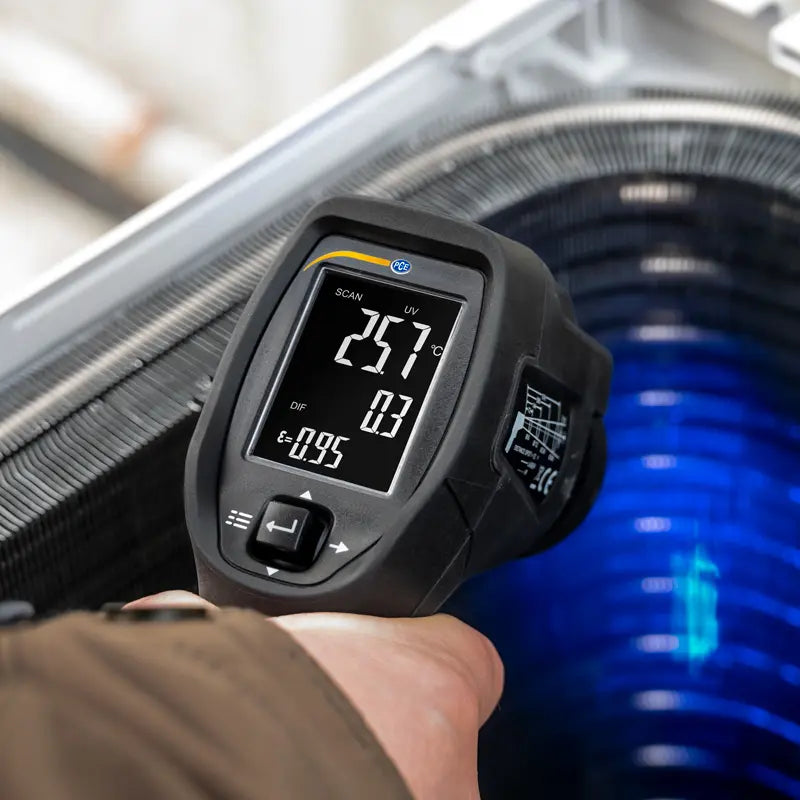

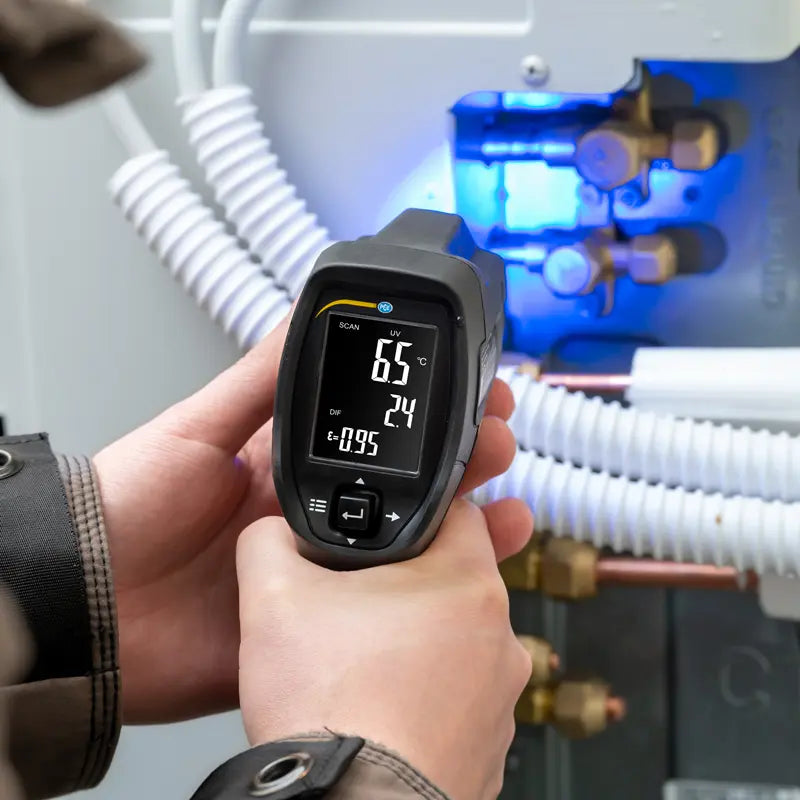

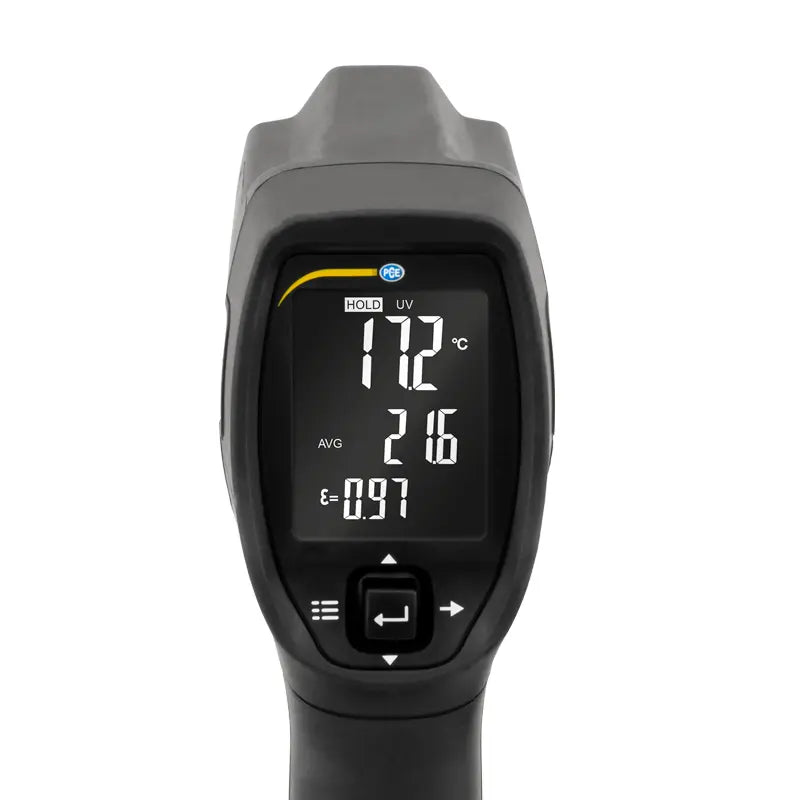

This robust unit can display various readings, including maximum, minimum, average, and differential values Additionally, an optional ISO calibration certificate is available, enhancing the accuracy of measurements for professional use.

Features and Benefits:

•Measuring range from -50 ... 500 °C / -58 … 932 °F.

•Fast measuring rate of 2 Hz.

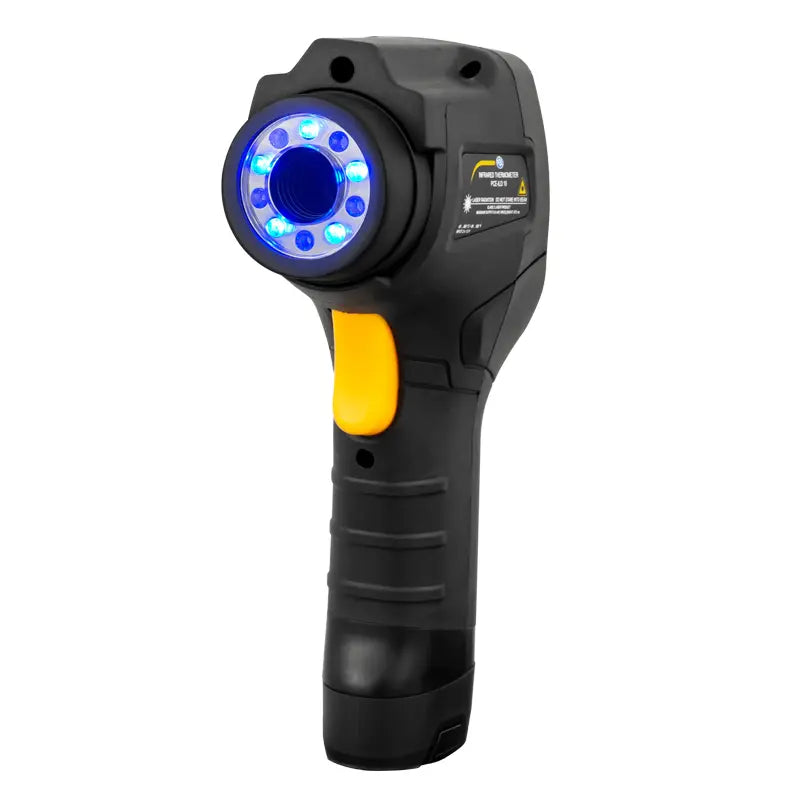

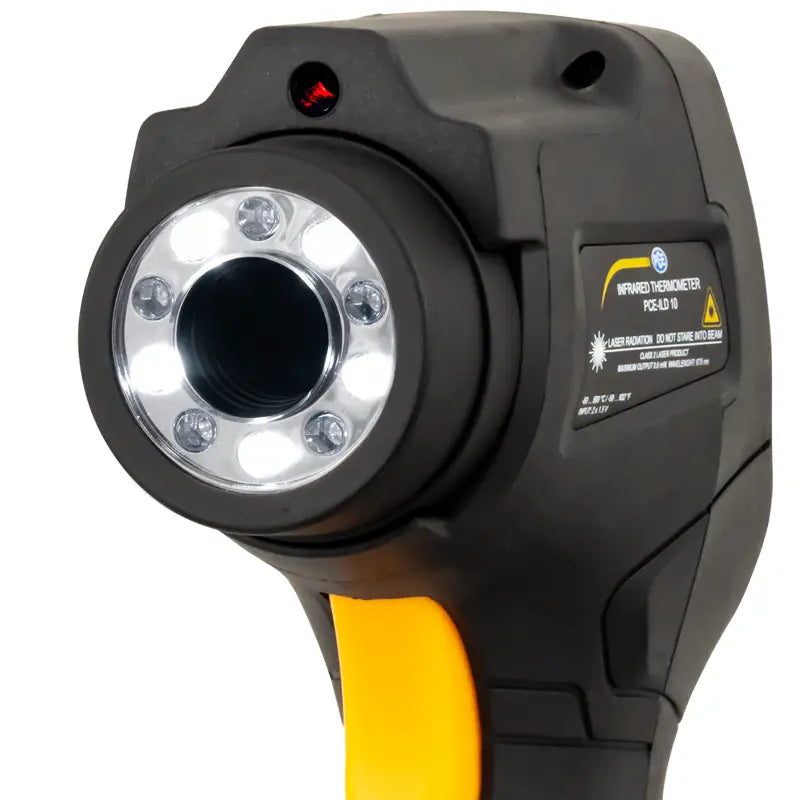

•Two LED rings for illumination: one white and one blue.

•Adjustable emission value ranging from 0.10 ... 1.00.

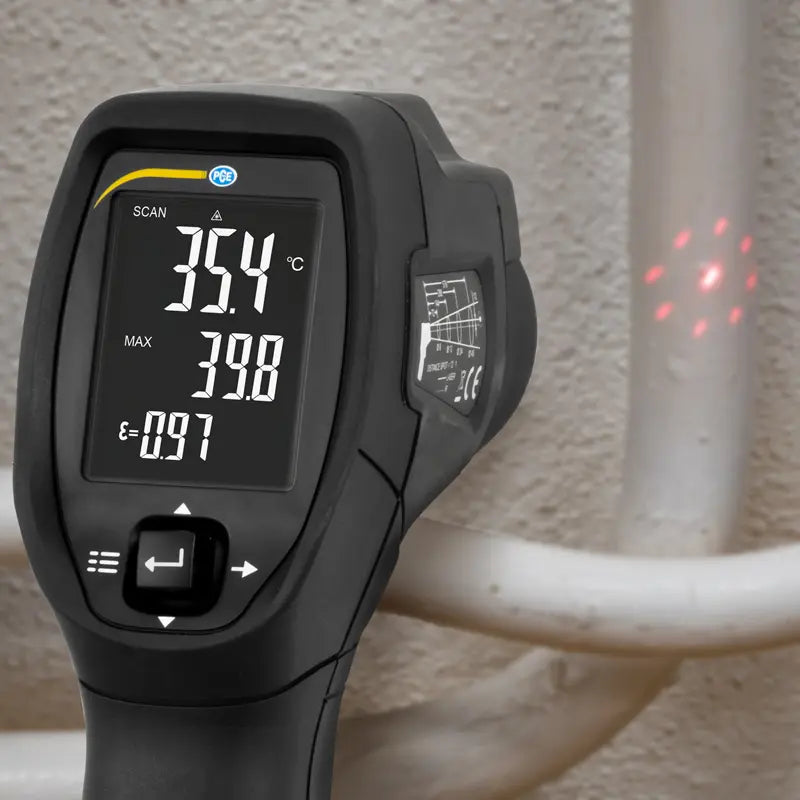

•Multi-point laser for precise measurement spot alignment.

•User-defined alarm limits with acoustic and visual alerts.

•Optional ISO calibration certificate.

Specifications:

Measuring range	-50 … 500 °C / -58 … 932 °F
Resolution	0.1 °C / 0.1 °F
Accuracy	±3 °C / ±5.4 °F at -50 … 20 °C / -58 … 68 °F; ±2 % or ±2°C / ±3.6 °F at 20 … 500 °C / 68 … 932 °F
Repeatability	±1 °C / 1.8 °F
Spot ratio	12:1
Emission rate	0.10 … 1.00
Measuring rate	2 Hz
Spectral range	8 … 14 µm
Measuring range exceeded	Display „ - - - -“
Laser output power	<1 mW
Wavelength	630 … 670 nm
Laser class	2
Light ring	5 x white LED, 5 x blue LED
Power supply	2 x 1.5 V AA batteries
Operating conditions	0 … 50 °C / 32 … 122 °F, 10 … 90 % RH, non-condensing
Storage conditions	-10 … 60 °C / 14 … 140 °F, 10 … 90 % RH, non-condensing
Dimensions	180 x 100 x 55 mm / 7.0 x 3.9 x 2.1"
