Description:

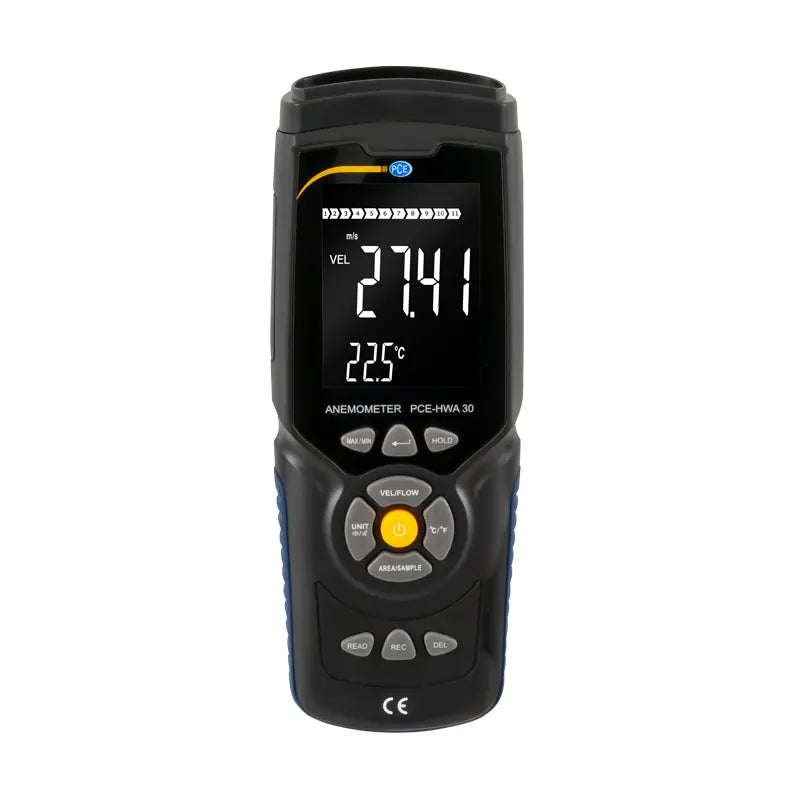

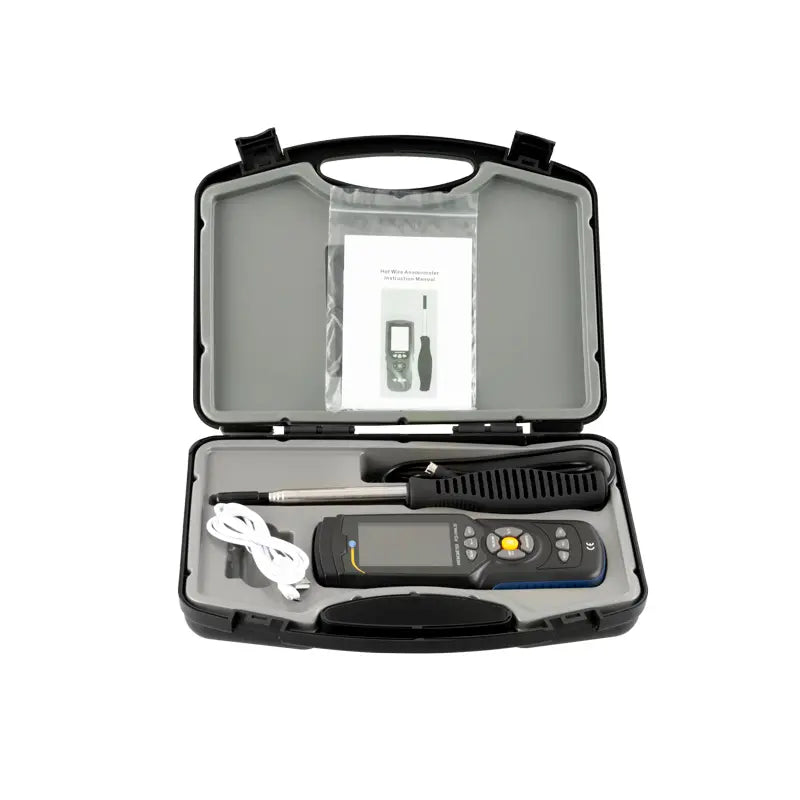

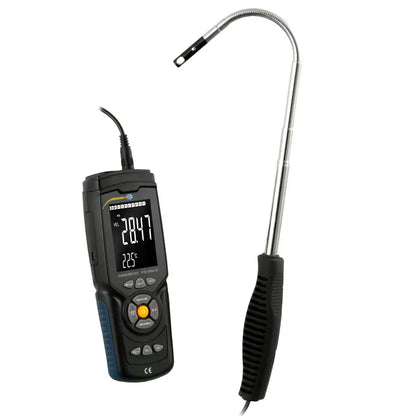

Introducing the PCE-HWA 30 thermometer, a sophisticated instrument equipped with a data logger, expertly crafted for assessing flow velocity using the hot wire method This versatile device offers a measuring range from 03 to 300 m/s and operates on battery power for added portability Included with the thermometer is a practical transport case, and it can be conveniently recharged through a 5 V DC micro-USB interface.

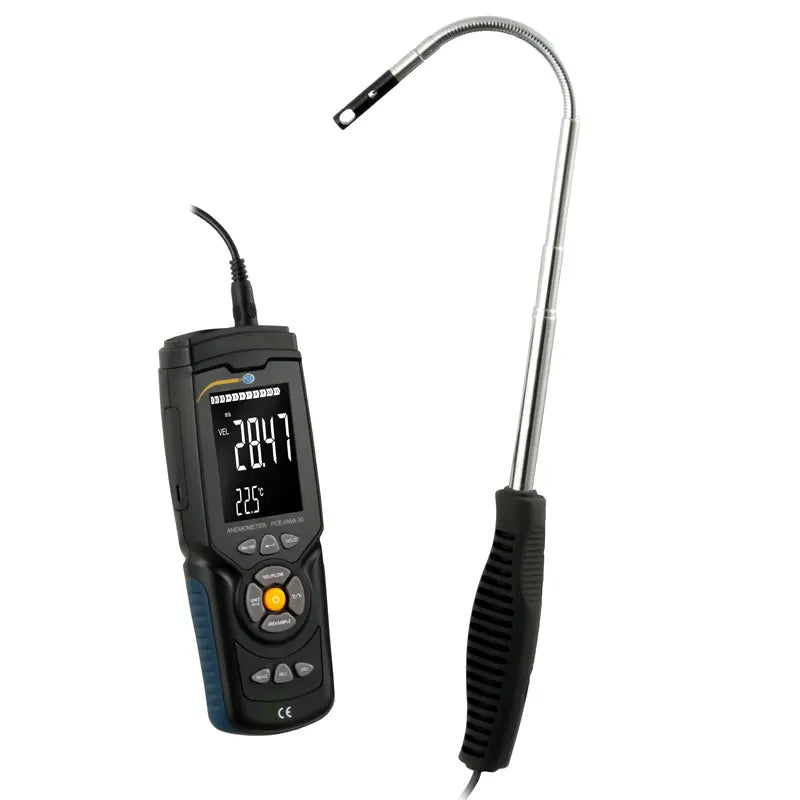

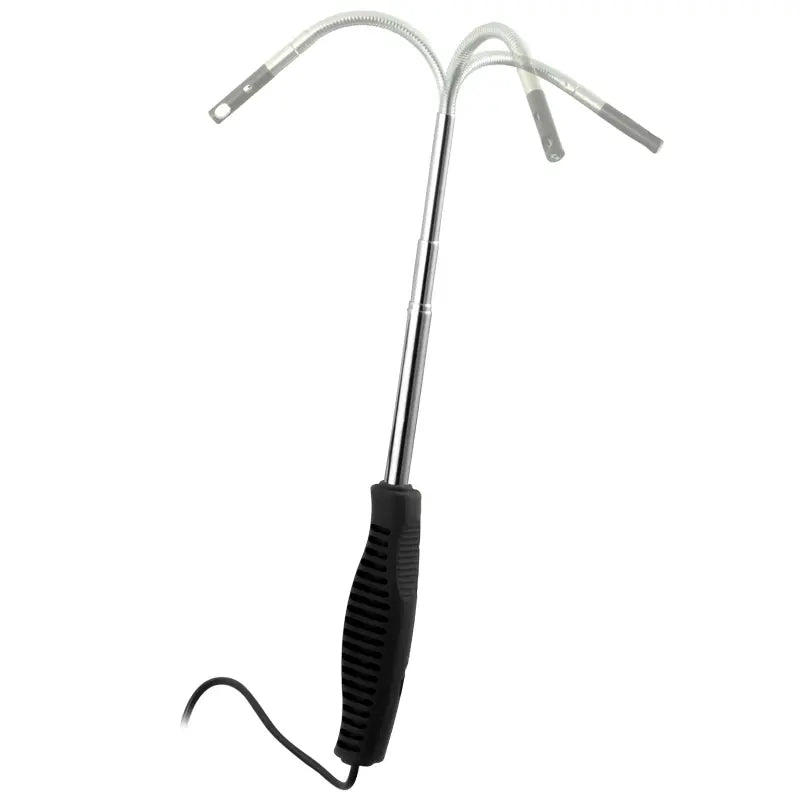

For enhanced usability, the thermometer features an adjustable telescopic arm that extends between 270 to 990 mm, providing optimal positioning flexibility thanks to its swiveling head In addition to measuring flow velocity, this device also tracks volume flow and ambient temperature, displaying the Beaufort scale alongside the captured readings With the capability to store up to 960 data points, you can easily access readings directly on the thermometer or transfer them to a PC for further analysis using compatible software.
With its compact design and intuitive functionality, the PCE-HWA 30 is the perfect choice for any application requiring precise wind speed measurements.
Features and Benefits:
•Hot wire anemometer with data storage.
•Software available for reading out measured values.

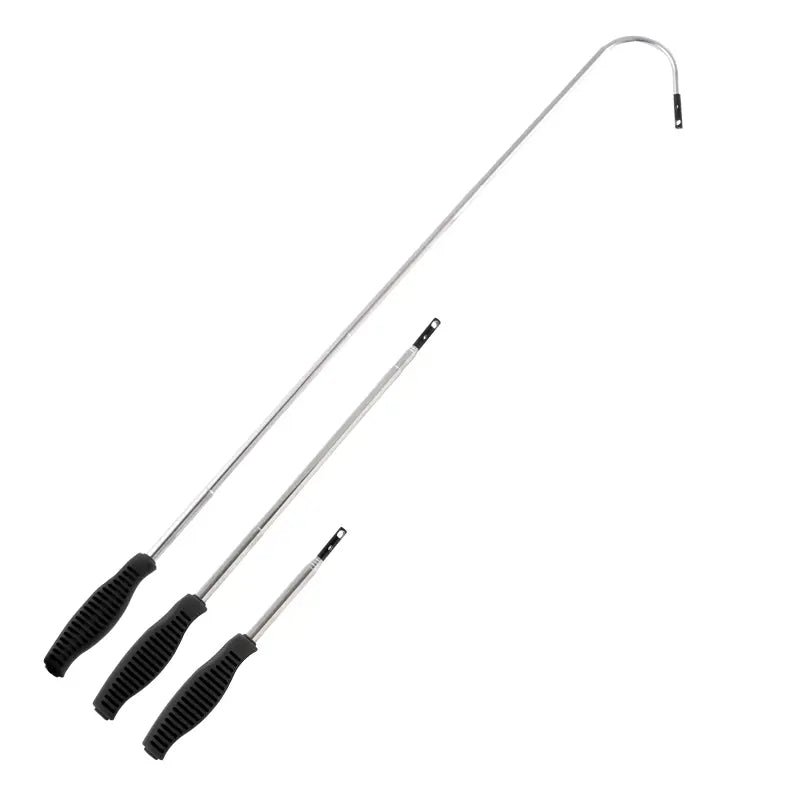

•Swiveling telescopic arm extends from 270 to 990 mm.
•Wide measuring range from 0.3 to 30.0 m/s.
•Data memory capable of storing up to 960 measured values.
•Integrated Beaufort scale for wind strength indication.
Specifications:
| Measuring range (Wind speed m/s) | 0.3 ... 30.0 m/s |
| Resolution (Wind speed m/s) | 0.01 m/s |
| Accuracy (Wind speed m/s) | ±3 % ±0.1 m/s of measured value |
| Measuring range (Wind speed ft/min) | 60 ... 5904 ft/min |
| Resolution (Wind speed ft/min) | 0.01, 0.1, 1 ft/min |
| Accuracy (Wind speed ft/min) | ±3 % ±20 ft/min of measured value |
| Measuring range (Wind speed knots) | 0.6 ... 58.3 knots |
| Resolution (Wind speed knots) | 0.01 knots |
| Accuracy (Wind speed knots) | ±3 % ±0.2 knots of measured value |
| Measuring range (Wind speed km/h) | 1.0 ... 108.0 km/h |
| Resolution (Wind speed km/h) | 0.01 km/h |
| Accuracy (Wind speed km/h) | ±3 % ±0.4 km/h of measured value |
| Measuring range (Wind speed mph) | 0.7 ... 67 mph |
| Resolution (Wind speed mph) | 0.01 mph |
| Accuracy (Wind speed mph) | ±3 % ±0.2 mph of measured value |
| Measuring range (Volume flow CMM) | 0 ... 999900 m³/min |
| Resolution (Volume flow CMM) | 0.001 ... 100 m³/min |
| Adjustable area (Volume flow CMM) | 0.001 ... 999 m² |
| Measuring range (Volume flow CFM) | 0 ... 999900 ft³/min |
| Resolution (Volume flow CFM) | 0.001 ... 100 m³/min |
| Adjustable area (Volume flow CFM) | 0.001 ... 999 m³ |
| Measuring range (Temperature °C) | 0 ... 45 °C |
| Resolution (Temperature °C) | 0.1 °C |
| Accuracy (Temperature °C) | ±1.0 °C |
| Measuring range (Temperature °F) | 32 ... 113 °F |
| Resolution (Temperature °F) | 0.18 °F |
| Accuracy (Temperature °F) | ±1.8 °F |
| Probe length | 270 … 990 mm / 10.63 … 38.98" |

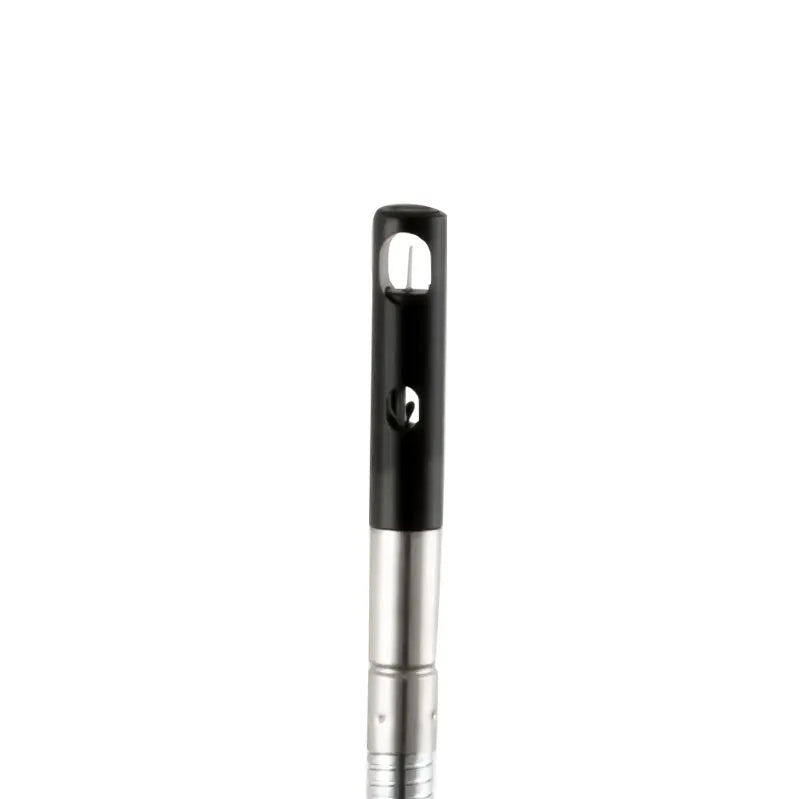

| Probe diameter | Ø0.8 ... 1.2 mm / 0.031 x 0.047" |

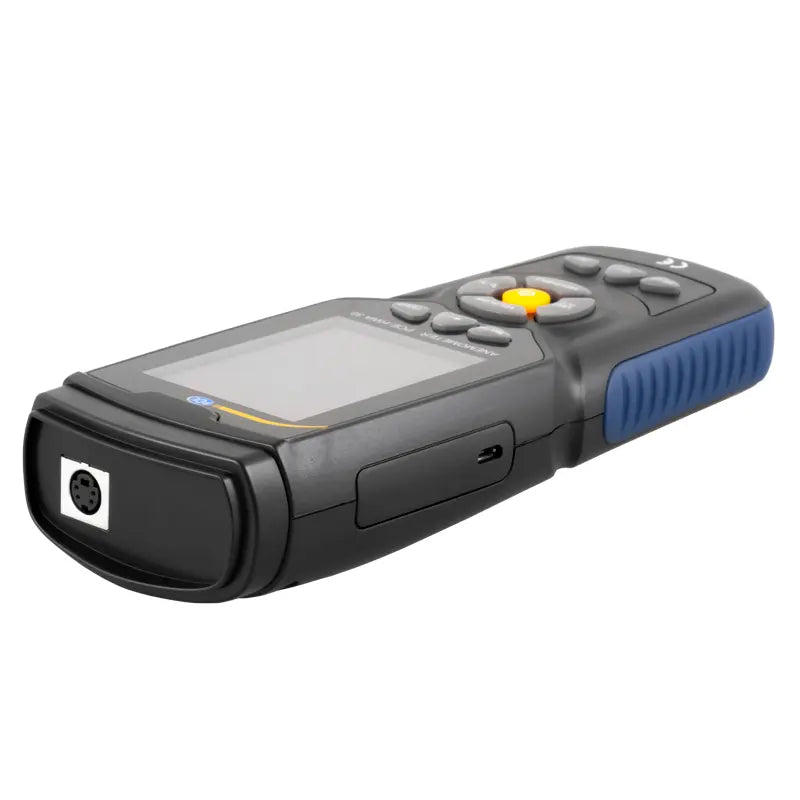

| Interface | Micro USB |
| Data memory | 960 measured values |
| Power supply | 3.7 V, 1000 mAh battery and 5 V DC, 1 A Micro USB interface |
| Power consumption | 15 ... 35 mA without background lighting; 70 ... 100 mA with background lighting |
| Battery discharged display | <3.4 V |
| Operating conditions | 0 ... 50 °C / 32 ... 122 °F, 40 ... 80 % RH, non-condensing |
| Storage conditions | -20 ... 60 °C / -4 ... 140 °F, < 80 % RH, non-condensing |
| Dimensions | 70 x 194 x 35 mm / 2.7 x 7.6 x 1.3" |
