Description:

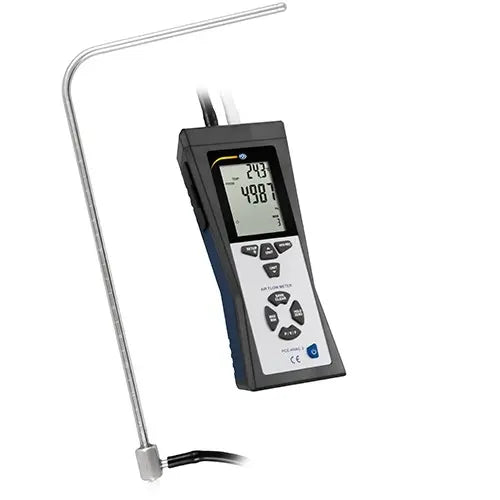

Introducing the PCE-HVAC 2 Multifunction Air Flow Meter, a versatile tool equipped with a pitot tube for precise measurements Capable of gauging air velocities up to 80 m/s (17866 mph), this instrument offers features such as zero, minimum, maximum, average, record, and hold functions It can store up to 99 measurement values for each parameter, making it an invaluable asset for monitoring air speed, air pressure, airflow, differential pressure, and ambient temperature.

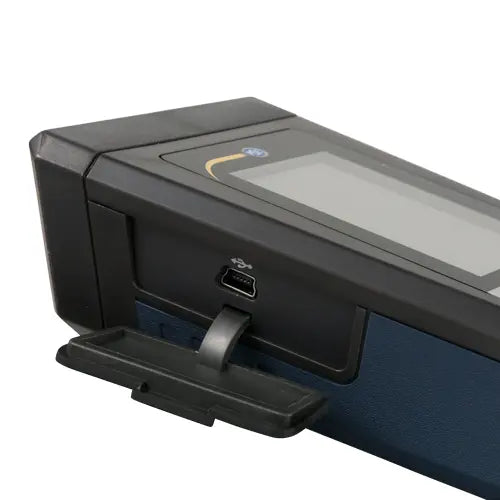

Designed for portability, the air flow meter's pitot tube enables measurement access in confined spaces and small pipe systems You can conveniently retrieve stored measurement data directly from the device or transfer it to a computer via the user-friendly USB interface Real-time measurements are also possible once connected to a computer, displaying values on the screen with compatible software

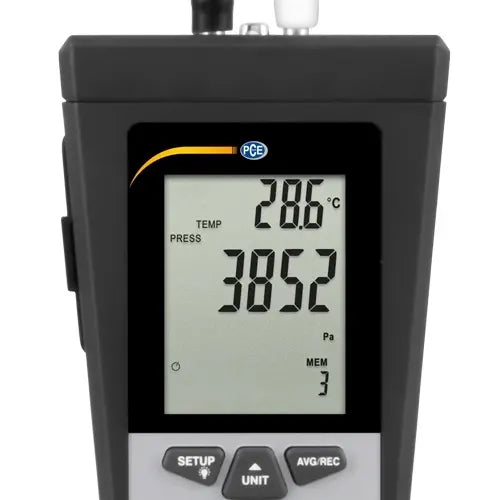

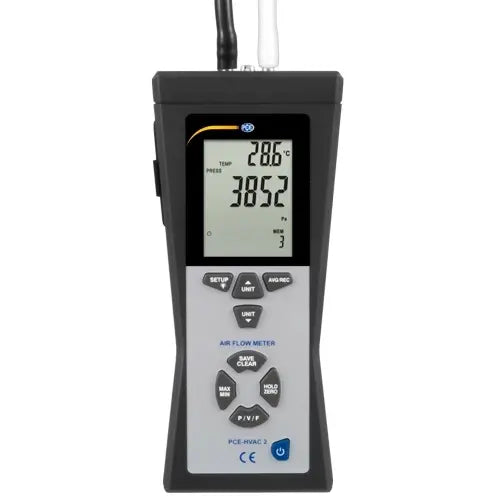

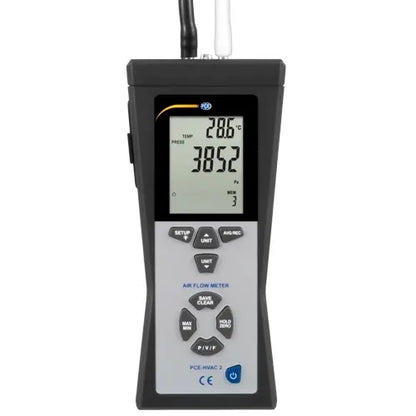

The ergonomic design ensures comfortable handling, while the backlit display provides visibility in low-light situations.

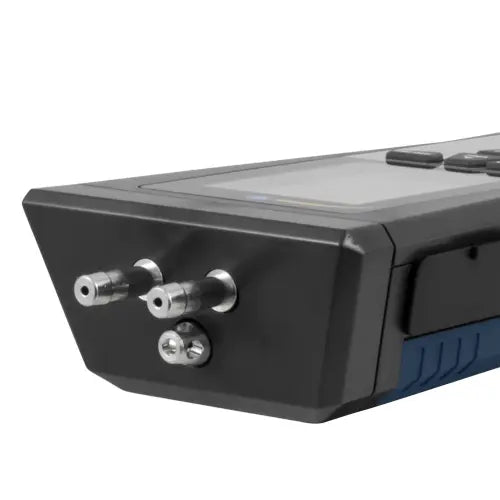

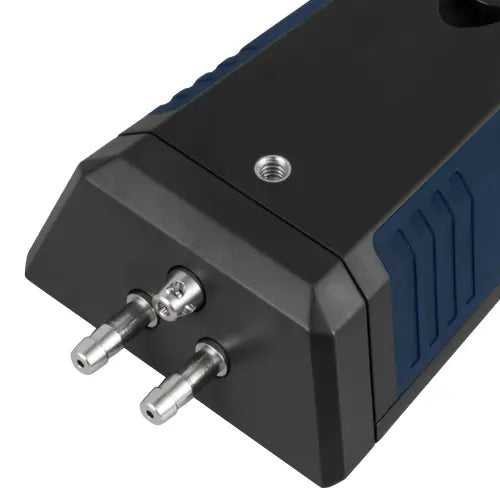

Additionally, the PCE-HVAC 2 features a tripod mount on its base, allowing for stable positioning With hoses conveniently inserted at the top, connecting the pitot tube is quick and easy.
Features and Benefits:
•Measures air velocity, air pressure, and airflow.
•Displays ambient temperature.
•Zero adjustment function.
•MIN, MAX, AVR, REC and HOLD functions.
•Backlit LCD display.
•Dual display on the LCD.
•Suitable for high flow rates.
•Internal memory for 99 measurement values per parameter.
•USB cable included.
•Downloadable PC-compatible software for real-time measurement.
•Includes pitot tube measurement.
•Differential pressure and standard measurement capabilities.
•Two connecting hoses (each 85 cm / 33.46 in).
•Adjustable measuring units.

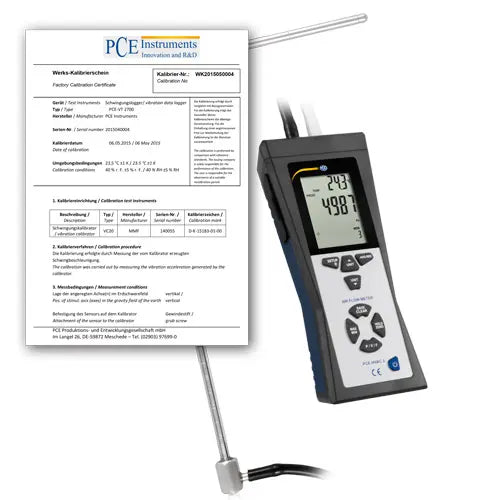

•ISO calibration certificate included.
Specifications:
| Air pressure Accuracy | ± 0.3% of reading at 25°C / 77°F |
| Repeatability | ± 0.2% (± 0.5% of reading) |
| Linearity / hysteresis | ± 0.29% of reading |
| Pressure range | 5000 Pa |
| Maximum pressure | 10 psi |
| Response time | Typically 0.5 seconds |
| Measuring range (Air pressure) | 0.7252 psi, 50.00 mbar, 20.07 inH2O, 509.8 mmH2O, 5000 Pa |
| Resolution (Air pressure) | 0.0001 psi, 0.01 mbar, 0.01 inH2O, 0.1 mmH2O, 1 Pa |
| Selectable units | Mbar, psi, inH2O, mmH2O, or Pa |
| Measuring range (Air speed) | 1 ... 80 m/s, 200 ... 15733 ft/min, 3.6 ... 288 km/h, 2.24 ... 178.66 MPH, 2 ... 154.6 knots |
| Resolution (Air speed) | 0.01 m/s, 1 ft/min, 0.1 km/h, 0.01 MPH, 0.1 knots |
| Accuracy (Air speed) | At m/s: ± 2.5% of measured value |
| Flow rate Measuring range | 0 ... 99999 m³/min, 0 ... 99999 ft³/min |
| Flow rate Resolution | 0.001 ... 100 m³/min, 0.0001 ... 100 ft³/min |
| Temperature Measuring range | 0 ... 50°C / 32 ... 122°F |
| Temperature Resolution | 0.1°C / 0.18°F |
| Temperature Accuracy | ± 1°C / ± 1.8°F |

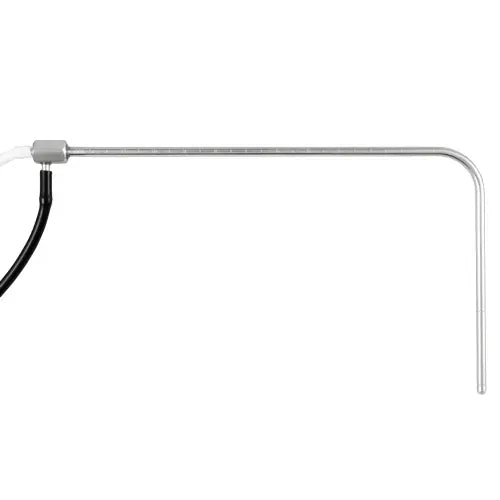

| Diameter of pitot tube | 8 mm / 0.3 in |
| Length of measuring hoses | Each 85 cm / 33.46 in |
| Total length of the tube | 335 mm / 13.18 in |
| Low battery indicator | Yes |
| Power supply | 9V block battery |
| Operating conditions | 0 ... 50°C / 32 ... 122°F / <90% RH non-condensing |
| Storage conditions | -10 ... 60°C / 14 ... 140°F / <90% RH non-condensing |
| Internal memory | 99 measured values per parameter |
| Interface | USB |
| Display | LCD |
| Housing material | ABS plastic |
| Dimensions | Device: 206 x 95 x 45 mm / 8.11 x 3.7 x 1.7 in, Pitot tube: 335 mm / 13.18 in - Ø 8 mm / 0.31 in |
