PCE-HT 225E - Digital Concrete Test Hammer with Memory & USB Port

PCE-HT 225E - Digital Concrete Test Hammer with Memory & USB Port

SKU: SKU: PCE-HT 225E Download PDF

Variant:
  • PCE-HT 225E - Digital Concrete Test Hammer with Memory & USB Port
Regular price Now $2,639.00
Regular price BEFORE   $0.00 Sale price Now $2,639.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

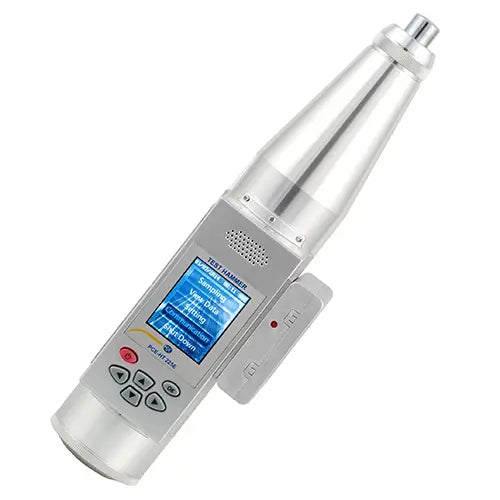

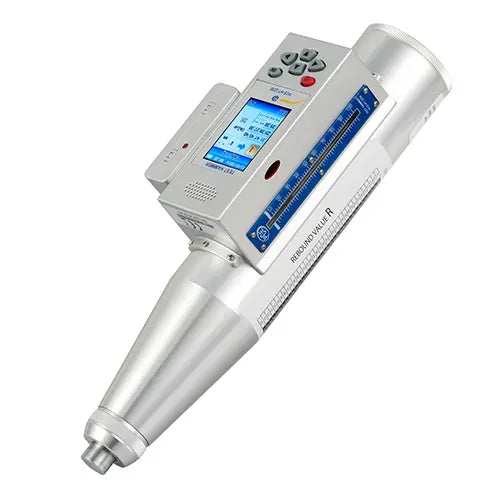

Experience precision with the PCE-HT 225E Durometer, a sophisticated concrete test hammer, also referred to as a Swiss hammer or concrete rebound hammer This innovative tool allows for non-destructive assessment of surface hardness and compressive strength across concrete, rock, and various building materials Equipped with a direct digital display, voice functionality, and the capability to store up to 200 measurement values in its internal memory, this device simplifies your testing process.

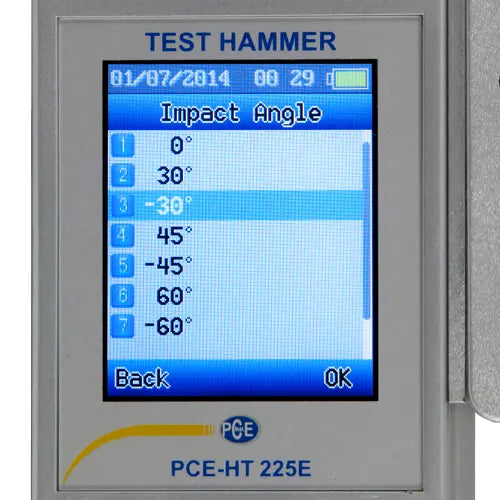

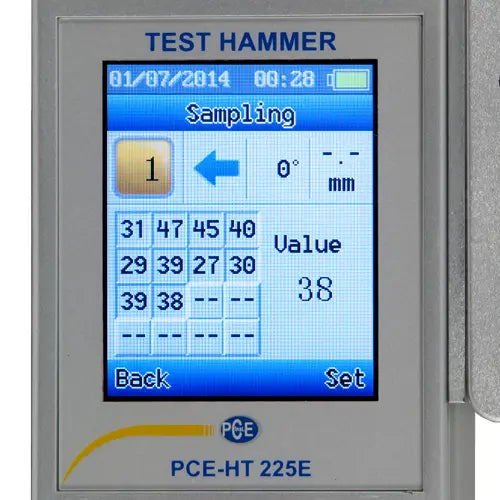

The clear LCD screen presents results in an easily readable format, while the integrated USB port facilitates effortless data transfer to computers or printers Complete with software to aid in data analysis, this durometer is an invaluable asset for construction professionals seeking accurate and efficient measurement solutions.

Features and Benefits:

    •Non-destructive.

    •Manufacturer calibrated.

    •Direct digital display.

    •Voice functionality.

    •USB port data interface.

    •Memory for up to 200 values.

    •Includes software for data processing.

    •Adjustable backlight brightness.

    •Energy-saving automatic power off.

    •Pump marking and measuring curve settings.

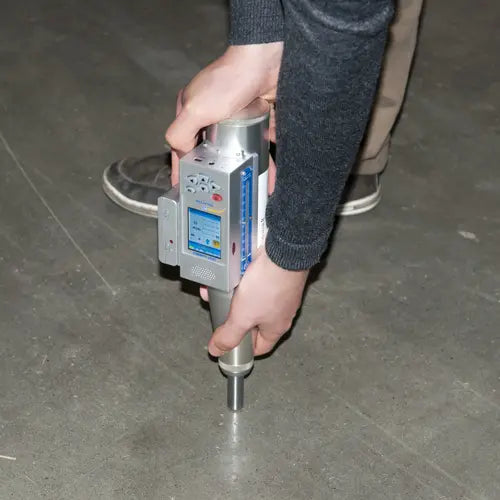

    •Used for non-destructive measurements in concrete, rock, and building materials.

Specifications:

 Test range 10 ... 60 MPa or 100 ... 600 kg/cm² / 1450.38 ... 8702.26 psi
 Impact energy 2.207 J or N-m / 1.6278 ft-lb
 Impact stroke 75 ± 0.3 mm / 2.95 ± 0.012 in
 Spring rigidity 785 J or N-m / 578.99 ft-lb
 Average rebound value (for calibration) 80 ± 2
 Radius of spherical tip 25 ± 1 mm / 0.99 ± 0.04 in
 Adhesion of the measurement tip 0.65 ... 0.15 N
 Data interface USB 2.0 port
 Data storage or memory capacity Up to 200 measurement values
 Display LCD, 176 x 220 mm / 6.9 x 8.7 in
 Power supply 4 x AAA alkaline batteries
 Dimensions Approx. 54 x 280 mm / 2.13 x 11.02 in
