PCE-HT-225A Concrete Rebound Hammer for Non-Destructive Hardness Testing

PCE-HT-225A Concrete Rebound Hammer for Non-Destructive Hardness Testing

SKU: SKU: PCE-HT-225A   Download PDF

Select a Variant:
  • PCE-HT-225A Concrete Rebound Hammer for Non-Destructive Hardness Testing
Qty:
Regular price Now $495.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $495.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

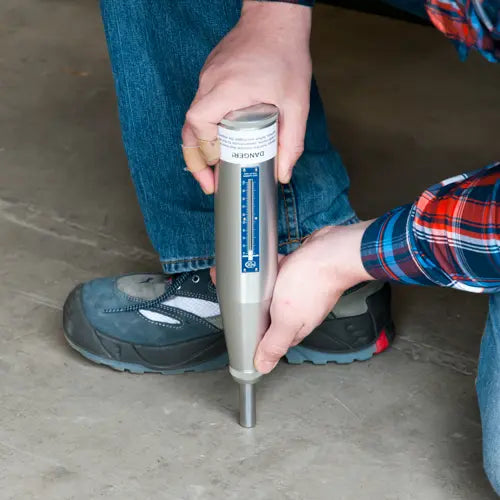

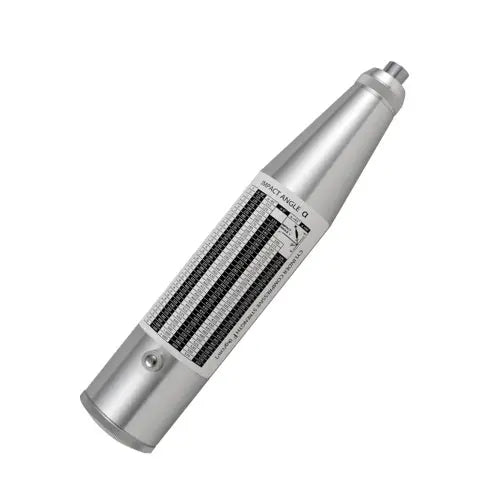

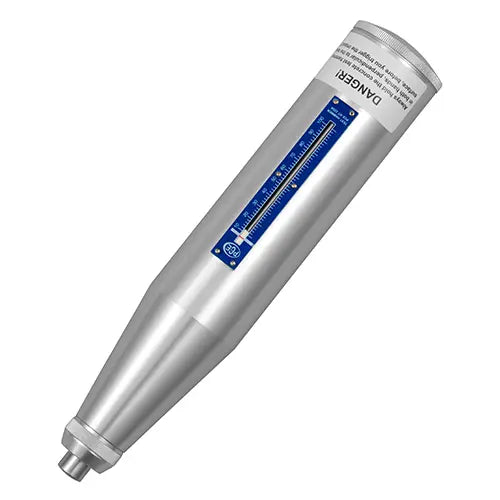

Introducing the PCE-HT-225A, an advanced concrete test hammer, commonly referred to as a rebound hammer or Swiss hammer This reliable tool is designed for non-destructive assessments of surface hardness and compressive strength in various materials, such as concrete, rock, and building products Engineered for efficiency, this manual rebound hammer features manufacturer-calibrated accuracy, making it an economical choice for professionals in construction and engineering.

Compressive strength is a key indicator of concrete quality, influencing its structural performance and longevity With the PCE-HT-225A, you can swiftly and precision gauge concrete strength, ensuring your projects meet the required standards effortlessly.

Features and Benefits:

    •Employs mechanical rebound test method - no digital components.

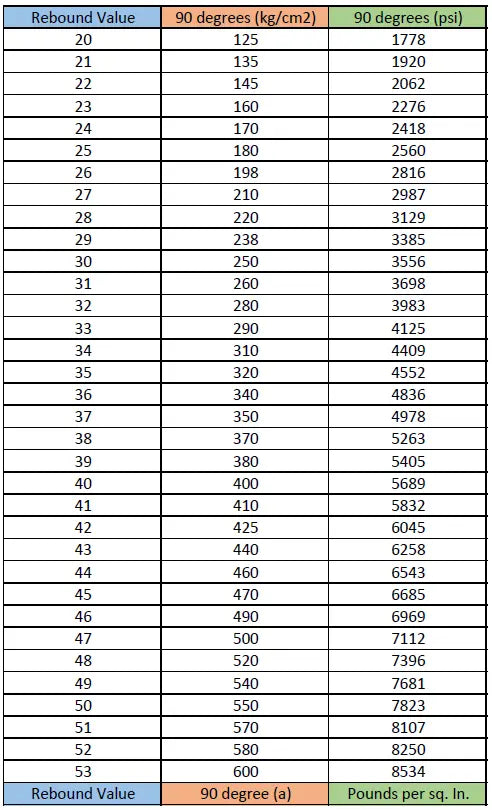

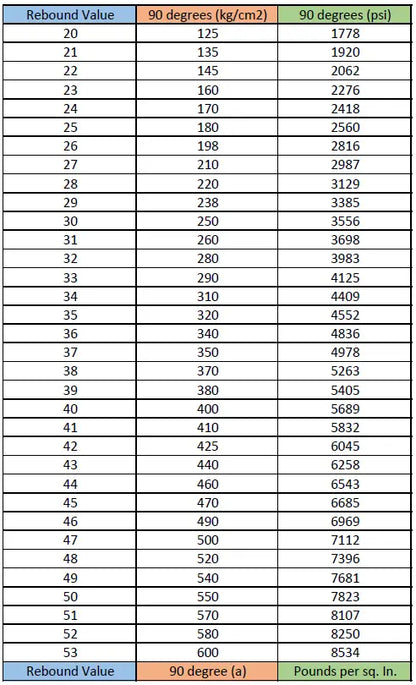

    •Kg/cm², psi, and MPa conversion tables on back of instrument and in user manual.

    •Manufacturer calibrated - ISO calibration certificate available as an option.

    •Ideal for use in construction, structural engineering and material strength testing.

    •Includes two-year warranty against manufacturer defects.

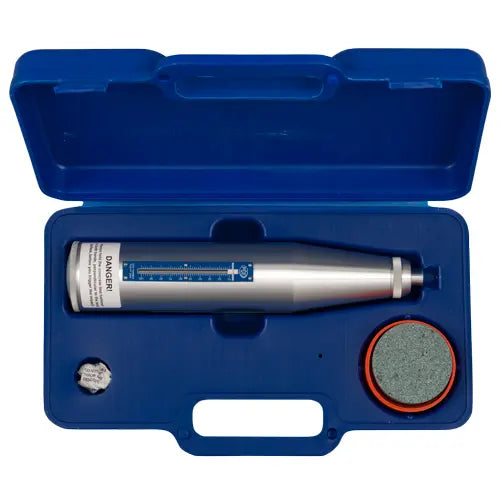

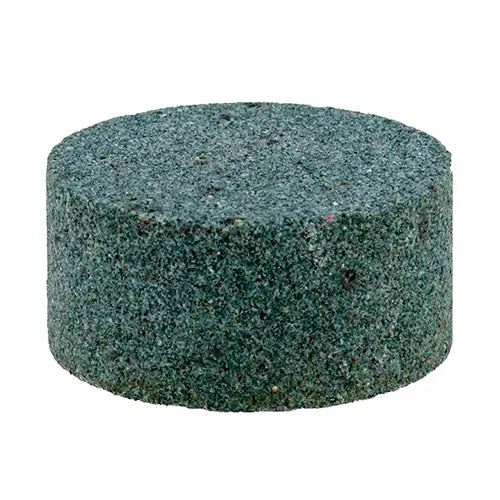

    •Optional test anvil to verify accuracy listed under accessories.

    •Use in construction, structural engineering and material strength testing.

Specifications:

 Test range 10 ... 60 MPa or 100 ... 600 kg/cm² or 1450 ... 8702 psi
 Impact energy 2.207 J or N-m / 1.6278 ft-lb
 Impact stroke 75 ± 0.3 mm / 2.95 ± 0.012 in
 Spring rigidity 785 J or N-m / 578.99 ft-lb
 Average rebound value (for calibration) 80 ± 2
 Radius of spherical tip 25 ± 1 mm / 0.99 ± 0.04 in
 Adhesion of the measurement tip 0.65 ... 0.15 N
 Rebound value range 0 to 100 (without dimensions)

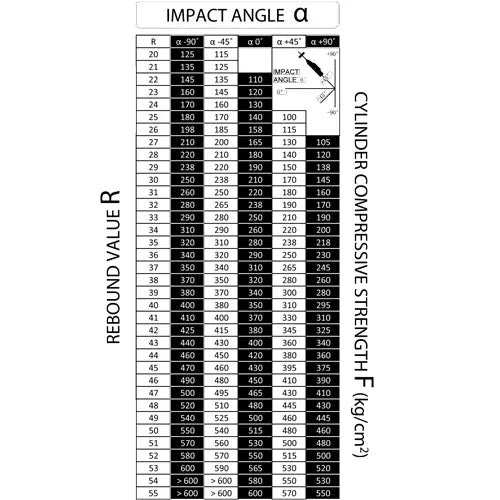

 Conversion tables On back of instrument and in user manual; to convert rebound values indicated to kg/cm² and MPa (with introduction of impact angle)
 Dimensions Approx. 66 x 280 mm / 2.6 x 11.02 in
