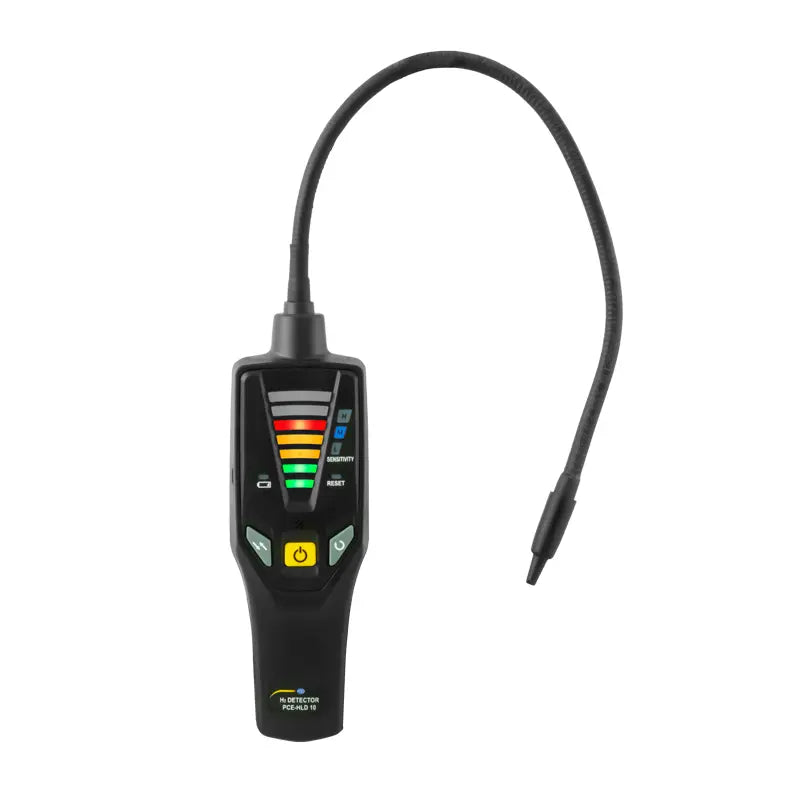

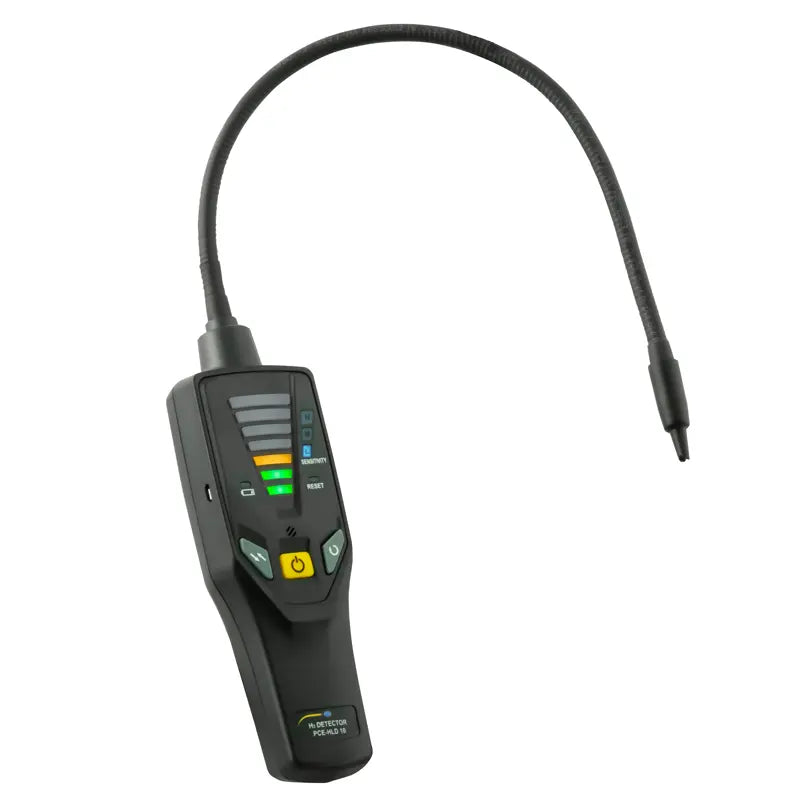

PCE-HLD 10 - 40cm Leak Detector with Adjustable Sensitivity and Alarm

PCE-HLD 10 - 40cm Leak Detector with Adjustable Sensitivity and Alarm

SKU: SKU: PCE-HLD 10   Download PDF

Select a Variant:
  • PCE-HLD 10 - 40cm Leak Detector with Adjustable Sensitivity and Alarm
Qty:
Regular price Now $420.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $420.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the Environmental Meter, a reliable tool equipped with both an acoustic alarm and a visual display Featuring a semi-rigid 40 cm (157 inches) hose, this device offers customizable sensitivity levels, beginning leak detection at concentrations of less than 5 ppm With a hydrogen-selective sensor, it can detect even the tiniest leaks with minimal flow rates Once activated, the meter captures the current hydrogen concentration and focuses on any fluctuations from this baseline value.

For enhanced leak localization, its reset function recalibrates the base value during detection Users can select from three sensitivity modes, indicated by LED lights in high, medium, and low settings, allowing for precise monitoring, as low as 5 ppm Powered by four standard batteries, the meter provides approximately 12 hours of operational time and features an automatic shutdown function after ten minutes to help conserve energy.

Please note, this device is not suitable for use in potentially explosive environments or where higher concentrations of hazardous gases may be present.

Features and Benefits:

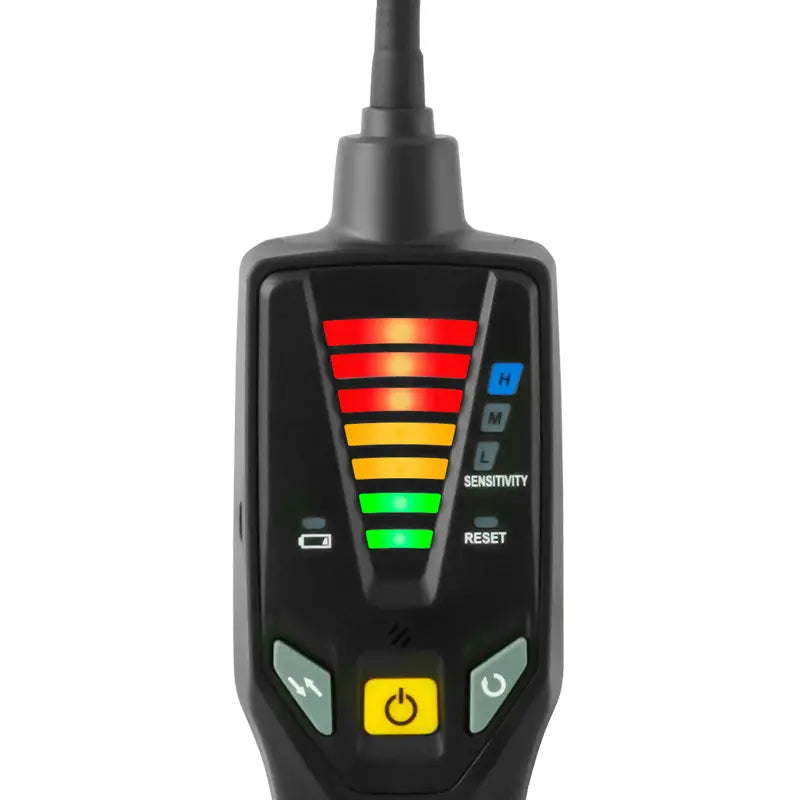

    •Bar display with traffic light function.

    •Three adjustable sensitivities.

    •Battery life of approx. 12 hours.

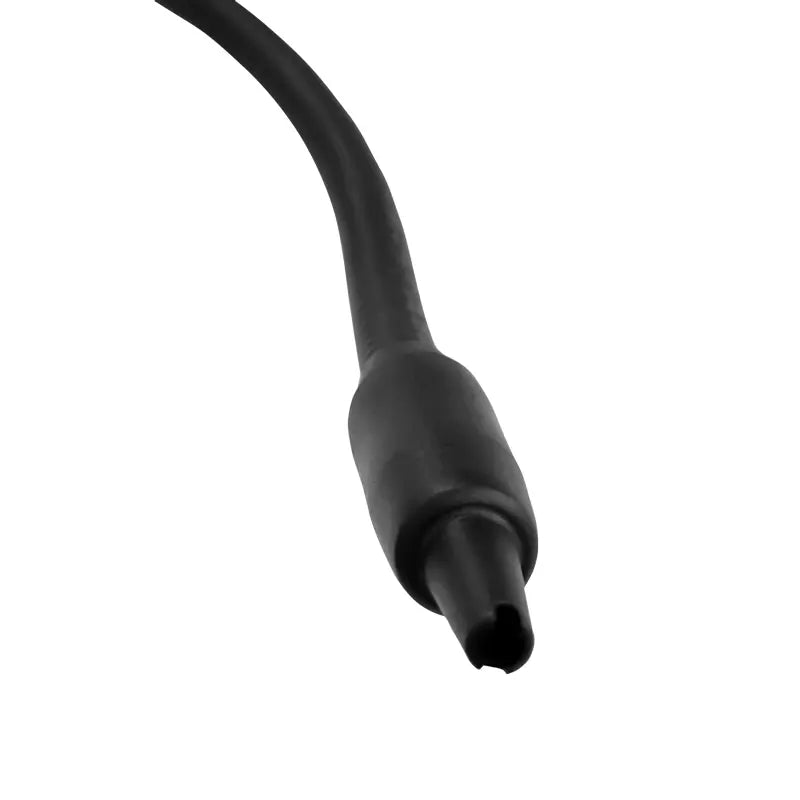

    •Semi-rigid probe measuring 40 cm (15.7 inches).

    •Audible and visual alarm.

    •Automatic shutdown.

Specifications:

 High sensitivity >2 g (0.07 oz) / year
 Average sensitivity >15 g (0.53 oz) / year
 Low sensitivity >30 g (1.05 oz) / year
 Alarm audible and visual
 Warm-up time 45 seconds
 Battery life approx. 12 hours
 Power supply 4 x 1.5 V AA batteries
 Automatic shutdown 10 minutes
 Maximum altitude 2000 m / 6561 ft a.s.l.
 Operating conditions 0 ... 40 °C / 32 ... 104 °F, <80 % RH, non-condensing
 Storage conditions -10 ... 60 °C / 14 ... 140 °F, <70 % RH, non-condensing
 Hose length 40 cm / 15.7 inches
 Dimensions 213 x 65.5 x 53.5 mm / 83.8 x 25.7 x 21.0 inches
