PCE-HFG 1K - Compact Hydraulic Tension Dynamometer with 27mm Ring Opening

Description:

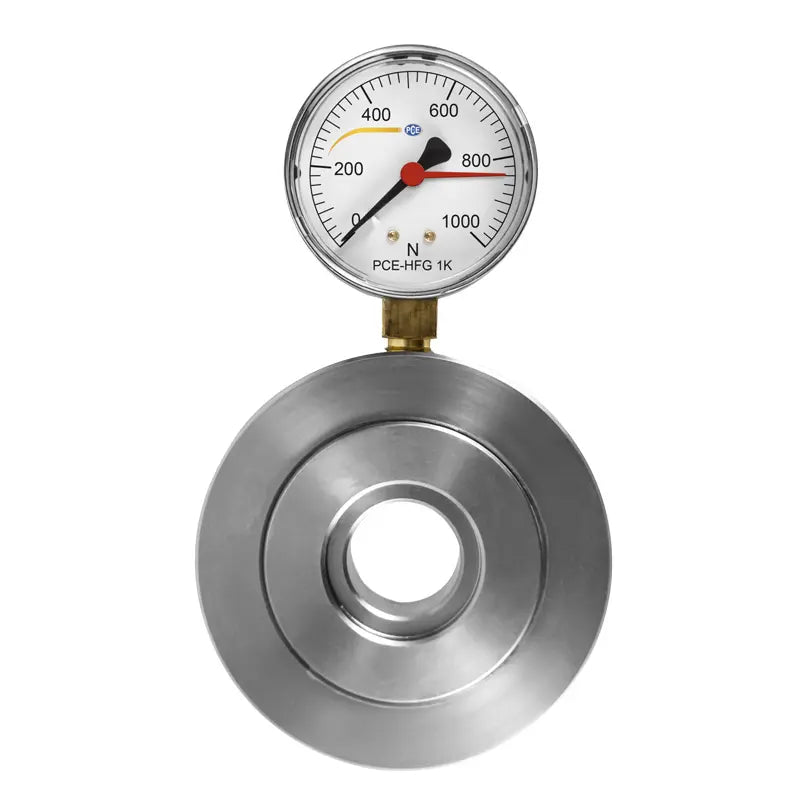

Experience precise measurement with this compact tension dynamometer, designed to fit into tight spaces It features an analog scale that displays readings in Newtons, providing accurate force measurements The useful drag pointer indicates the maximum force measured, enhancing functionality The device is equipped with a 27 mm ring opening, allowing for versatile measurements on guide rails, shafts, and bolts, making it ideal for hydraulic press applications.

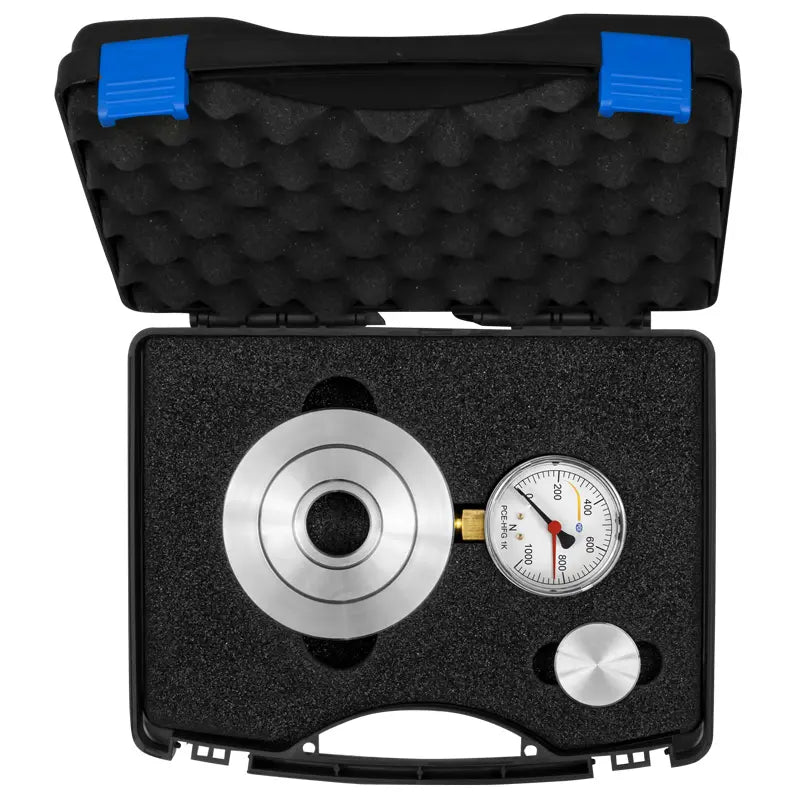

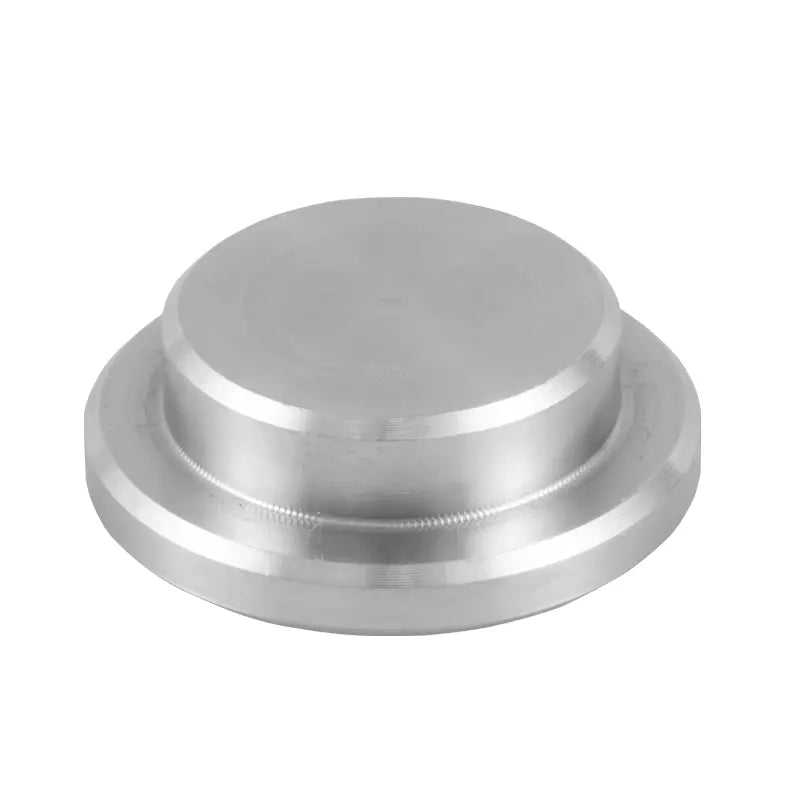

Additionally, the dynamometer can quickly transform from a ring force measuring instrument into a pressure punch force measuring device with the included punch adapter This adaptability makes it an excellent choice for maintenance and calibration tasks in industrial settings.

Features and Benefits:

•Stainless steel force gauge.

•Measurement of static compressive forces.

•Ring force transducer and pressure adapter.

•Screw mount for axial assembly.

•Integrated drag pointer.

•Pressure force display in Newton [N].

•Maintenance measurements and adjustment work on industrial machines.

Specifications:
