Description:

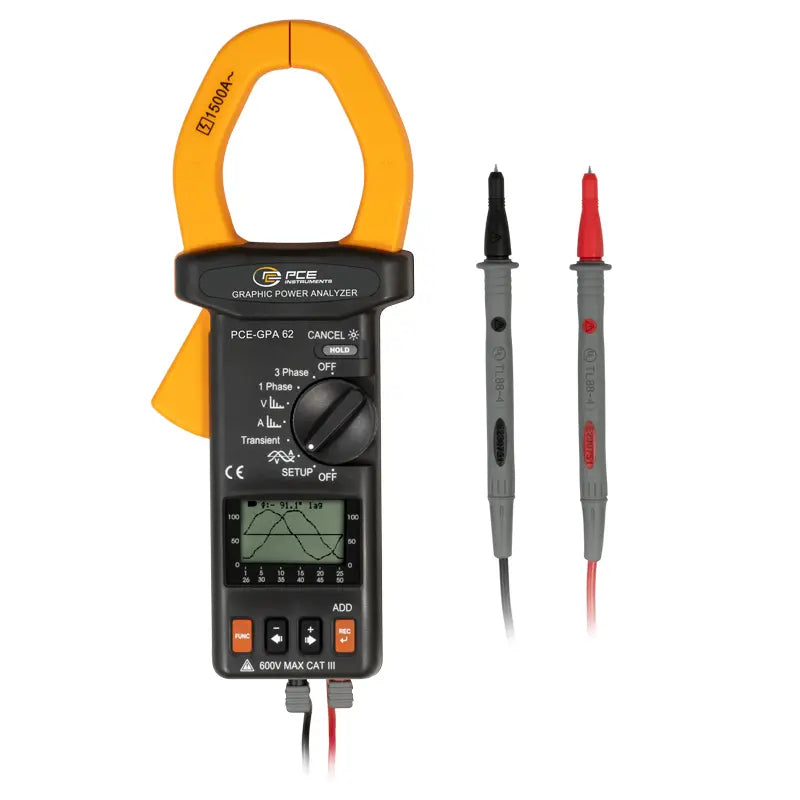

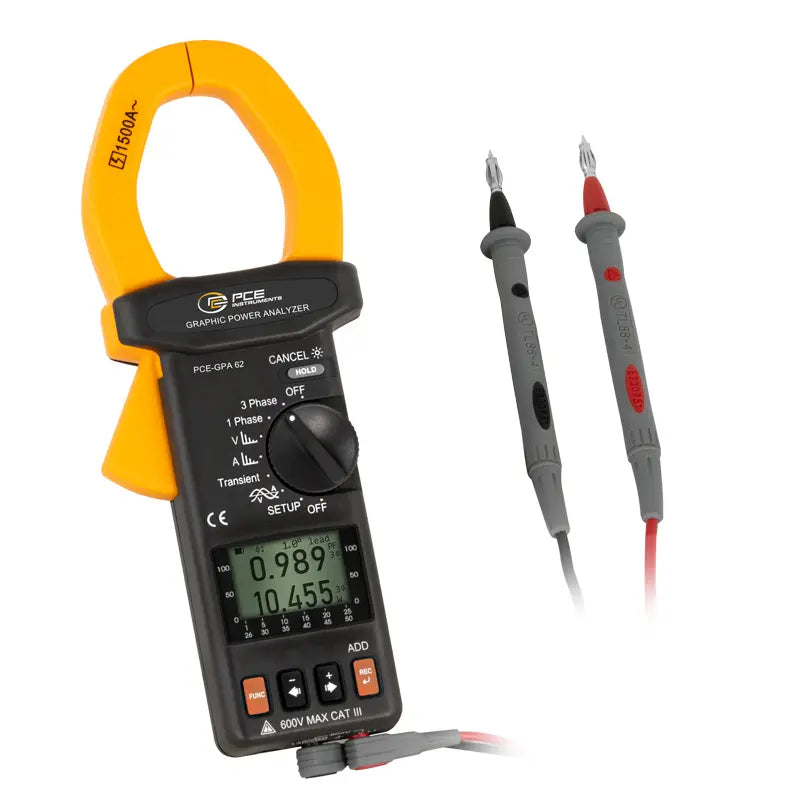

Introducing the PCE-GPA 62 Power Meter, a sophisticated network analyzer designed for accurate power and energy measurement in real time This device serves as a versatile tool for both single-phase and three-phase assessments, recording essential metrics such as active, reactive, and apparent power, power factor, phase angle, energy consumption, voltage, current, and harmonic distortion up to the 50th harmonic.

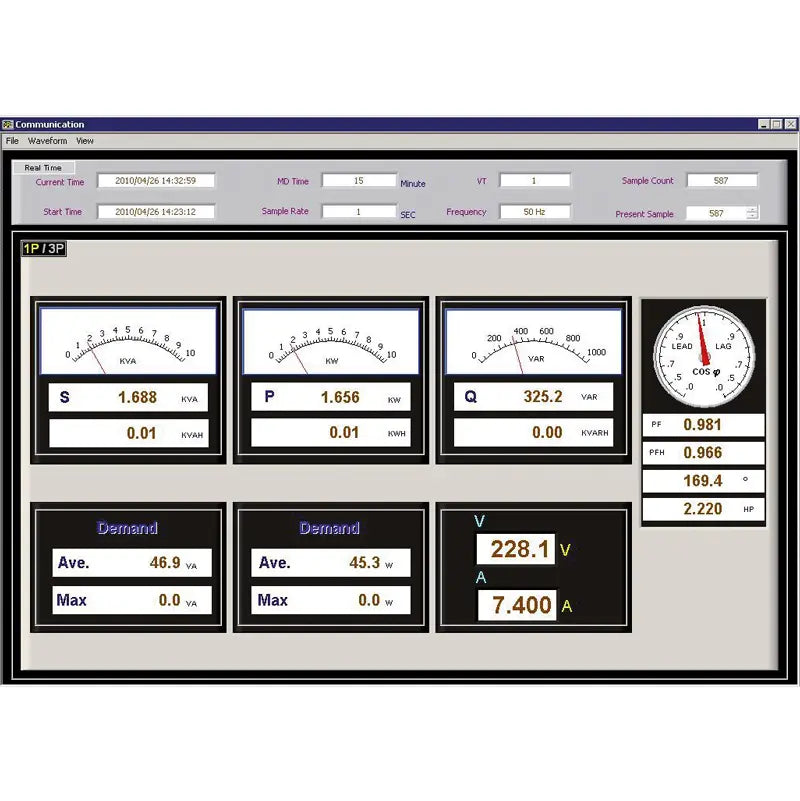

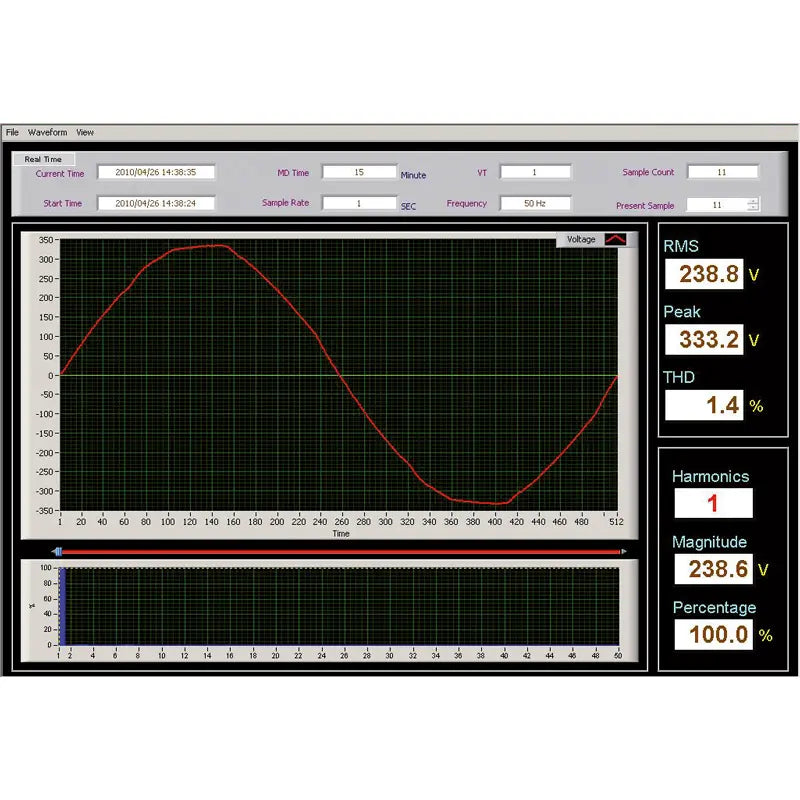

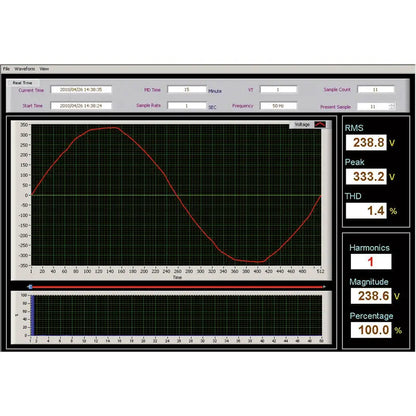

Equipped with a vibrant graphic display, the PCE-GPA 62 allows users to easily visualize network values It offers the functionality to log data and transfer findings to a PC for in-depth analysis, making it a comprehensive resource for professionals The handheld design ensures portability without sacrificing performance
Thanks to its backlit display, readings are clear and precise, even in low-light environments.
Although factory-calibrated for immediate use, the option to order an additional laboratory calibration service with an ISO-compliant certificate is available, ideal for annual recalibration needs The PCE-GPA 62 is a reliable instrument for those seeking detailed insights into power quality measurements.
Features and Benefits:
•Real-time test, register and measurement of voltage and current (real effective).
•Measures power factor and phase angle, frequency, energy, active, reactive and apparent power (single-phase or three-phase in symmetrical networks).
•Max. conductor diameter: 55 mm / 2.2 in.
•Graphic display.
•Auto shut-off after 15 min. (this function may be disabled).
•Optional ISO calibration.
Specifications:
| Voltage measurement | 4.0 ... 600.0 V RMS value ± 0.5% of the measured value ± 5 digits / 0.1 V |
| Voltage peaks (> 10V) | 50 Hz - 60 Hz / ± 5% ± 50 digits |
| Current measurements | 4.0 ... 1500.0 A real ± 1% V ± 5 digits / 0.01 A |
| Current peaks (> 20A) | 50 Hz - 60 Hz / ± 5% ± 50 digits |
| Active power P | 10 W ... 9999 kW in 5 measurement ranges ± 1% of the value + 20 digits (>20 V y >20 A) |
| Apparent power S | 10 VA ... 9999 kVA in 5 measurement ranges ± 1% of the value + 20 digits (>20 V y >20 A) |
| Reactive power Q | 10 VAr ... 9999 kVAr in 5 measurements ranges ± 1% of the value + 20 digits (>20 V y >20 A) |
| PF power factor | 0.000 ... 1.000 ± 0.04 (>20 V >20 A) / 0,001 |
| Phase angle | -180 ... +180 / ±1 / 0,1 |
| Frequency measurement | 46 ... 65 Hz ±0.3 Hz / 0.1 Hz |
| Active energy | 0 ... 999.999 kWh ± 1% of the value + 20 digits |
| Apparent energy | 0 ... 999.999 kVAh ± 1% of the value + 20 digits |
| Reactive energy | 0 ... 999.999 kVarh ± 1% of the value + 20 digits |
| Harmonics in the voltage (relative) | 50 - 60 Hz > 80 V AC 1 - 20 th / ± 2% / 0.1% |
| Harmonics in the current (relative) | 50 - 60 Hz > 80 V AC 1 - 20 th / ± 2% / 0.1% |
| Total harmonic distortion (THD-F) | 0.0 - 20% / 2% / 0.1% |
| Max. clamp opening | 55 mm / 2.2 in |
| Range selection | Auto |
| Overload indication | "OL = Overload" |
| Memory | 50,000 readings |
| Interface | USB |

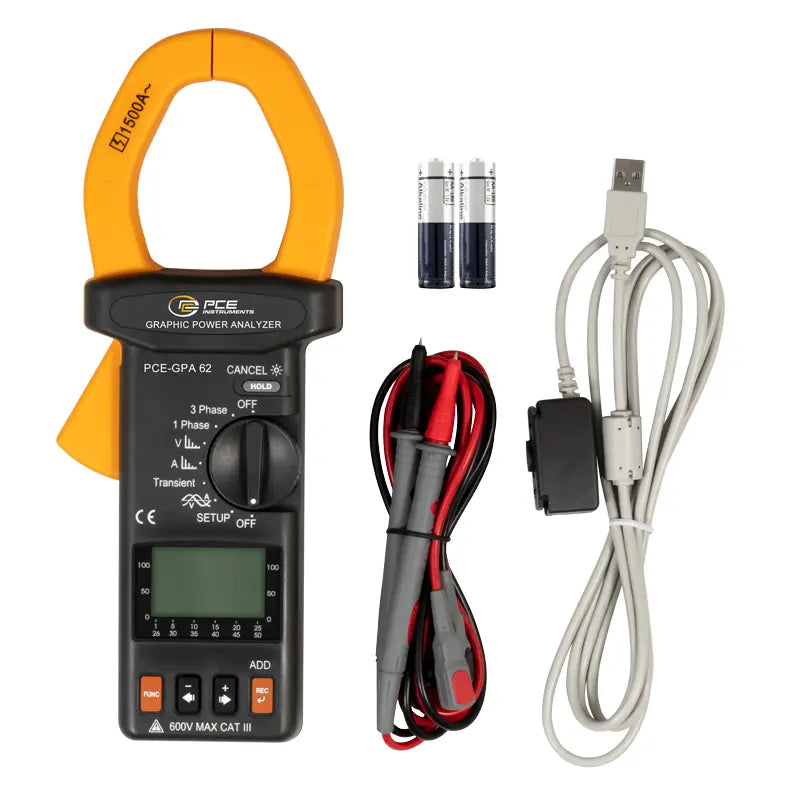

| Software and data cable | included in the delivery. They can be used with Win 2000, XP, ME |
| Display | graphic LCD display, 128 x 64 with backlight |
| Power supply | 2x 1.5V AA batteries |
| Energy consumption | Approx. 10-mA |
| Dimensions | 271 x 112 x 46 mm / 10.6 x 4.4 x 1.8 in |
| Operating conditions | 85% max. R.H. / -10 ... 50°C / 14 ... 122°F |
| Protection / Standards | CAT III 600 V / EN 61010-2-032 |
