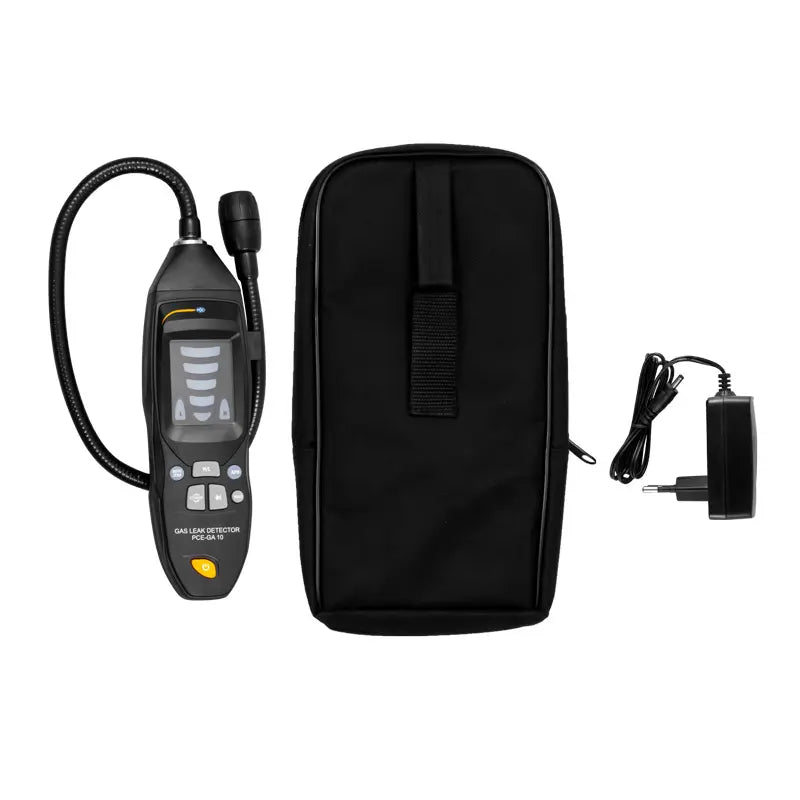

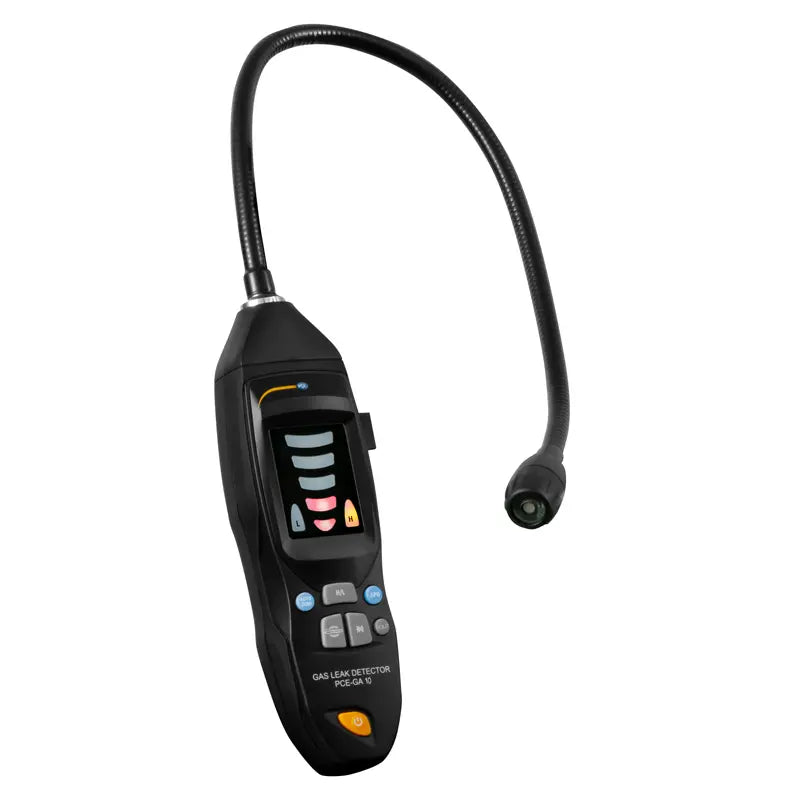

PCE-GA 10 - Gas Leak Detector with LED Display and Alarms

PCE-GA 10 - Gas Leak Detector with LED Display and Alarms

SKU: PCE-GA 10   Download PDF

Select a Variant:
  • PCE-GA 10 - Gas Leak Detector with LED Display and Alarms
Qty:
Now $222.00   Web pricing policy
BEFORE   $0.00 Now $222.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the PCE-GA 10 Environmental Meter, your reliable solution for detecting gas leaks in flammable materials This sophisticated device features a combination of visual, auditory, and tactile alarms to ensure you never miss a leak Its user-friendly LED display allows for easy operation, enabling the inspection of gas pipes and connections with confidence Equipped with five LEDs, the meter effectively indicates the intensity of gas levels.

The audible alerts and vibration notifications are particularly useful for personnel during inspections of engines, supply lines, and gas lines Powered by a rechargeable battery, this gas leak detector boasts a sensor lifespan of approximately five years, with straightforward replacement options when needed Ideal for a variety of flammable gases, the PCE-GA 10 is a must-have tool for safety in any environment.

Features and Benefits:

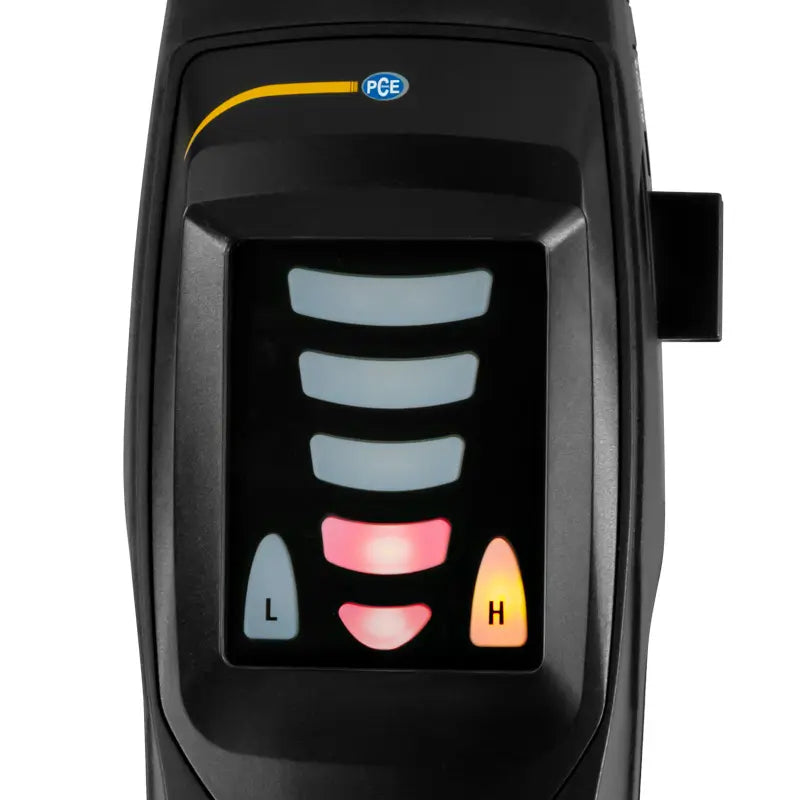

    •LED display.

    •For flammable gases.

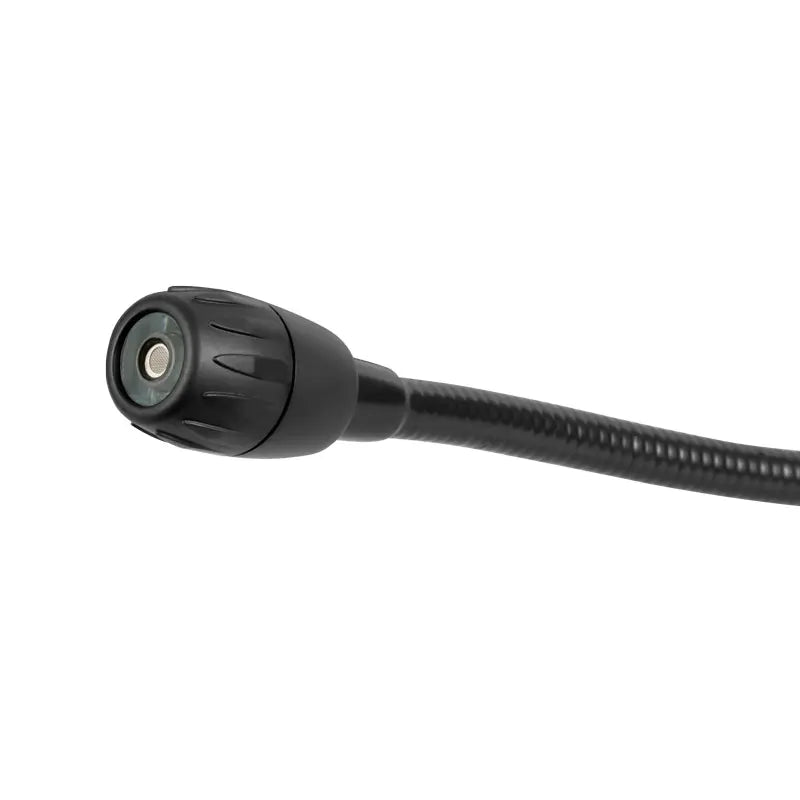

    •500 mm / 19.6" sensor.

    •Optical, acoustic, and haptic alarm.

    •Fast response time.

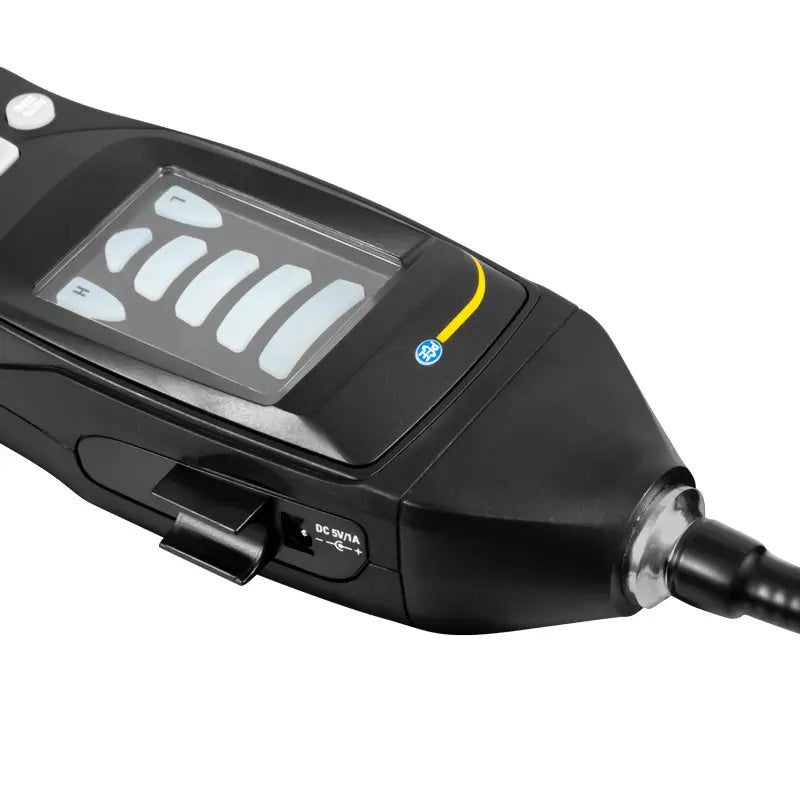

    •Rechargeable battery.

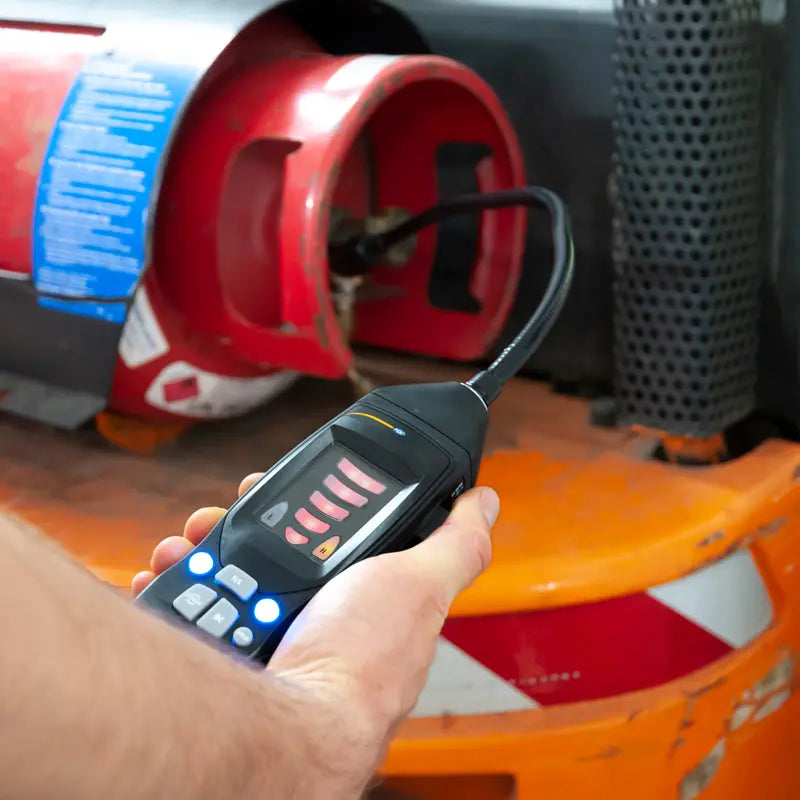

    •Detecting gas leaks in gas pipes and connections.

    •Inspecting plants on tours.

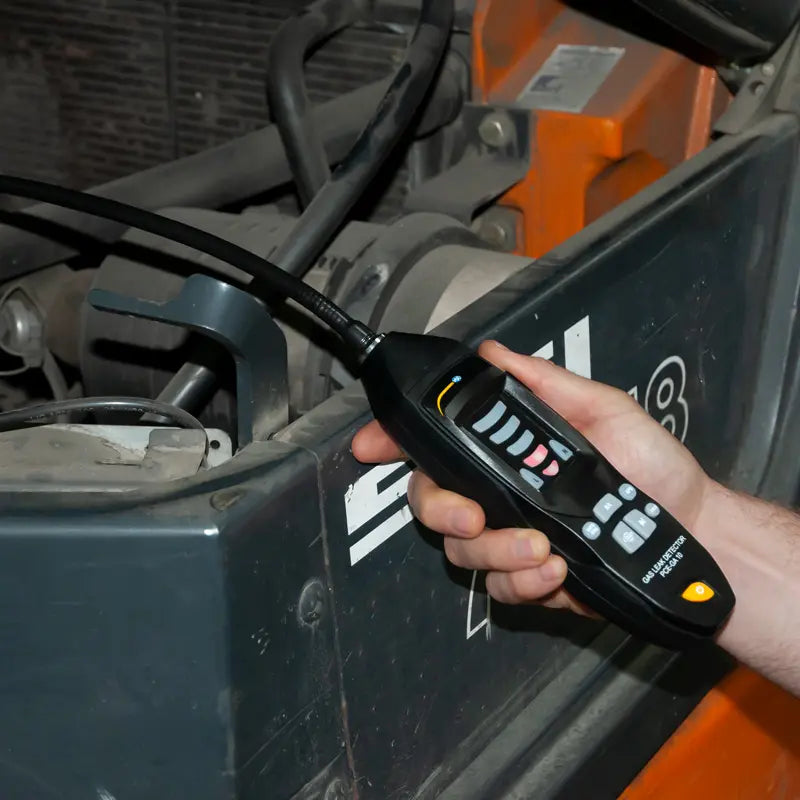

    •Checking engines, supply lines, and gas lines.

Specifications:

 Testable gases Acetaldehyde, Ammonia, Benzene, Ethane, Ethanol, Ethylene, Formaldehyde, Hexane, ISO-butane, Methane, Propane, P-xylene, Hydrogen sulfide, Toluene, Hydrogen and compounds in which these gases occur
 Measuring range (methane) 0 ... 10000 ppm
 Sensitivity (methane) < 50 ppm
 Display stages High: 100 / 400 / 700 / 1000 ppm; Low: 1000 / 4000 / 7000 / 10000 ppm
 Response time < 2 s
 Heating time ca. 50 s
 Alarm types Optical, acoustic, haptic
 Power supply 3.7V Li-ion battery
 Lifetime sensor On average, 5 years
 Sensor length 500 mm / 19.6"
 Dimensions 211 x 70 x 45 mm / 8.3 x 2.7 x 1.7 in
