PCE-G28 - Portable EMF Gauss Meter with 3-Axis Sensor

PCE-G28 - Portable EMF Gauss Meter with 3-Axis Sensor

SKU: PCE-G28   Download PDF

Select a Variant:
  • PCE-G28 - Portable EMF Gauss Meter with 3-Axis Sensor
Qty:
Now $380.00   Web pricing policy
BEFORE   $0.00 Now $380.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

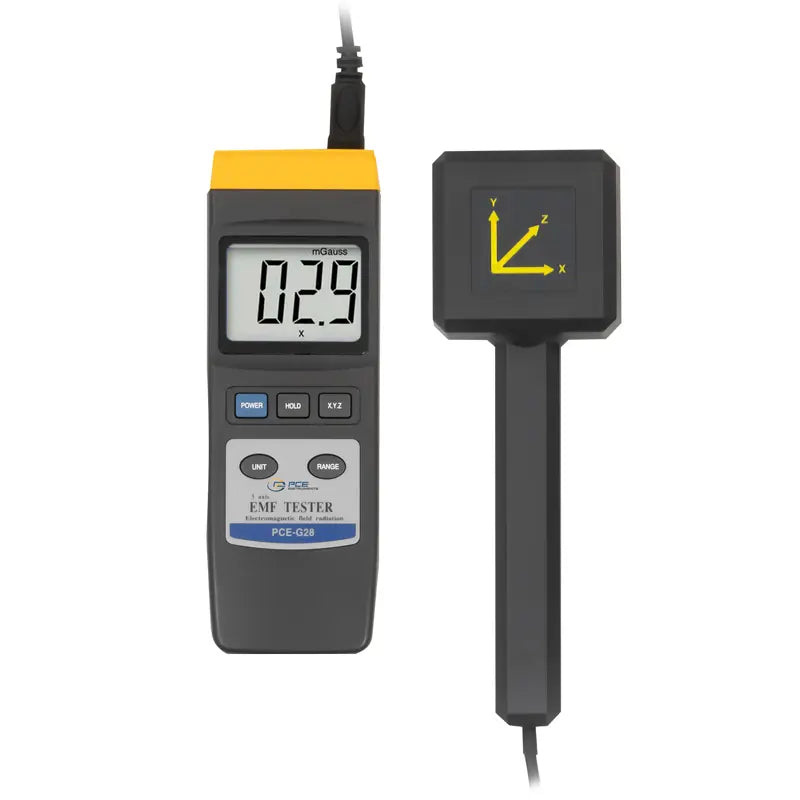

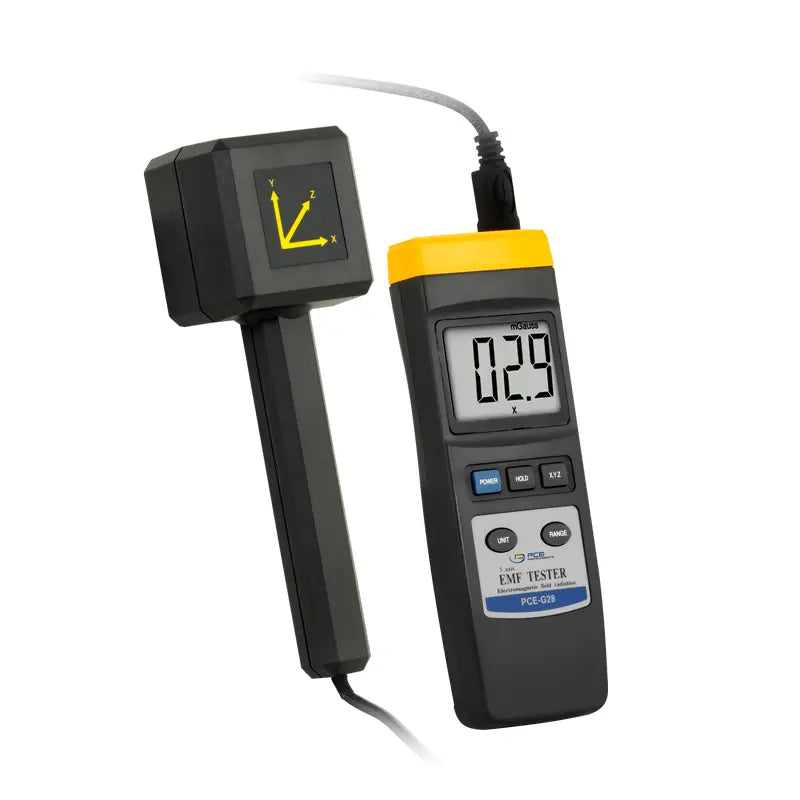

Introducing the PCE-G28, a compact and portable handheld gauss meter designed specifically for detecting electromagnetic fields (EMFs) This versatile device provides measurement readings in both milliGauss (mG) and microTesla (µT) Equipped with a 3-axis external electromagnetic sensor, it effectively measures fields across X, Y, and Z directions, making it an essential tool for anyone monitoring EMF radiation levels.

Features and Benefits:

    •Measurement range: 0 ... 20000 mG / 0 ... 2000 µT.

    •Accuracy: ± 4% + 3 digits / ± 5% + 3 digits / ± 10% + 5 digits.

    •Resolution: 0.1 mG / 0.01 µT.

    •Detects electromagnetic fields (EMFs) on three axes (X, Y, Z direction).

    •Displays measurement results in milliGauss (mG) or microTesla (µT).

    •Comes with an external 3-axis electromagnetic sensor.

    •Data hold functionality.

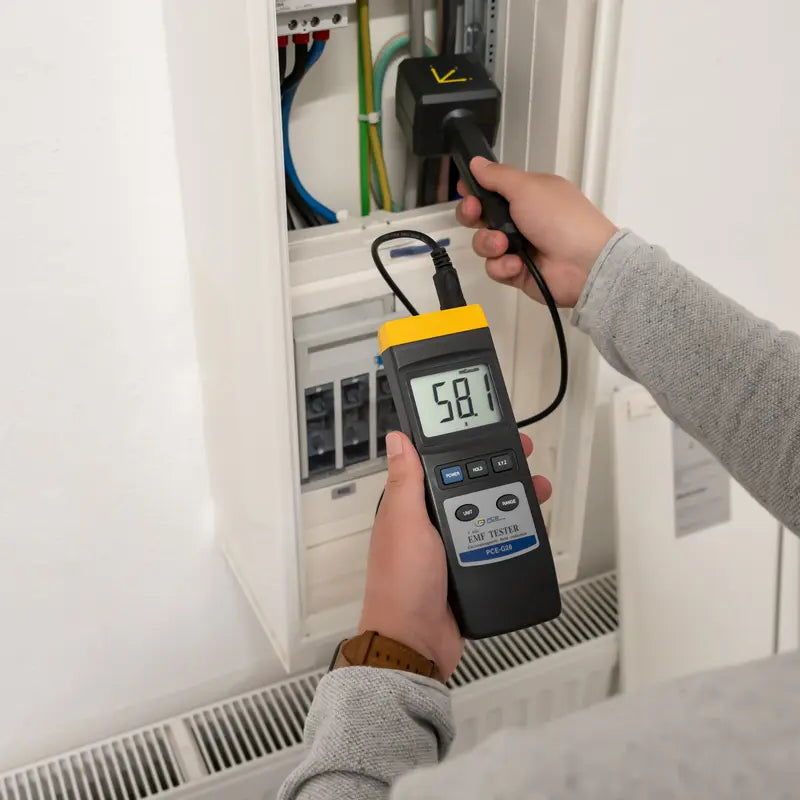

    •Ideal tool for checking transformers and measuring EMFs generated by power lines, computer monitors, electric motors and installations.

    •Meets IEC 801-1 (EN 50081-1) / IEC 204 (EN 60204) standards.

    •Measures EMFs through casings, coverings and housings, eliminating the need to dismantle parts for inspection.

Specifications:

 Measurement range microTesla 0 to 20 µT / 0 to 200 µT / 0 to 2000 µT
 Measurement range milliGauss 0 to 200 mG / 0 to 2000 mG / 0 to 20000 mG
 Resolution (per range) 0.01 µT / 0.1 µT / 1 µT, 0.1 mG / 1 mG / 10 mG
 Accuracy ±4 % + 3 digits (in range 20 µT and 200 mG)*, ±5 % + 3 digits (in range 200 µT and 2000 mG)*, ±10 % + 5 digits (in range 2000 µT and 20000 mG)*
 Sampling rate Approx. 0.4 second
 Frequency 30 ... 300 Hz
 Display LCD, 3.5 digits
 Power 1 x 9V battery
 Dimensions Meter 200 x 68 x 30 mm / 7.88 x 2.68 x 1.18 in
 Dimensions Sensor 225 x 75 x 55 mm / 8.86 x 2.95 x 2.17 in
