PCE-FD 20 - Portable Ultrasonic Defectoscope with Large LCD Display

SKU: SKU: PCE-FD 20 Download PDF

Select a Variant:

PCE-FD 20 - Portable Ultrasonic Defectoscope with Large LCD Display

SET THE QTY:

Now $6,071.00 Web pricing policy

~~BEFORE $0.00~~ Now $6,071.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

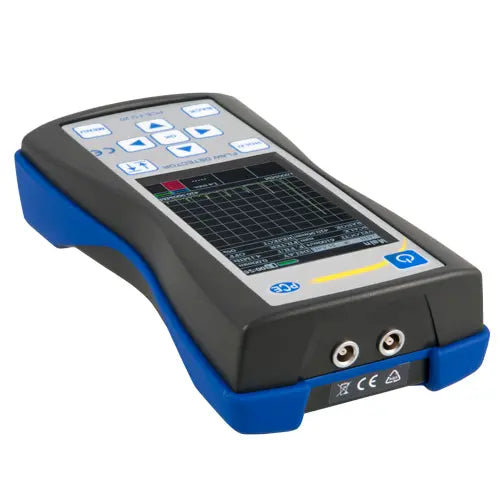

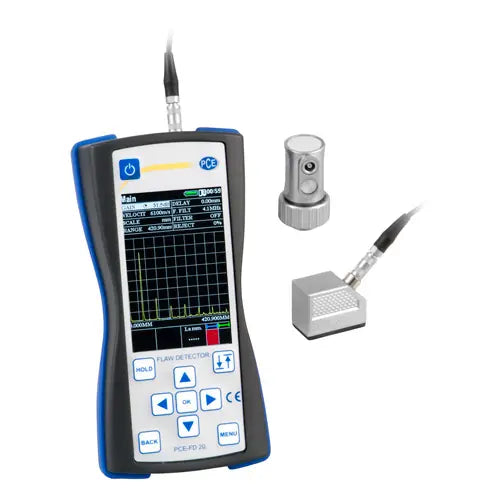

Experience precision in defect detection with the PCE-FD 20, a compact ultrasonic defectoscope designed for versatility Featuring a spacious LCD screen, it presents clear A-scan visuals of ultrasonic signals alongside B-scan cross sections, making it perfect for mechanical engineering, aerospace, and metallurgy applications This advanced device operates on high-frequency ultrasound and comes equipped with two contact transducers (45° and 90°) to accurately assess material thickness, as well as to pinpoint flaws and discontinuities in welds.

Features and Benefits:

•Operating frequency range: 1 ... 10 MHz.

•Measured time interval range: 6 ... 1000 microseconds (µs).

•Sound velocity: 1000 ... 9999 m/s.

•Implements shadow, echo and mirror-shadow testing methods.

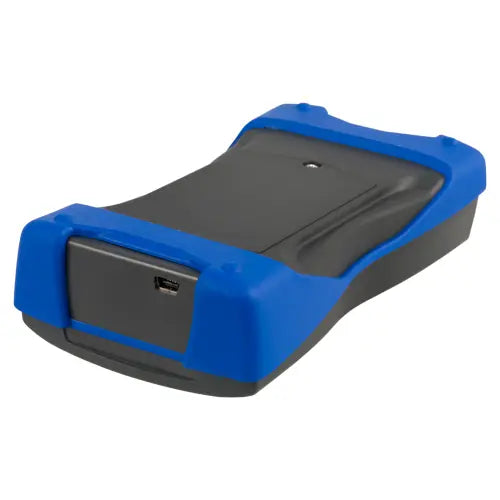

•Features a USB interface for downloading data to PC for detailed analysis.

•Lightweight.

•Battery or electric power.

•1.5 m long probe cable.

•Mechanical engineering.

•Aerospace.

•Metallurgical applications.

Specifications:

Operating frequency range	1 ... 10 MHz
Measure time interval range (scan duration)	6 ... 1000 microseconds (µs)
Sound velocity range	1000 ... 9999 m/s
Deviation of measurement of time intervals	Not exceed ± 0.025 µs
Max. deviation of amplitude of signals at receiver input in 0 ... 110 dB range	Not exceed ± 0.5 dB
Testing gain region	125 dB
Averaging over the quantity of starts	1 ... 16
Range of time-variable gain (TVG) / Number of control points TVG	40 dB / 15
Duration of excitation pulse to load	0 ... 0.5 µs
Amplitude of excitation pulse to 50 Ohm load, not less	100, 200, 300
Operating frequency range of receiver at -3 dB	1 ... 10 MHz
Deviation of amplitudes of input signals in 10 ... 100% range of screen height	Not more than 1 dB
Scanning	1 ... 1000 µs
Scanning delay	0 ... 2000 µs
Measurement range of time intervals	0 ... 1000 µs
Prism of probe delay	0 ... 15 µs
Automatic signaling of defects (AFS)	Dual-gate
Setting range of AFS gates	0 ... 2000 µs
Adjusting thresholds of AFS gates	0 ... 100%
Detection of signals (receiver)	Positive half-wave, radio mode
Dimensions of device (approx.)	80 x 162 x 35 mm / 3.14 x 6.37 x 1.37"
Dimensions display (approx.)	48 x 74 mm / 1.88 x 2.91"
Power supply	100 ... 250 V AC or 3 x 1.5 V AA batteries
