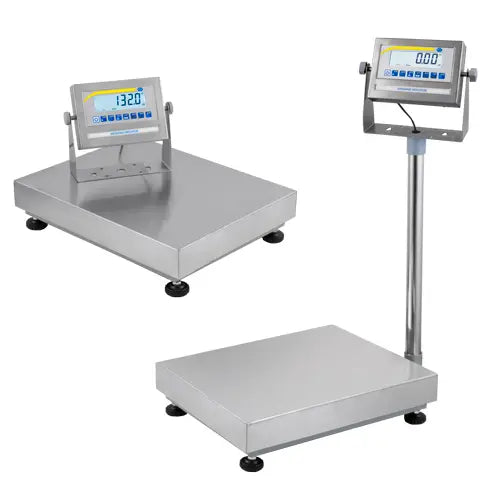

PCE-EP 30P2 - 500x600 mm Lab Scale with Tripod & RS232 Interface

PCE-EP 30P2 - 500x600 mm Lab Scale with Tripod & RS232 Interface

SKU: SKU: PCE-EP 30P2   Download PDF

Select a Variant:
  • PCE-EP 30P2 - 500x600 mm Lab Scale with Tripod & RS232 Interface
Qty:
Regular price Now $482.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $482.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of this durable laboratory balance, engineered for various weighing tasks It includes a detachable tripod and offers multiple useful functions such as counting, summing, gross/net weighing, limit weighing, and PEAK Hold The balance is equipped with a filter for dynamic weighings and supports container weighing Its bidirectional RS232 interface ensures seamless connection to PCs or printers, while the display can be easily positioned on workbenches or mounted on walls for optimal visibility.

The measuring surface has dimensions of 500 x 600 mm, making it suitable for a range of applications.

Features and Benefits:

    •Single Point platform scale with one load cell.

    •Two-range scale with 15/30 kg capacity.

    •Freely adjustable measuring unit (kg/...).

    •Bidirectional RS232 interface for communication.

    •Operates on battery or mains power.

    •Display protected with IP54 rating.

    •Includes tripod with removable mount.

    •Hold function to freeze weight display.

    •PEAK/MAX weighing function for accurate measurements.

    •Sum function and piece counting capabilities.

    •Animal weighing feature.

    •Limit weighing function for MIN / OK / MAX.

    •Container weighing capability and filter function.

    •Ideal for laboratory environments requiring precise measurements.

    •Suitable for dynamic weighing applications.

    •Applicable in industrial and research settings.

Specifications:

 Measuring range Max. 1 = 15 kg / Max. 2 = 30 kg
 Resolution up to 15 kg = 2 g, from 15 kg to 30 kg = 5 g
 Measurement uncertainty ± 3 d (three times the resolution)
 Platform size 500 x 600 mm
 Tare function Over the entire weighing range
 Interface RS-232 Bidirectional / D-SUB 9 Female
 Optional Analog output 4-20 mA 1/1000 and 4 Potential-free outputs (LO / OK / HI / Stable)

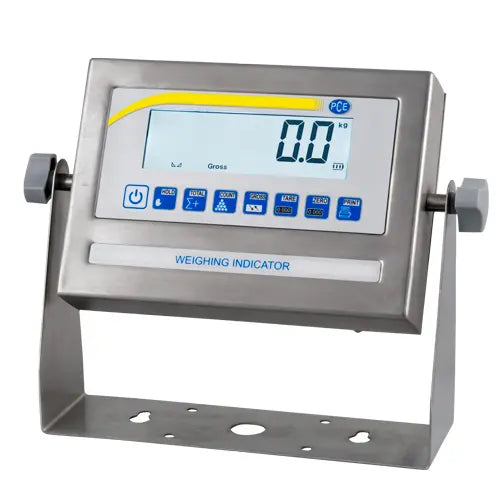

 Display LCD with 25 mm digit height
 Units kg / lb and freely adjustable
 Cable length to display approximately 160 cm with plug attached
 Power supply 6V / 4.5Ah battery or 9 V / 1.2 A power adapter included
 Power consumption 70 mA
 Protection class IP54
 Working temperature 0 ... + 40 °C / 10 ... 80 % r.H.
