PCE-EP 150P2 - High-Resolution LAB Scale with Counting Function and Tripod

PCE-EP 150P2 - High-Resolution LAB Scale with Counting Function and Tripod

SKU: SKU: PCE-EP 150P2   Download PDF

Select a Variant:
  • PCE-EP 150P2 - High-Resolution LAB Scale with Counting Function and Tripod
Qty:
Regular price Now $482.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $482.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

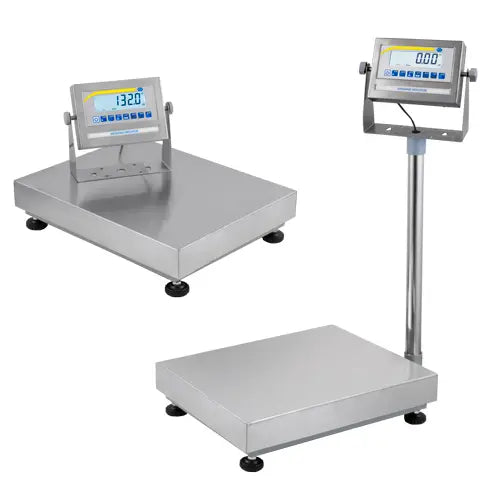

Discover the versatility of the LAB Scale PCE-EP 150P2, designed with two distinct measurement ranges for precise weighing This scale boasts a high resolution and includes features such as a counting function, sum function, and a detachable tripod for easy setup Operating on battery power, it is complemented by a container weighing capability Built for durability, the robust design allows you to disassemble the stand and tripod with ease.

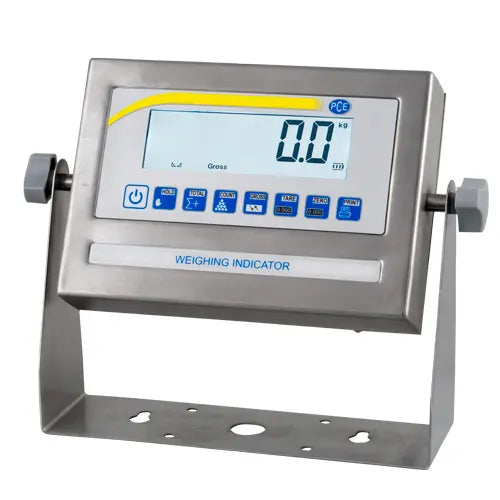

The cable connecting the platform and display extends approximately 16 meters, offering flexibility in placement The stainless steel display, which is safeguarded to IP54 standards, can be conveniently mounted on various surfaces Standard functionalities include counting, summing, gross/net weighing, limit weighing, and the PEAK Hold function, along with special filter and container weighing options.

With a bidirectional RS232 interface, connecting this scale to PCs or printers is straightforward, allowing for seamless weight inquiries from your computer For those requiring enhanced accuracy, the calibrated model is also available in the PCE-SD series.

Features and Benefits:

    •Single Point platform scale with one load cell.

    •Two-range scale with maximum weights of 60 kg and 150 kg.

    •Freely adjustable measuring units.

    •Bidirectional RS232 interface.

    •Can operate on battery or mains power.

    •Display housed in IP54 protected casing.

    •Includes a tripod and removable tripod mount.

    •Off timer feature.

    •Hold function allows freezing of weight display.

    •PEAK/MAX weighing function.

    •Sum function available.

    •Includes piece counting function.

    •Animal weighing function available.

    •Limit weighing function for MIN/OK/MAX.

    •Container weighing function.

    •Filter function for dynamic weighings.

Specifications:

 Measuring range Max. 1 60 kg
 Measuring range Max. 2 150 kg
 Resolution up to 60 kg 10 g
 Resolution from 60 kg to 150 kg 20 g
 Measurement uncertainty ± 3 d (three times the resolution)
 Platform size 500 x 600 mm
 Tare function Over the entire weighing range
 Interface RS-232 Bidirectional / D-SUB 9 Female
 Optional Analog output 4-20 mA 1/1000 +
 Optional outputs 4 Potential-free outputs LO / OK / HI / Stable set as pulse signal or continuous signal
 Display LCD with 25 mm digit height
 Units kg / lb and freely adjustable weighing units such as kg/m
 Cable length to display ca. 160 cm / plug attached
 Power supply 6V / 4.5Ah battery or 9 V / 1.2 A power adapter (incl.)
 Power consumption 70 mA
 Protection class IP54
 Working temperature 0 ... + 40 °C / 10 ... 80 % r.H.
 Dimensions see Download file 'Diagram'
